Splice Locations

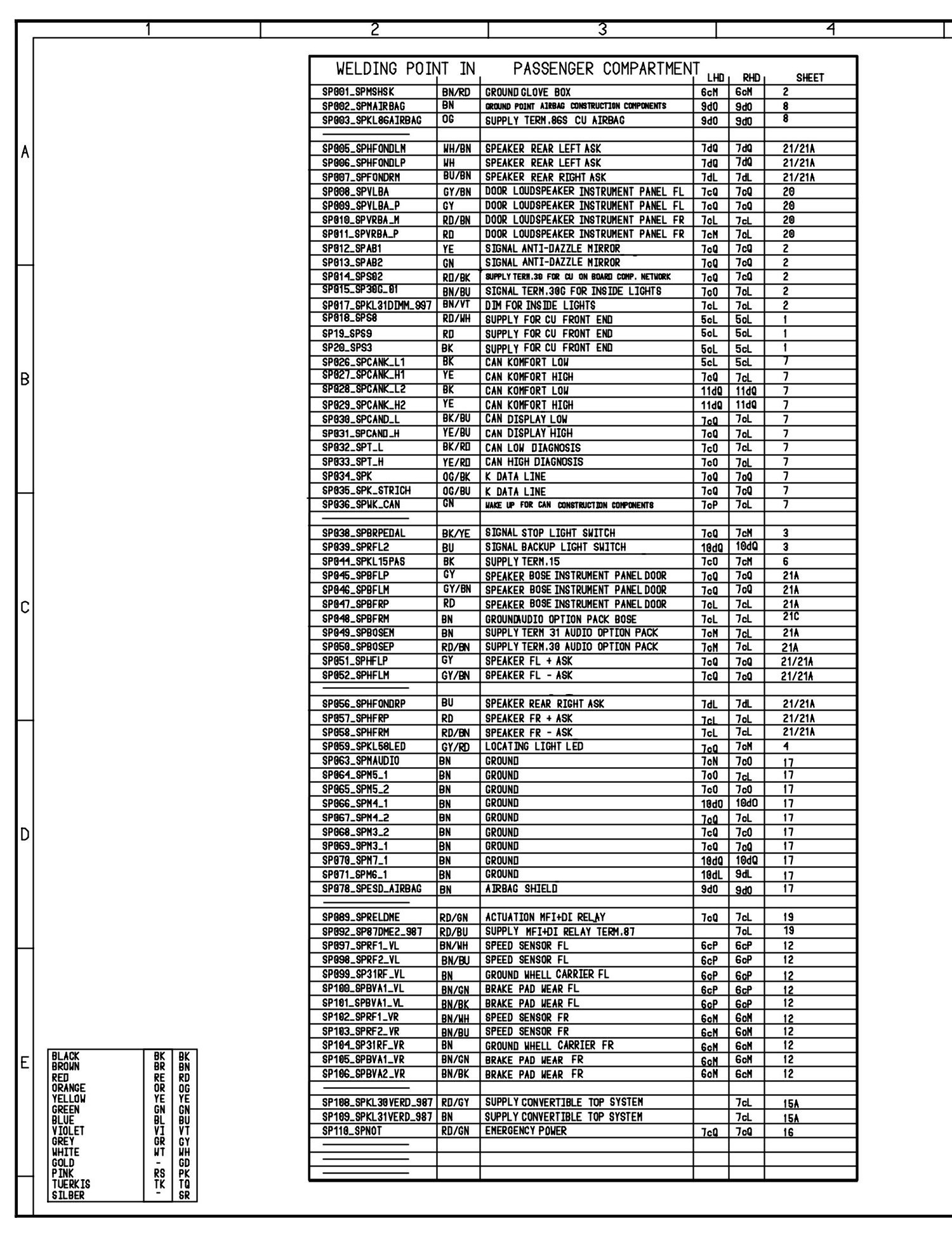

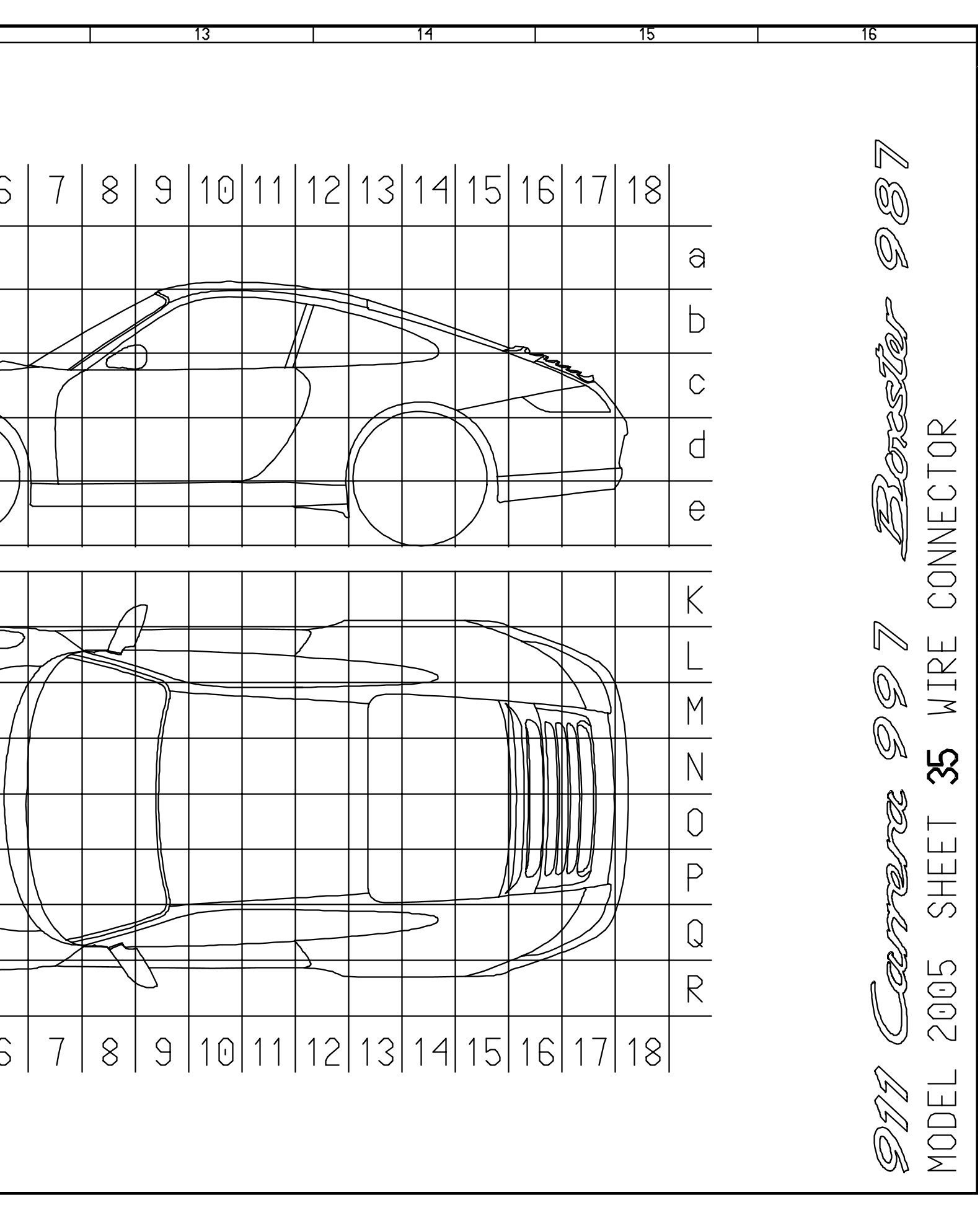

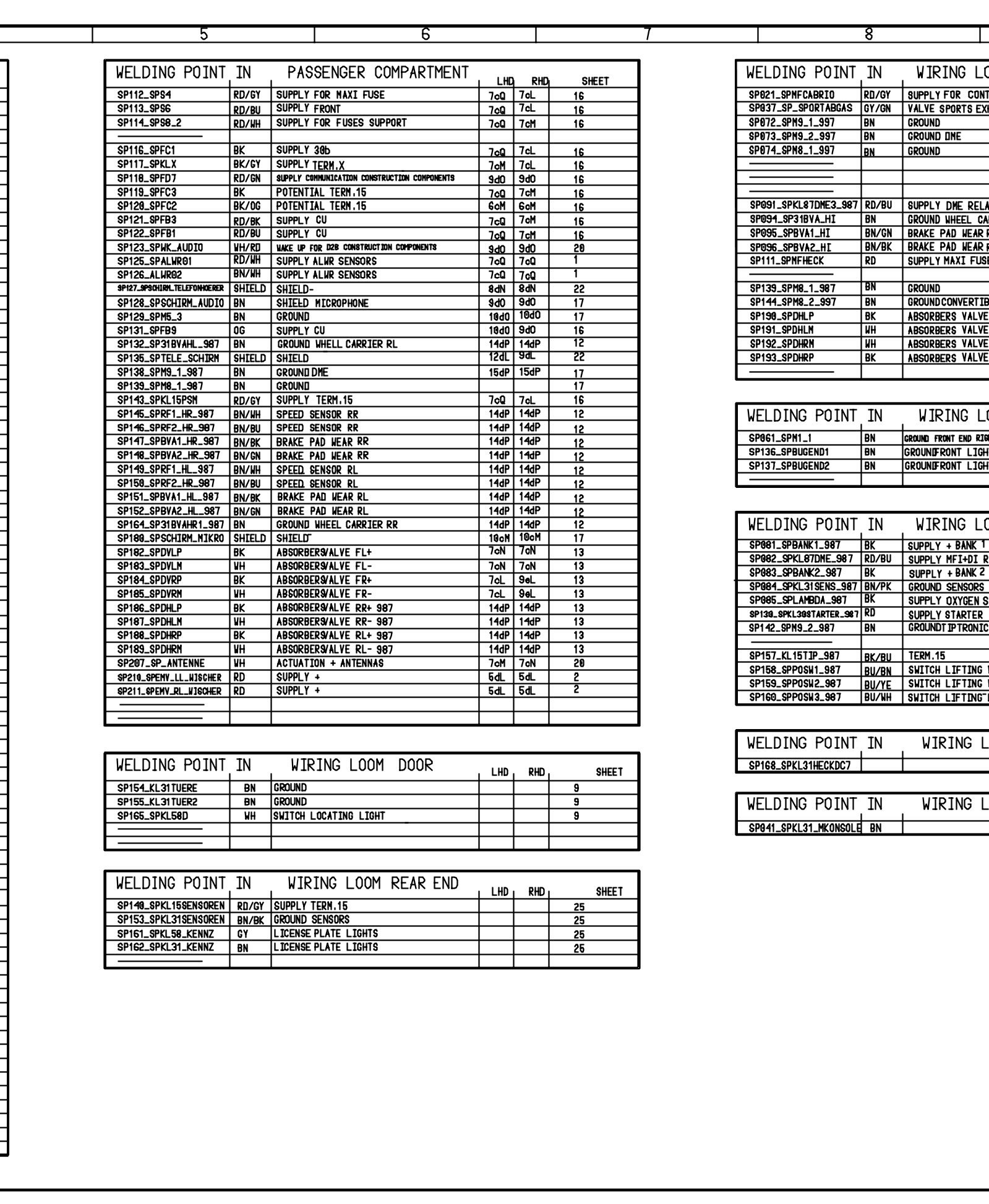

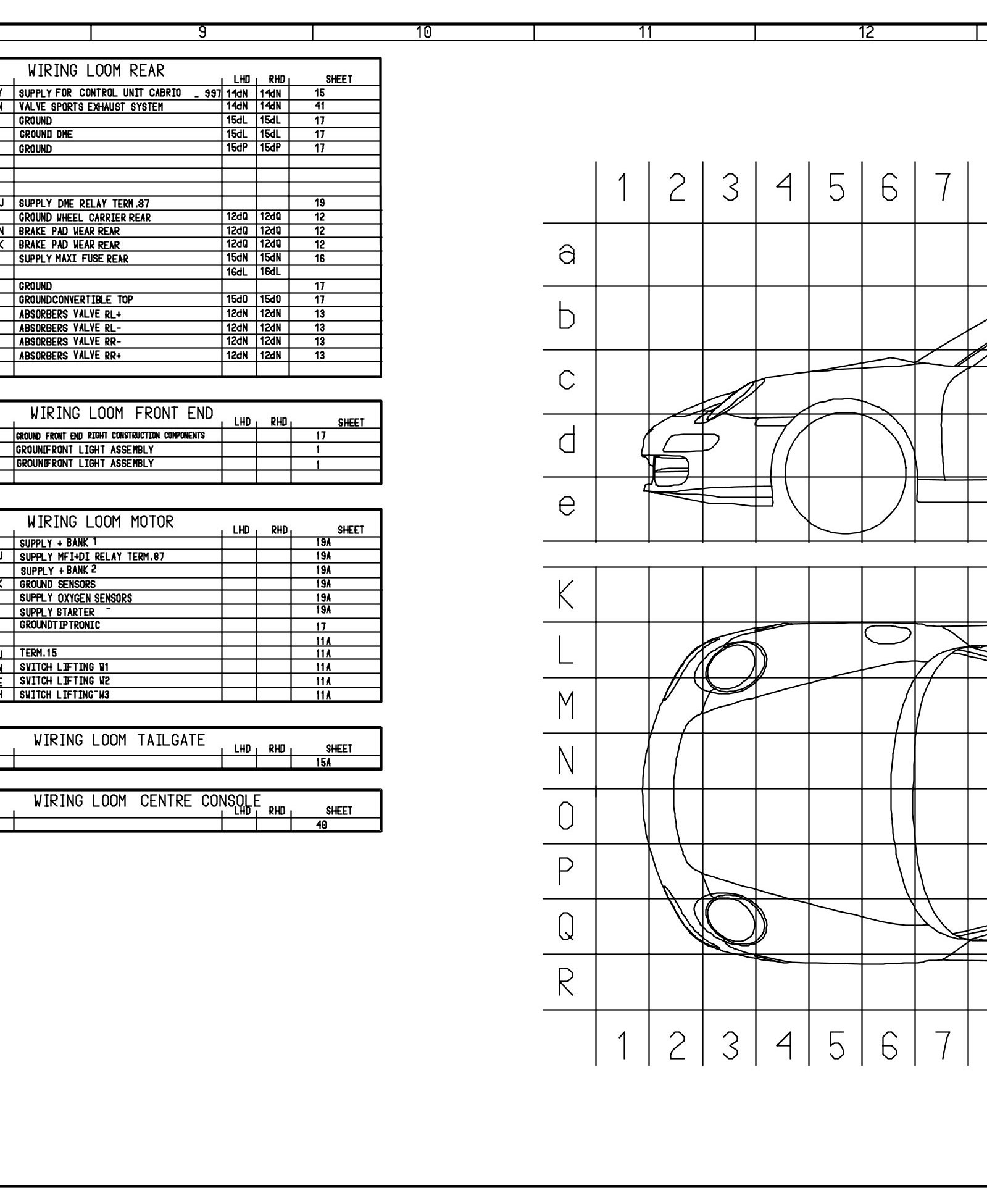

Wire Connector - Sheet 35 (Part 1):



Wire Connector - Sheet 35 (Part 2):



Wire Connector - Sheet 35 (Part 3):



Wire Connector - Sheet 35 (Part 4):
