Electrical Diagrams



CU Gateway - Sheet 7

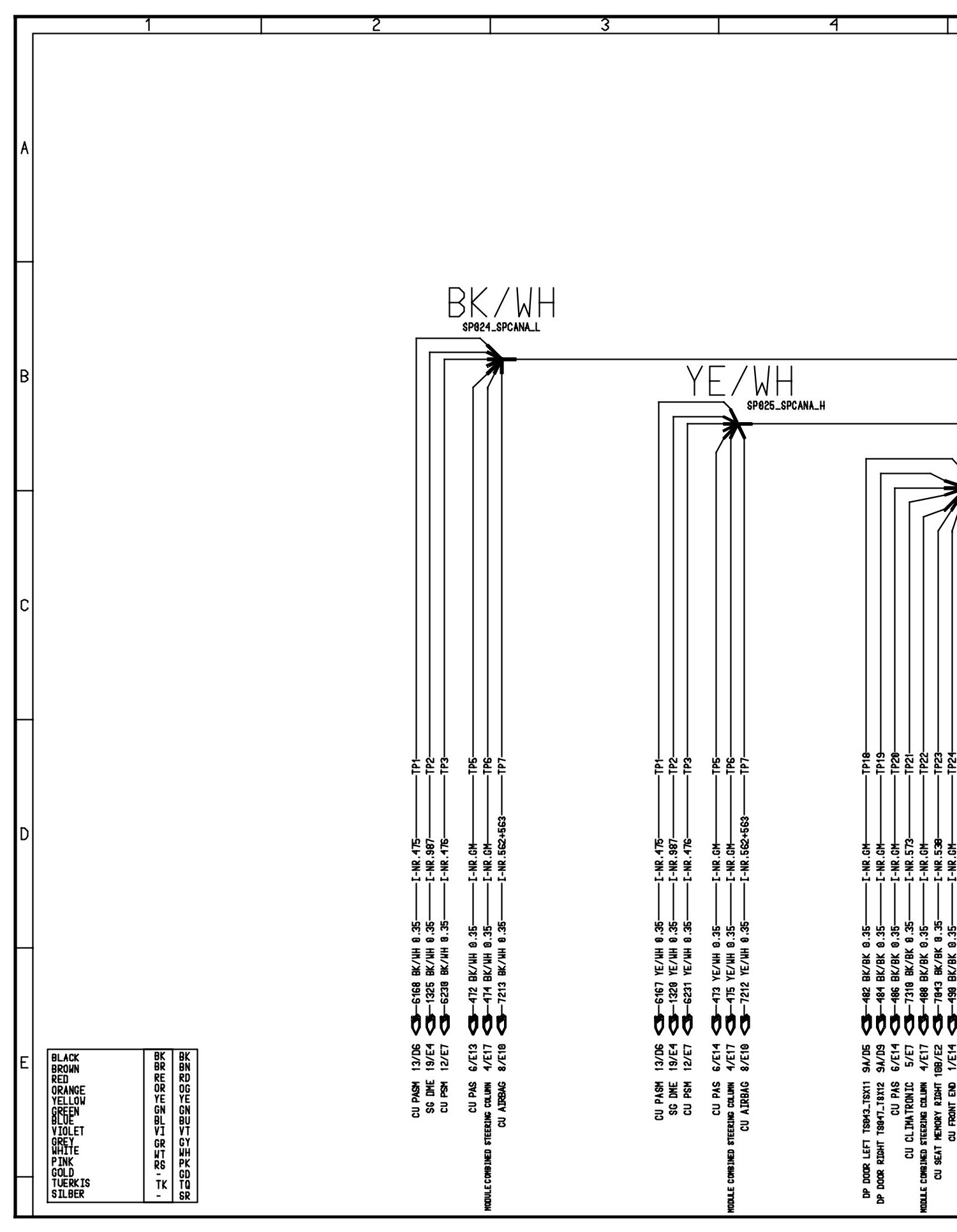

CU Gateway - Sheet 7 (Part 1):

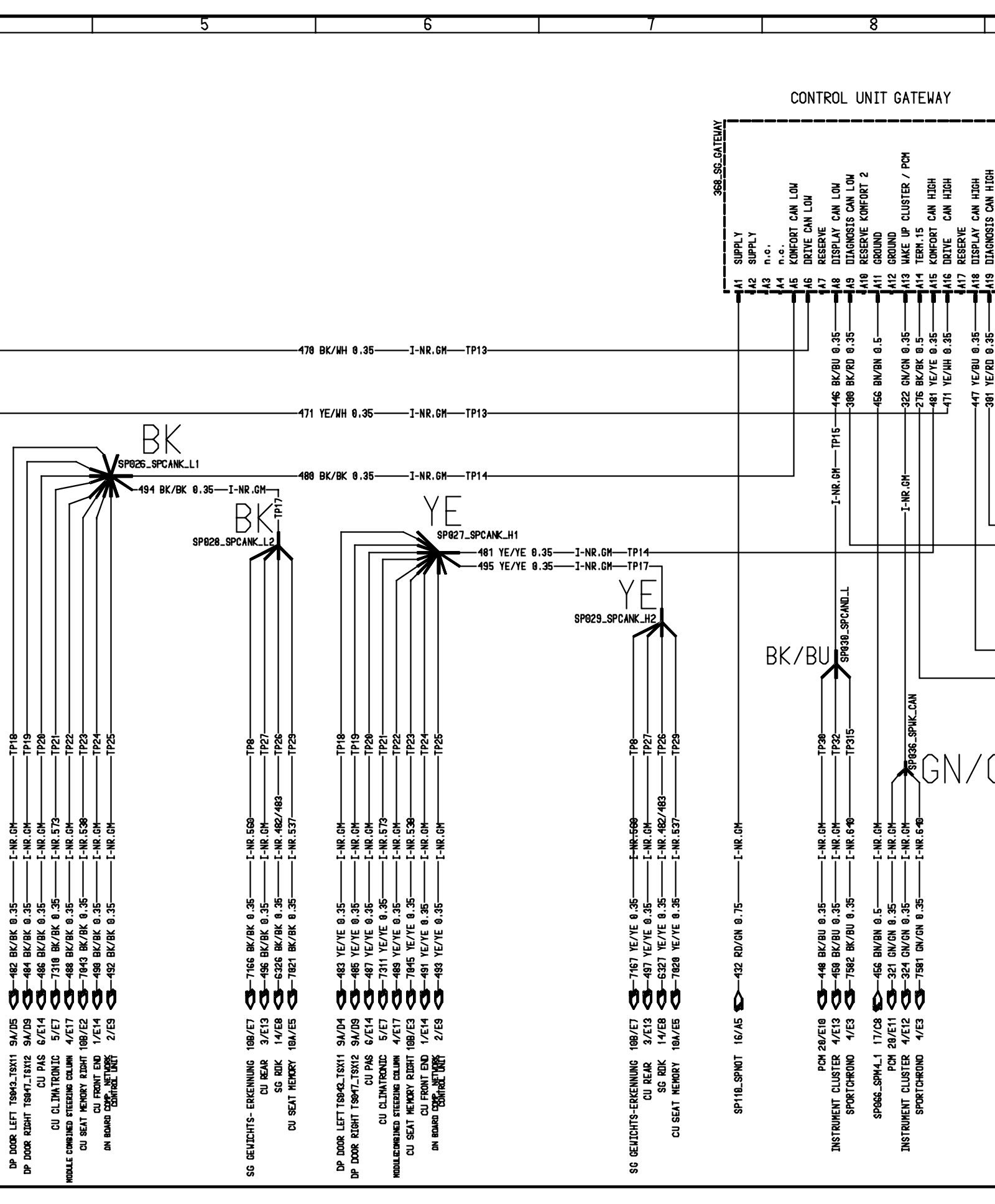

CU Gateway - Sheet 7 (Part 2):

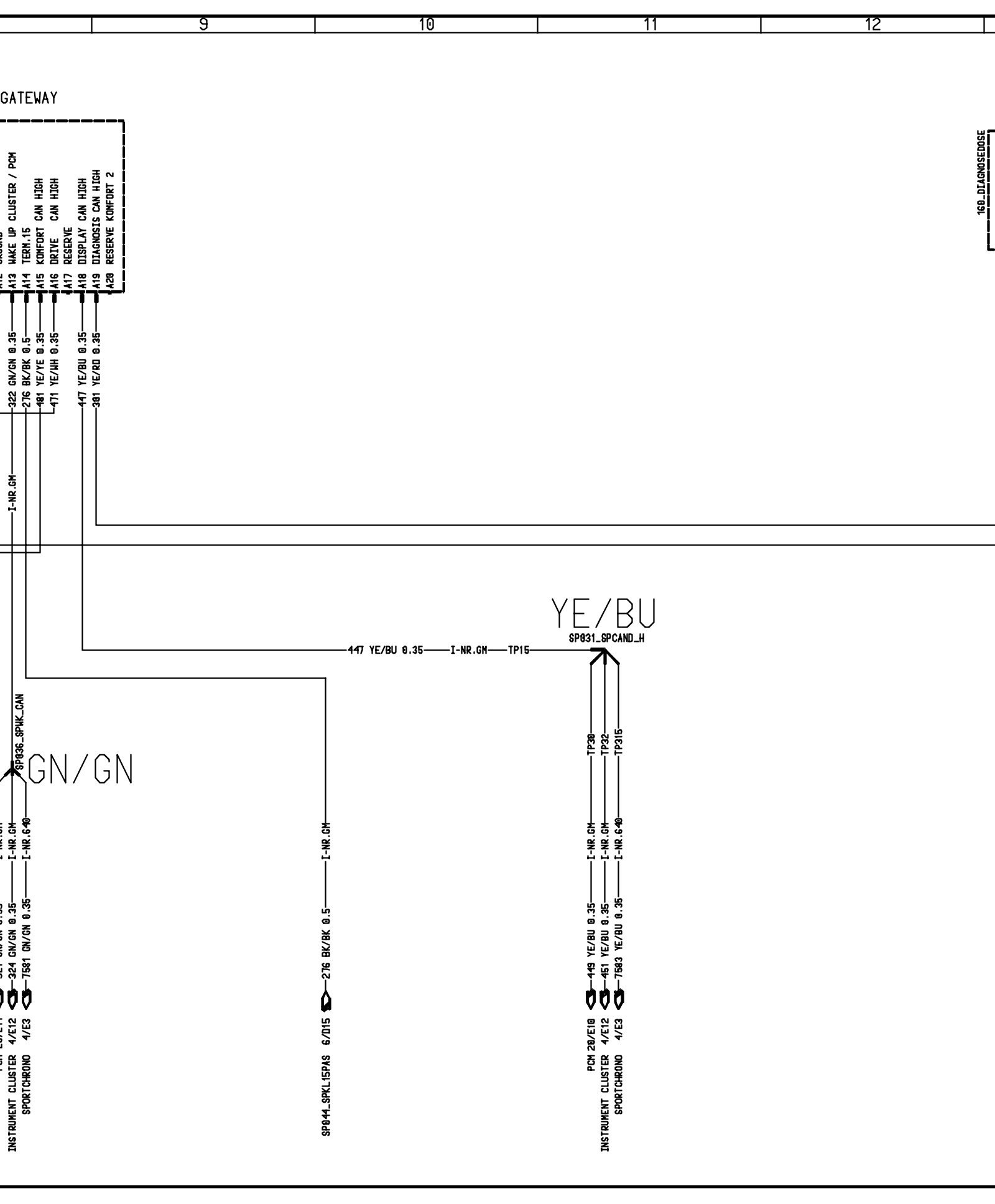

CU Gateway - Sheet 7 (Part 3):

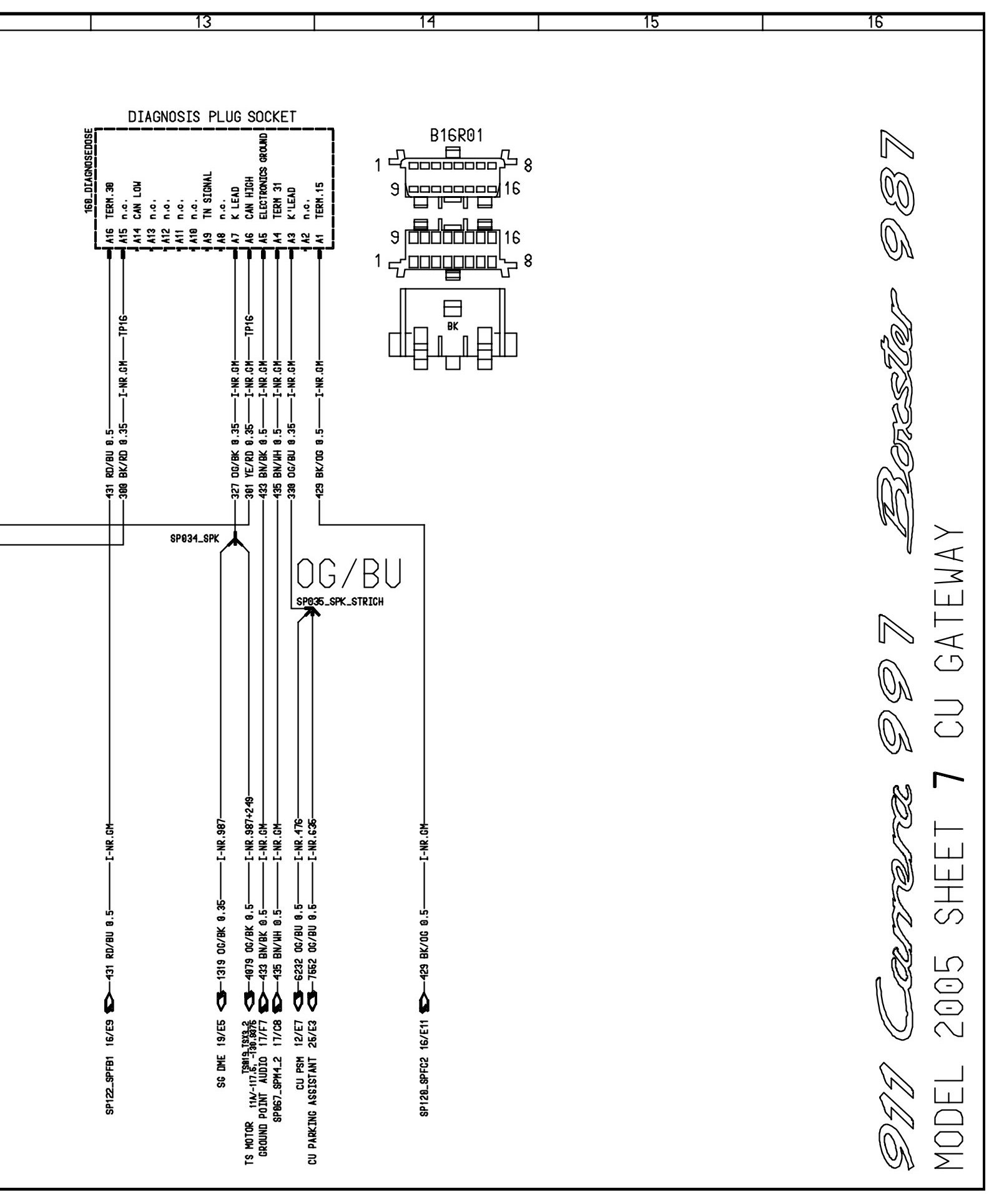

CU Gateway - Sheet 7 (Part 4):






Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
