System Specifications

Cylinder Head

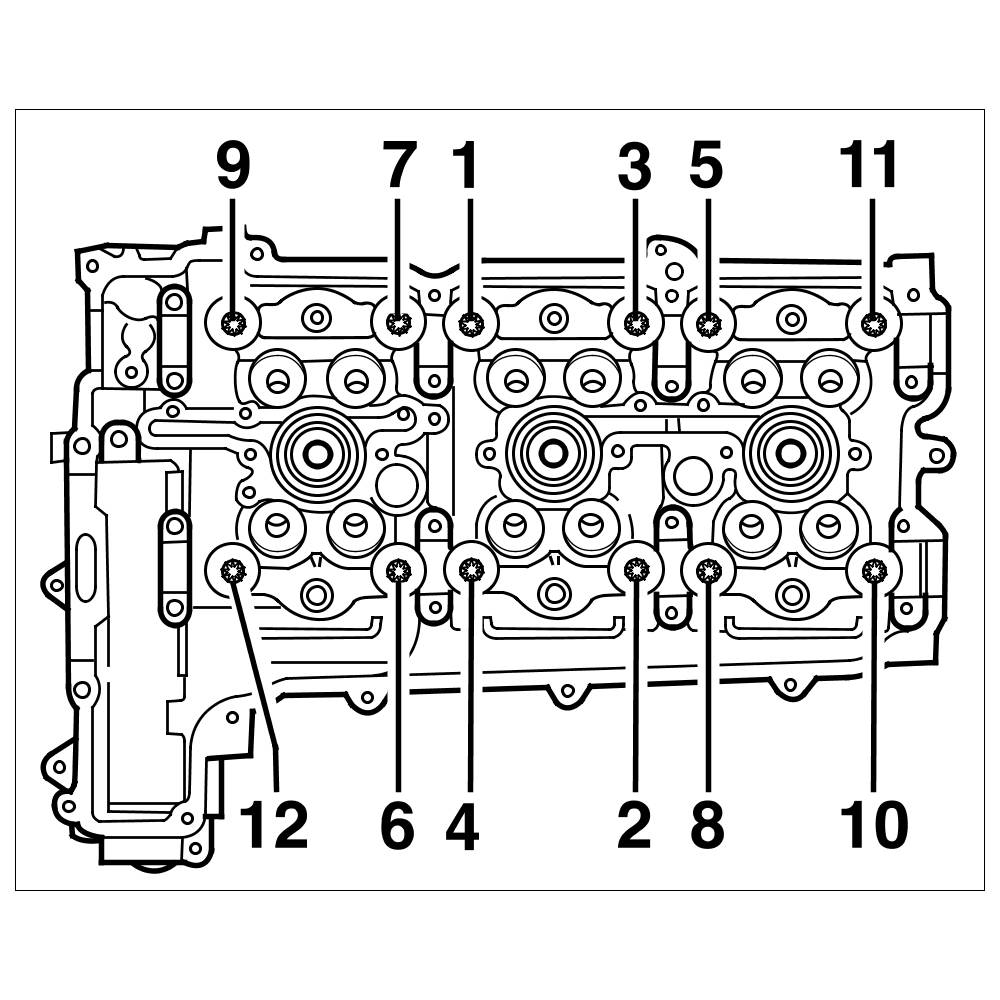

Tightening sequence for cylinder-head screws

Camshaft Bearing Cap

Tighten housing screws M6 -1 and 2-
Tightening torque: 10 Nm (7.5 ftlb.)

Tighten fastening screw M8 -3- for adjusting gauge -4-
Tightening torque: 23 Nm (17 ftlb.)

Intake Manifold Specifications

Exhaust Manifold Specifications

Camshaft Gear/Sprocket Specifications
