1001TW Technical data, engine


WM 1001TW Technical data, engine

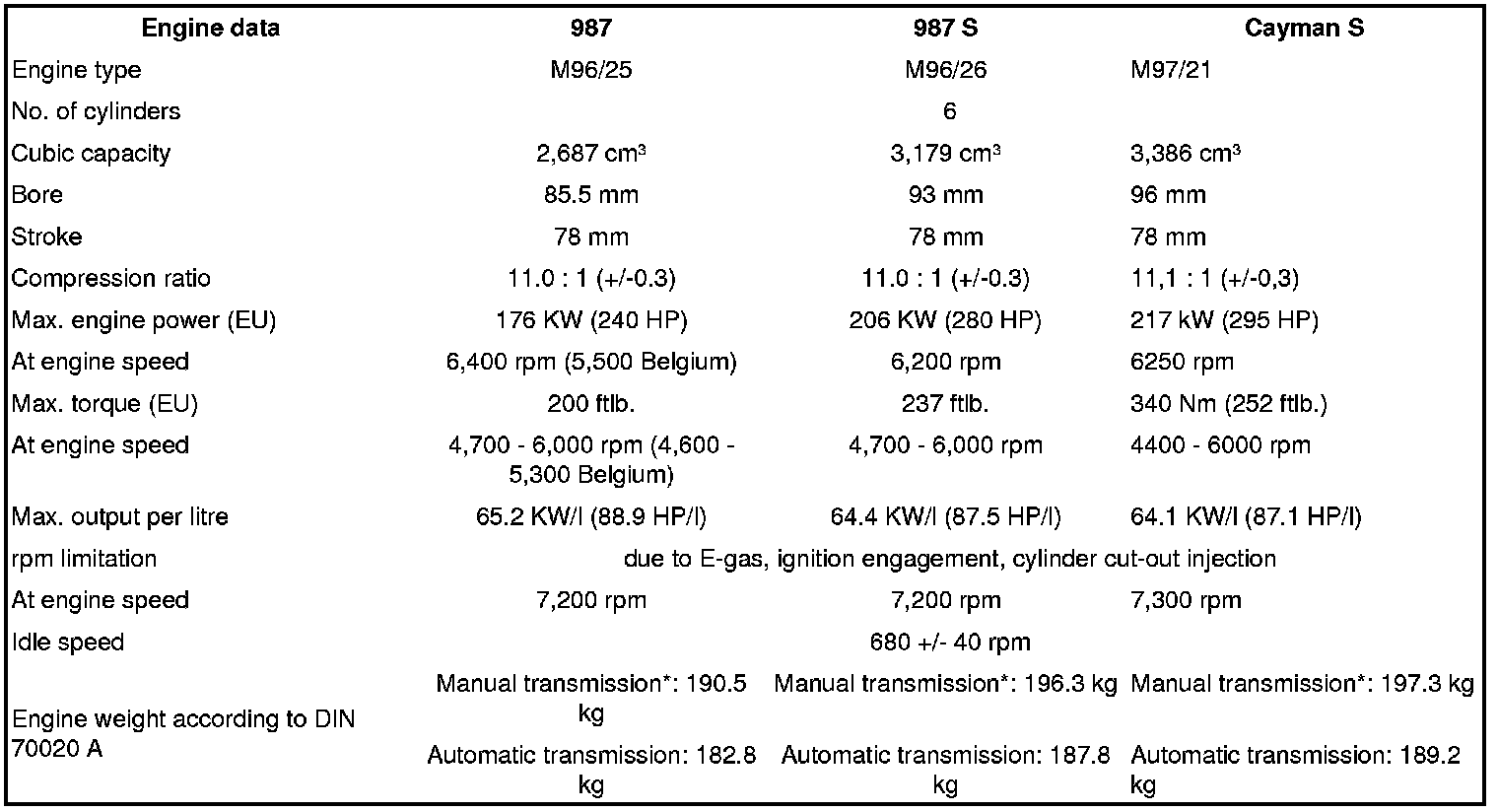

Technical values

Engine M96/25, M96/26 and M97/21





* including double-mass flywheel

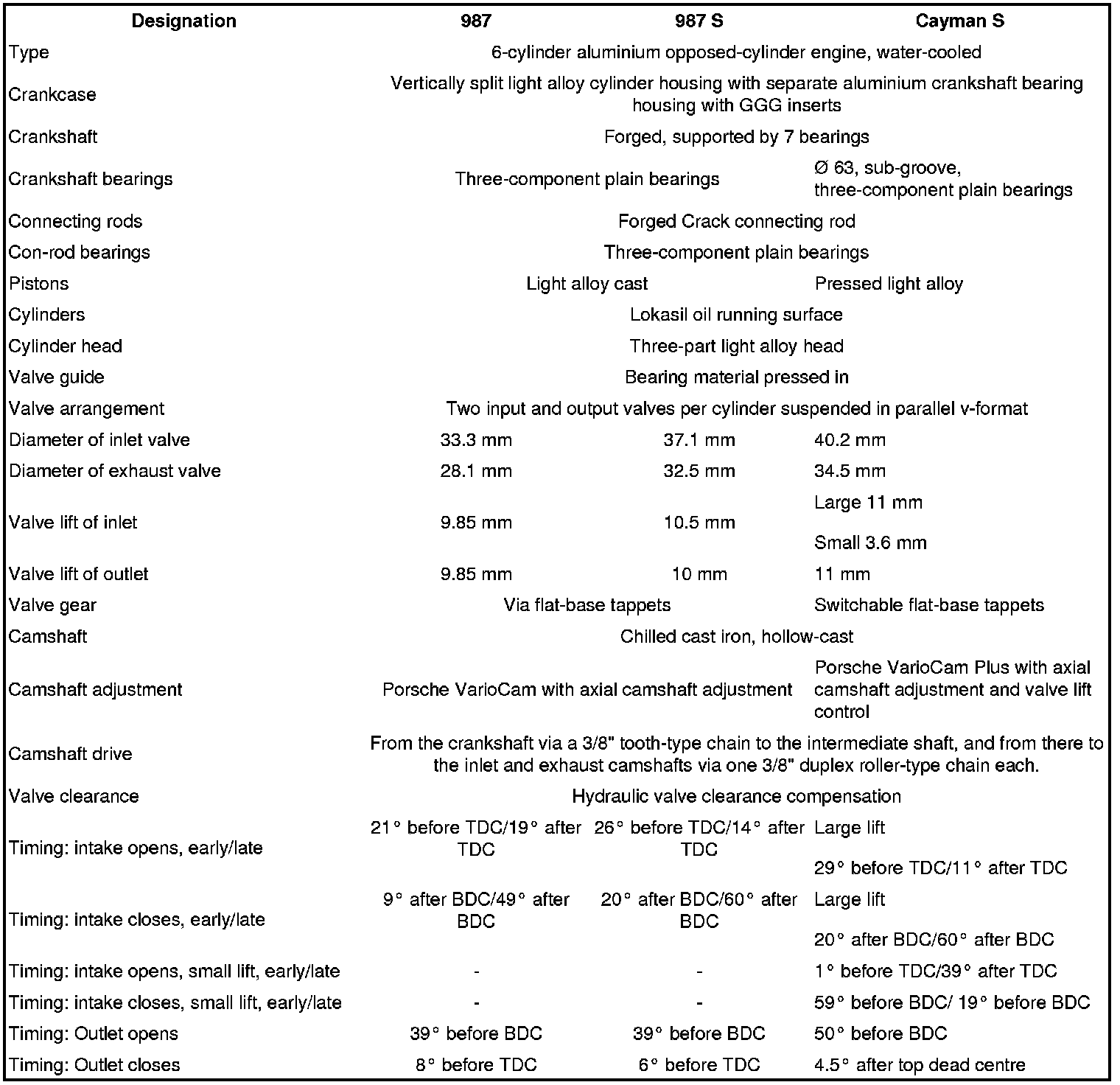

Engine design





Engine control
