Electrical System Control Unit - Sheet 2

Electrical System Control Unit - Sheet 2

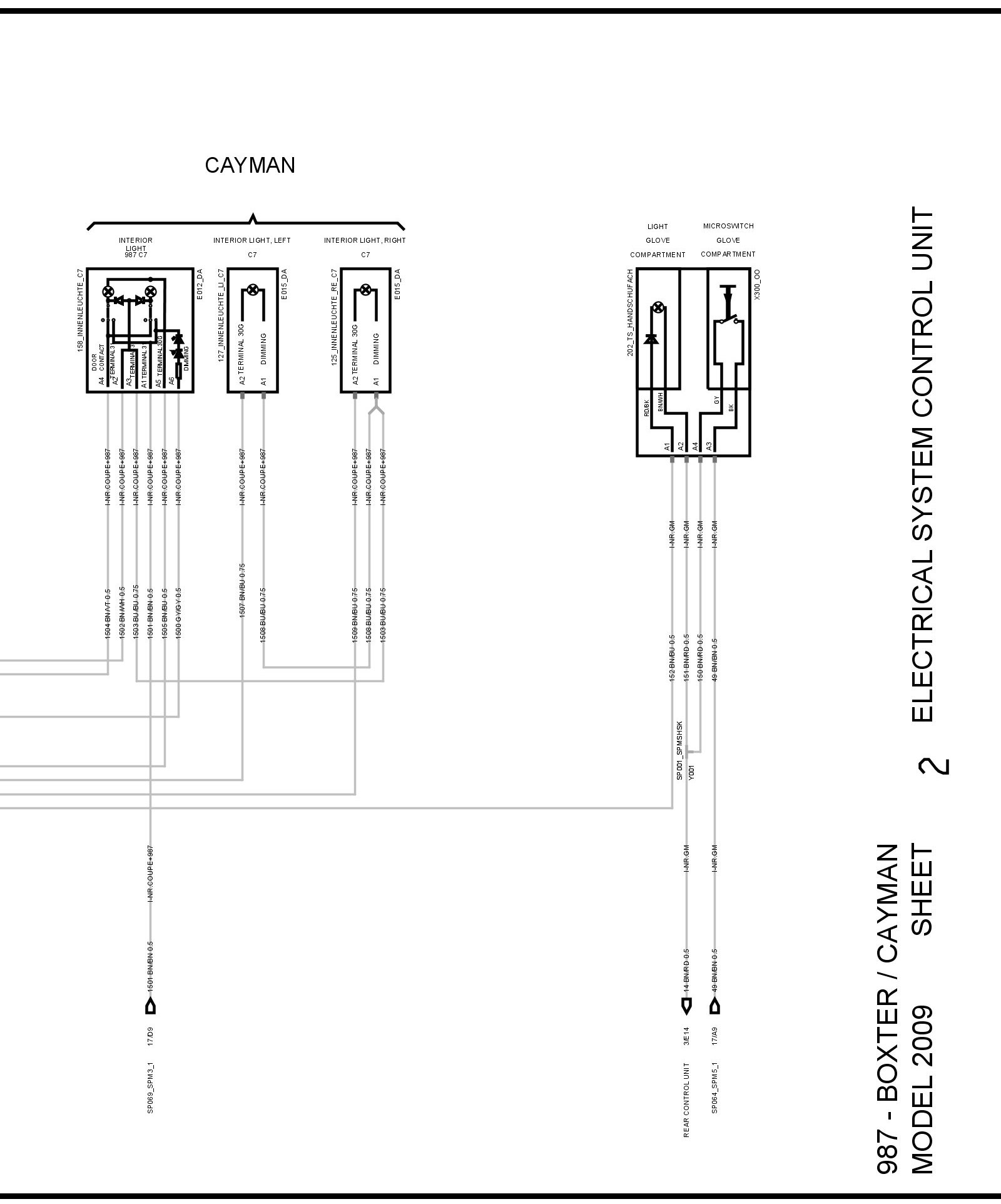

Electrical System Control Unit - Sheet 2 (Part 1):

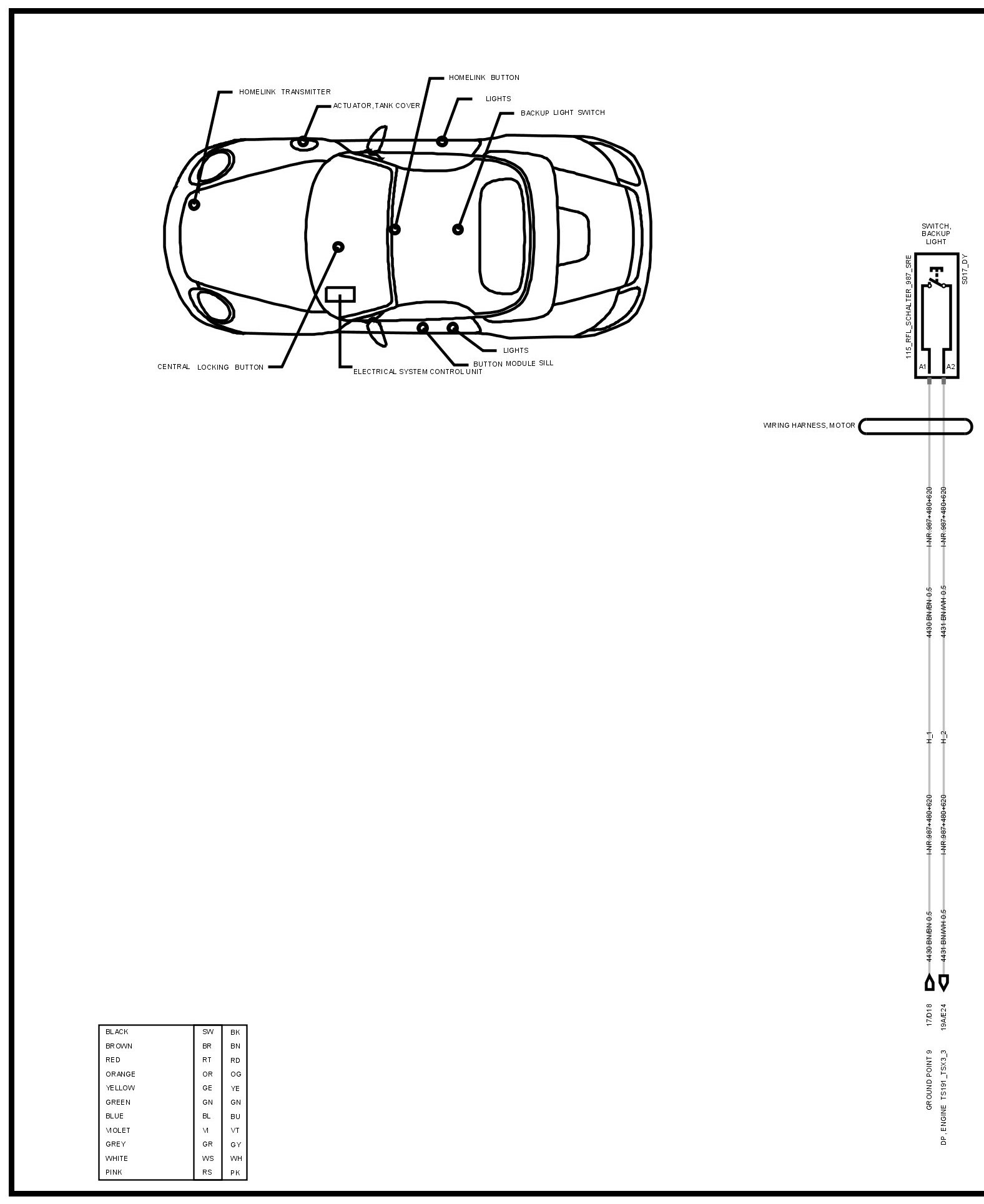

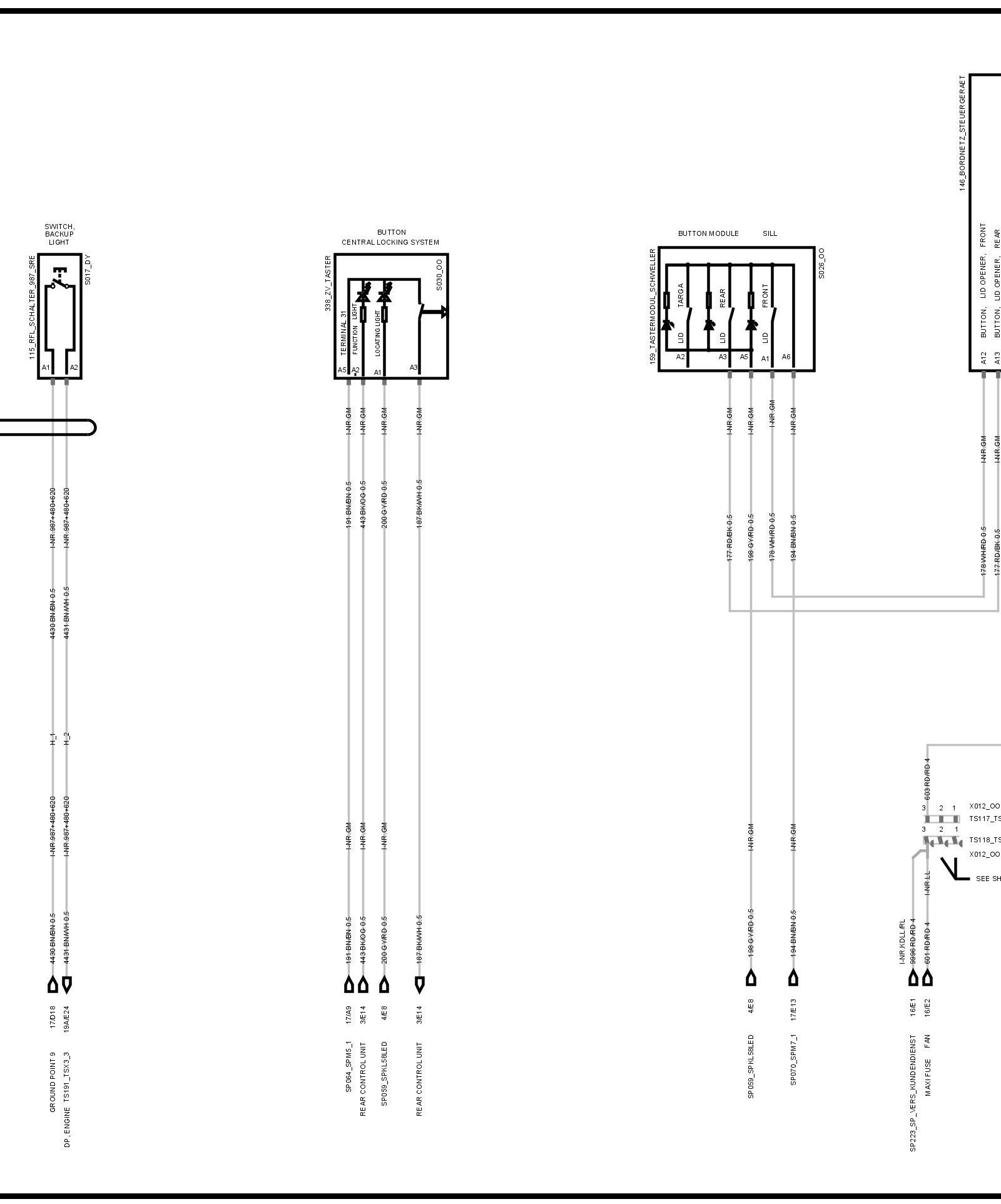

Electrical System Control Unit - Sheet 2 (Part 2):

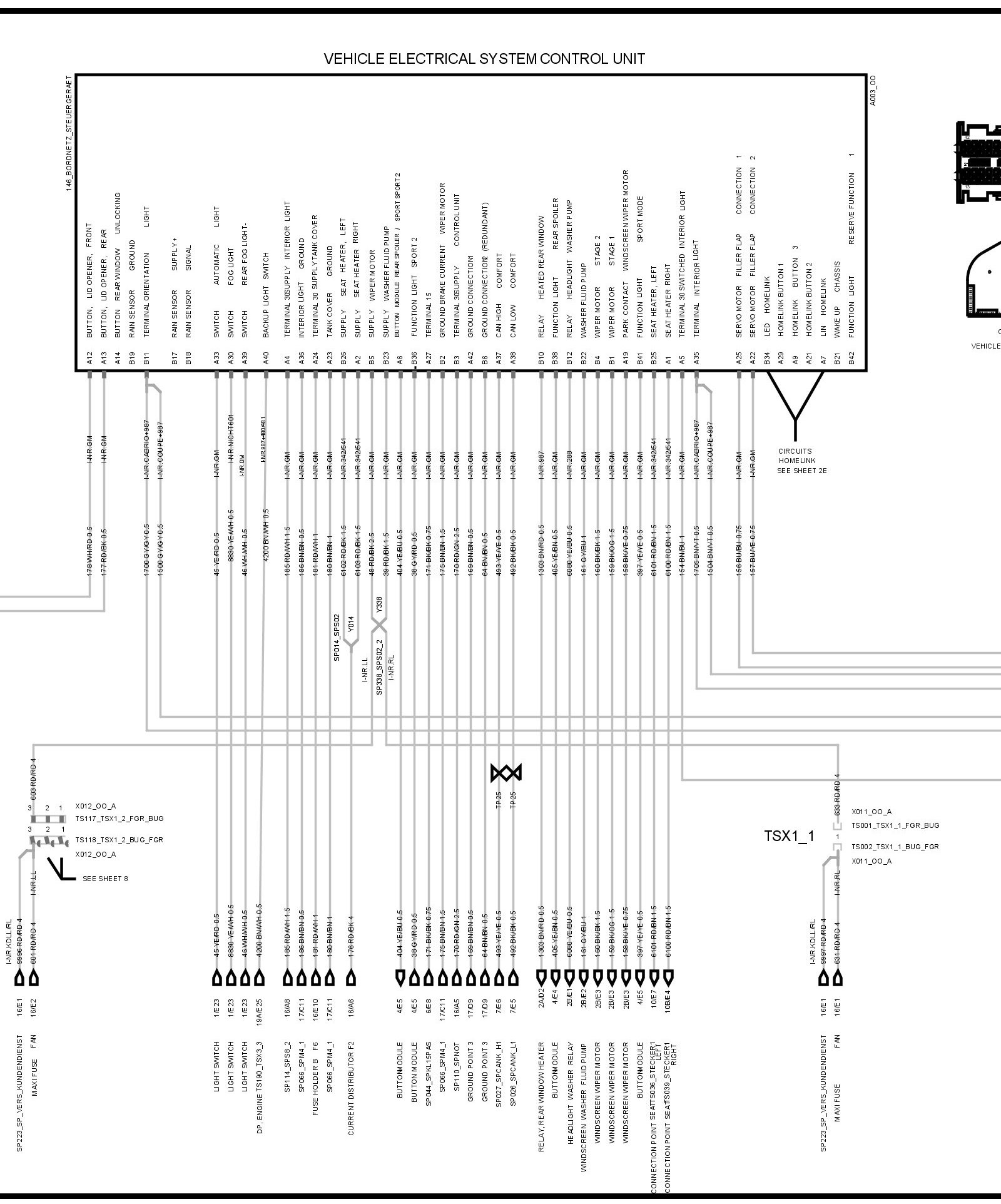

Electrical System Control Unit - Sheet 2 (Part 3):

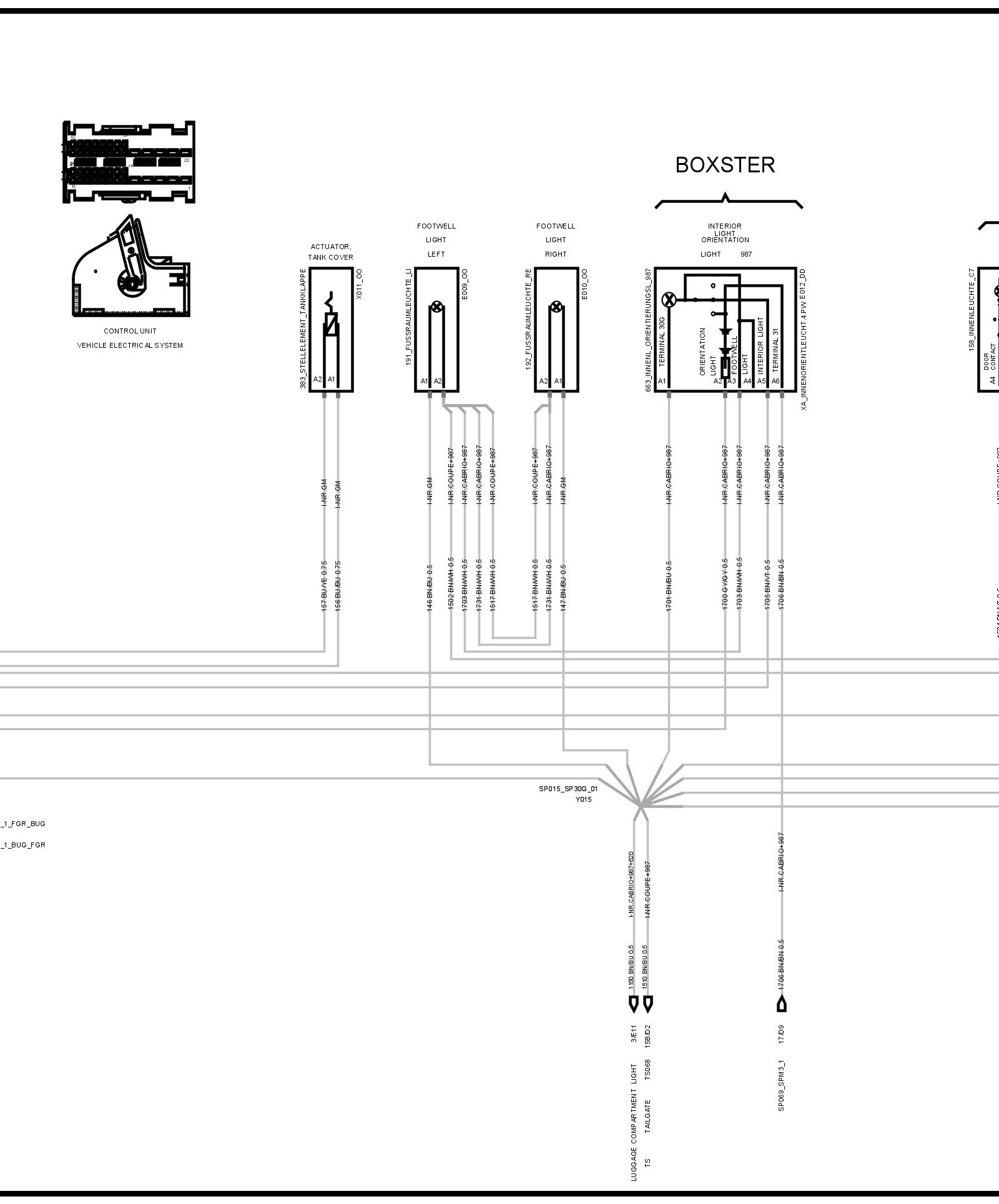

Electrical System Control Unit - Sheet 2 (Part 4):

Electrical System Control Unit - Sheet 2 (Part 5):

Electrical System Control Unit - Sheet 2 (Part 6):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
