Multiple Junction Connector

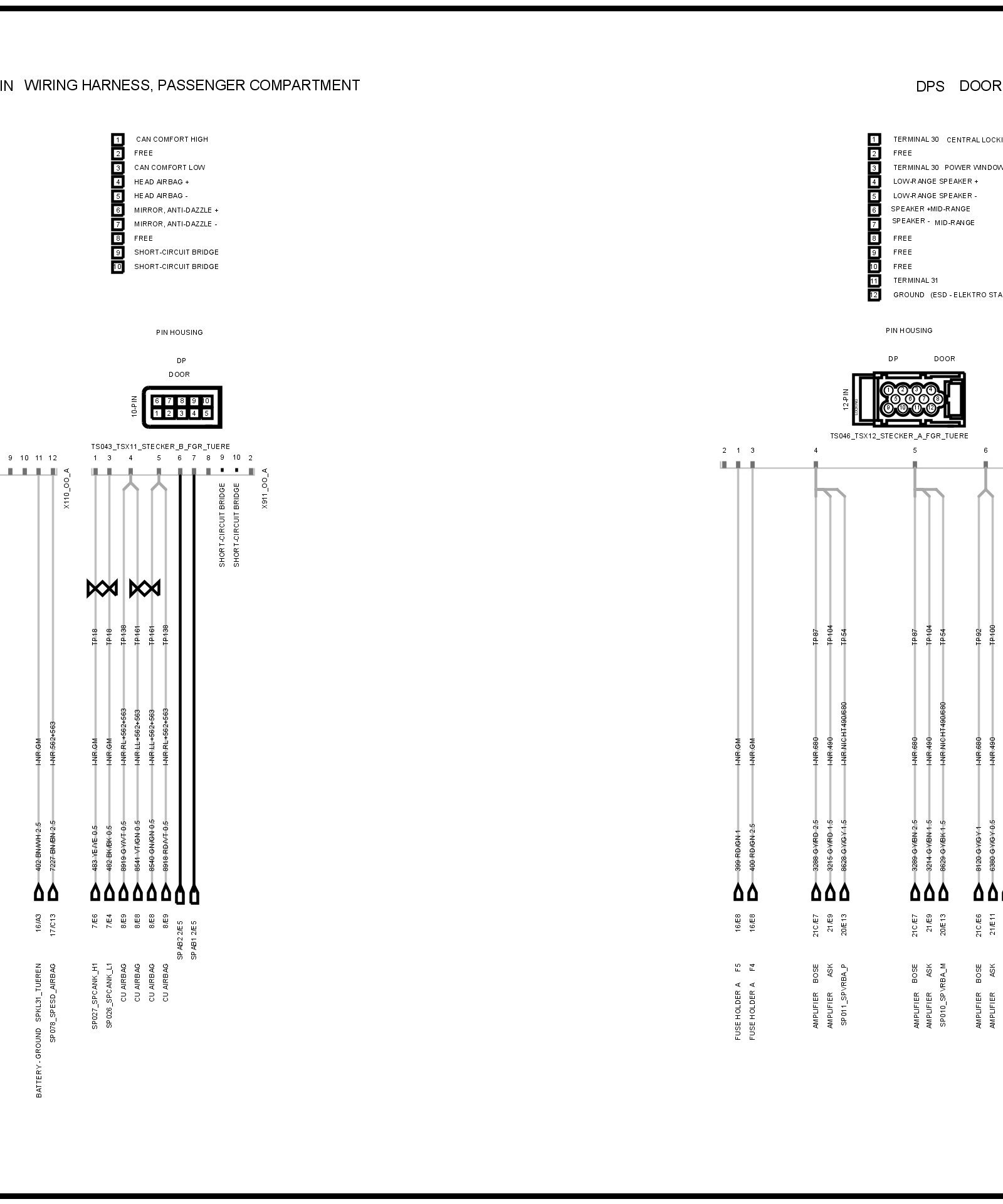

DPS Doors Left/Right - Sheet 9A (Part 1):

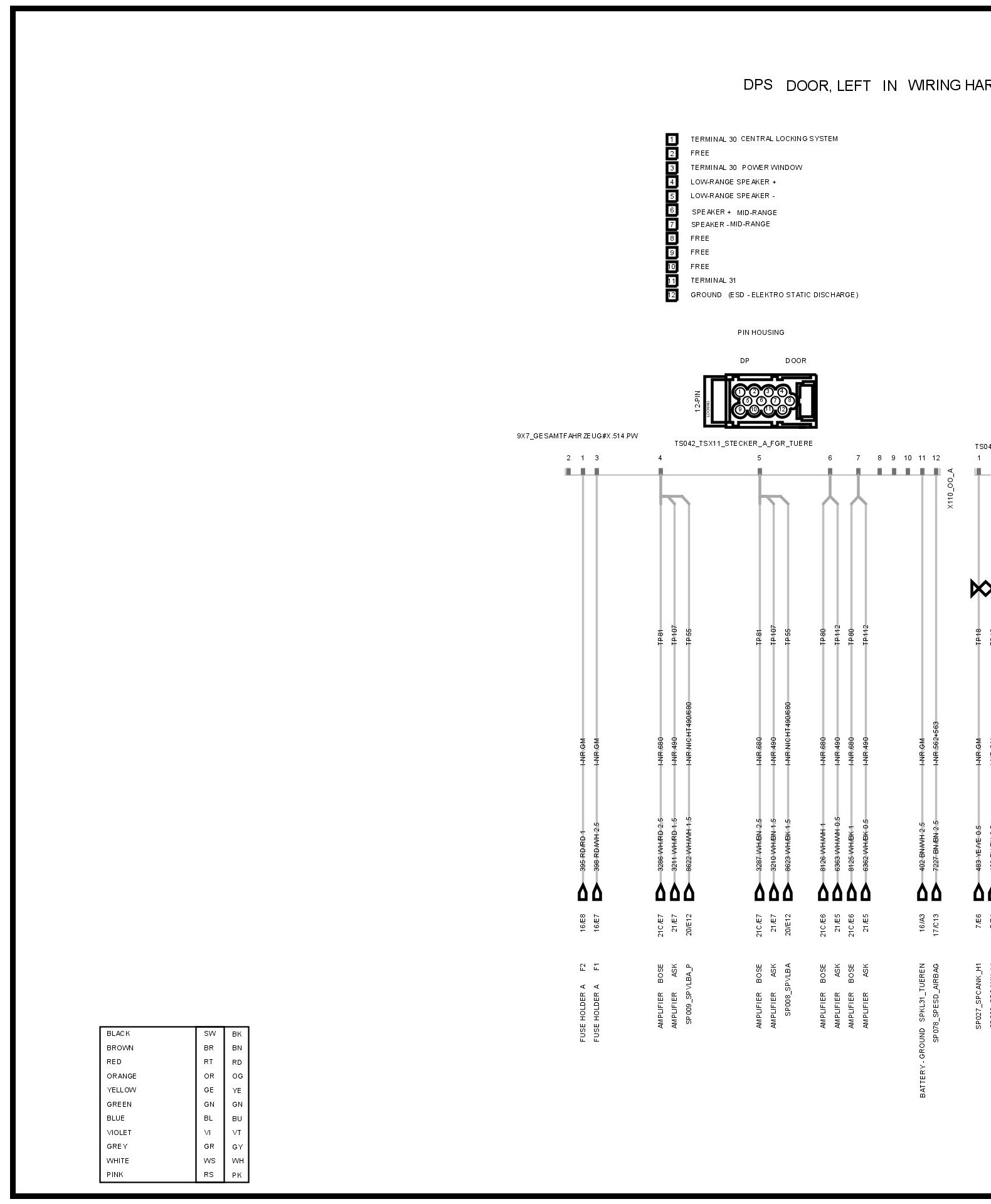

DPS Doors Left/Right - Sheet 9A (Part 2):

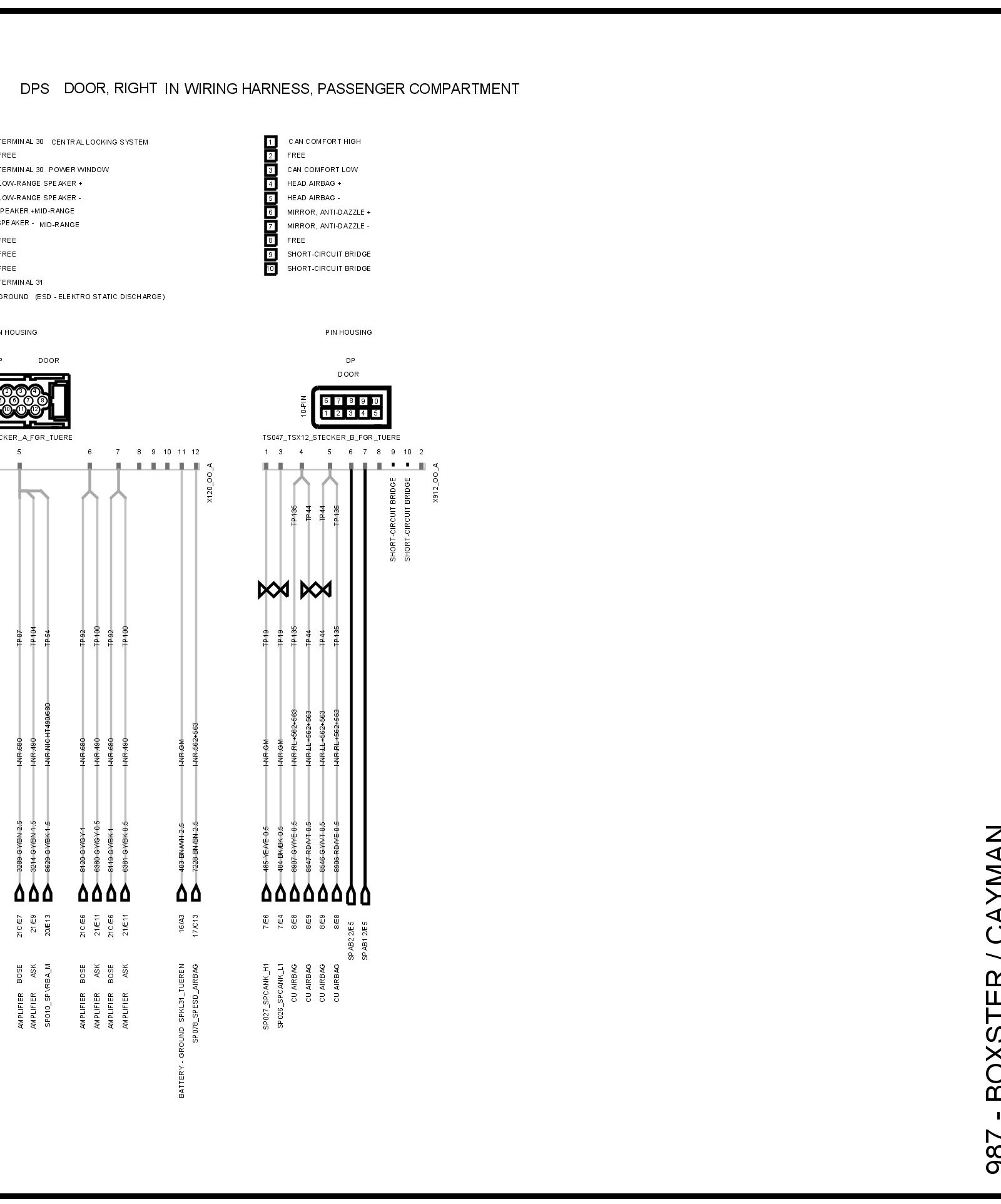

DPS Doors Left/Right - Sheet 9A (Part 3):

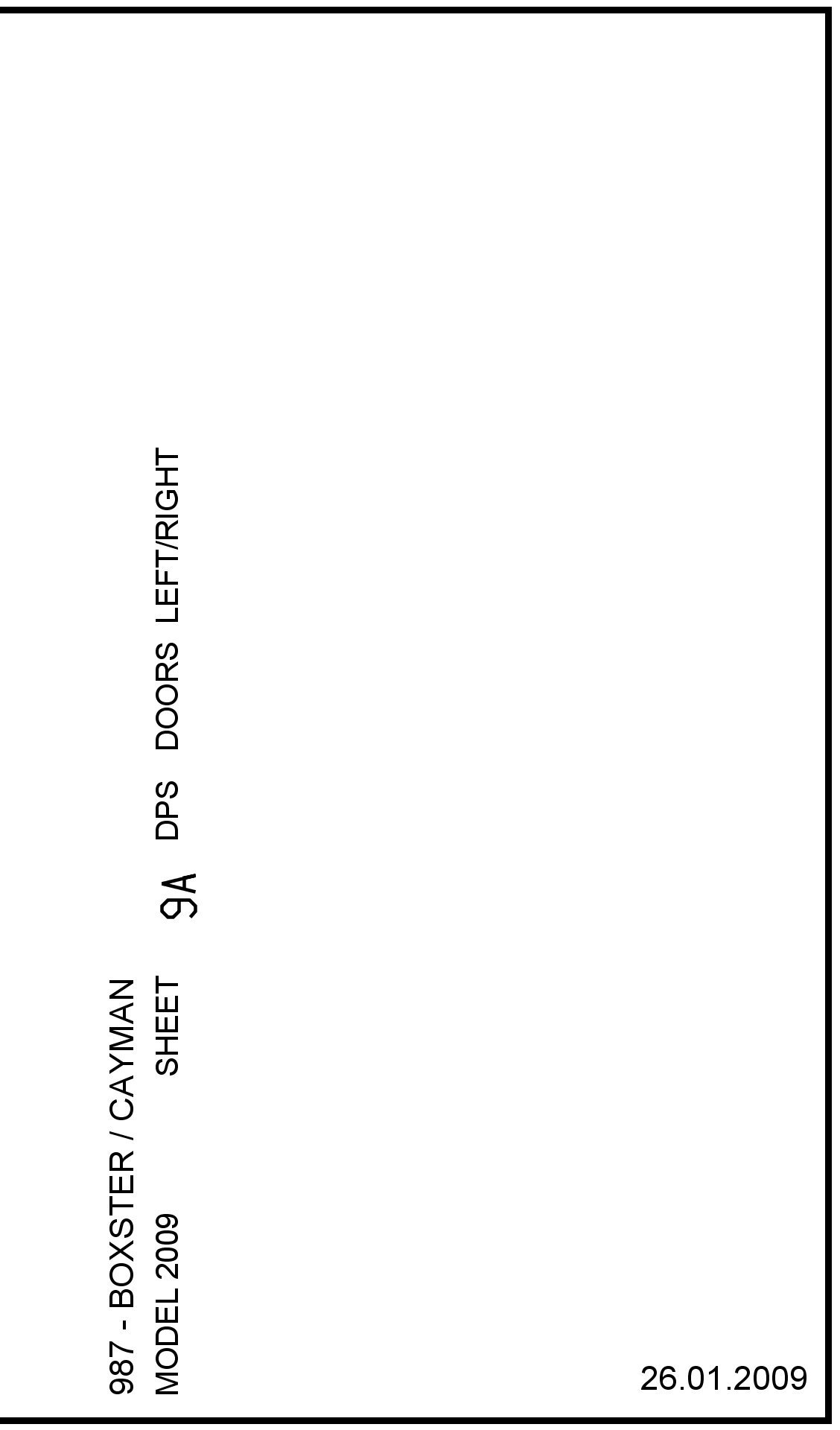

DPS Doors Left/Right - Sheet 9A (Part 4):
