Relay Box: Locations

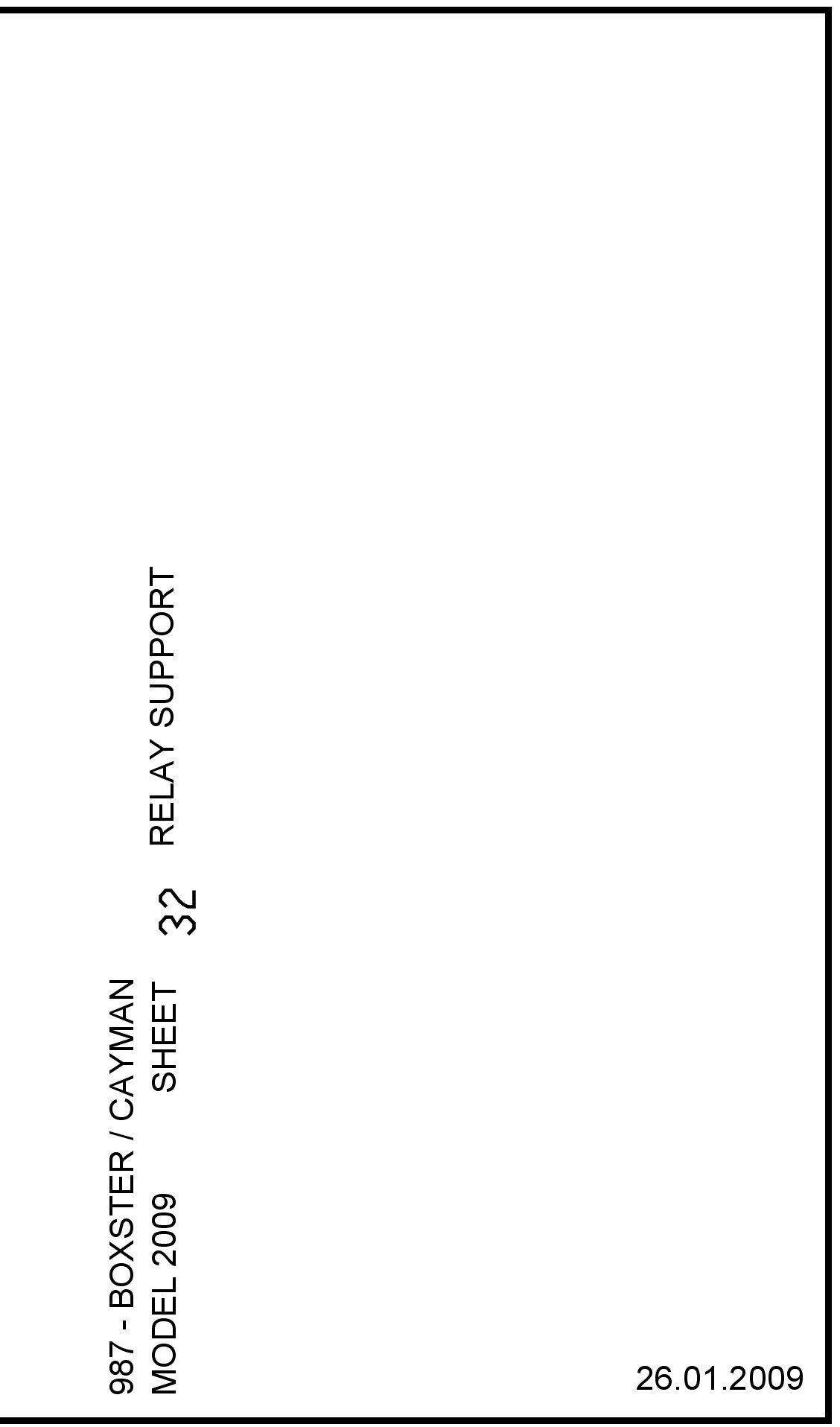

Relay Support - Sheet 32 (Part 1):

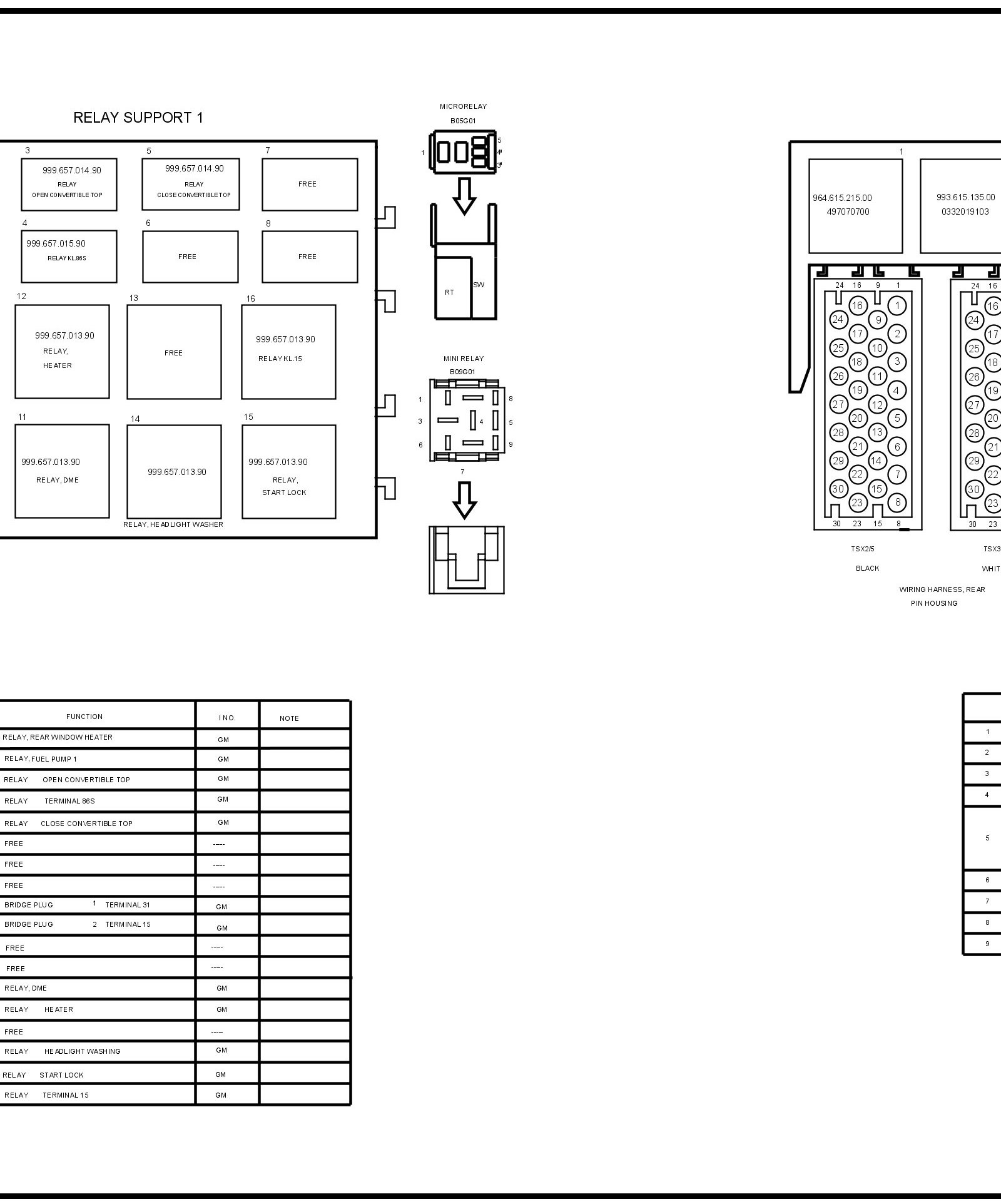

Relay Support - Sheet 32 (Part 2):

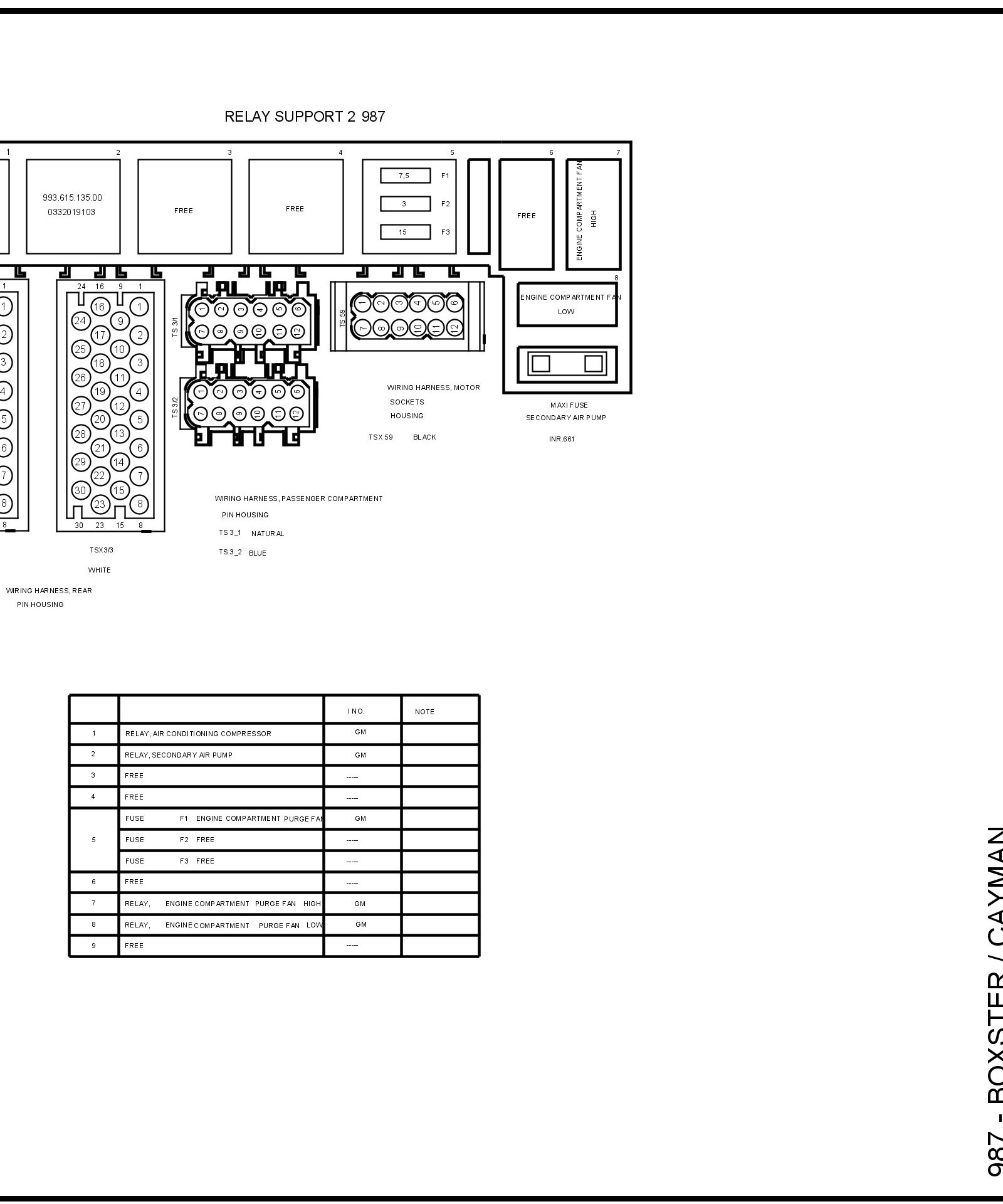

Relay Support - Sheet 32 (Part 3):

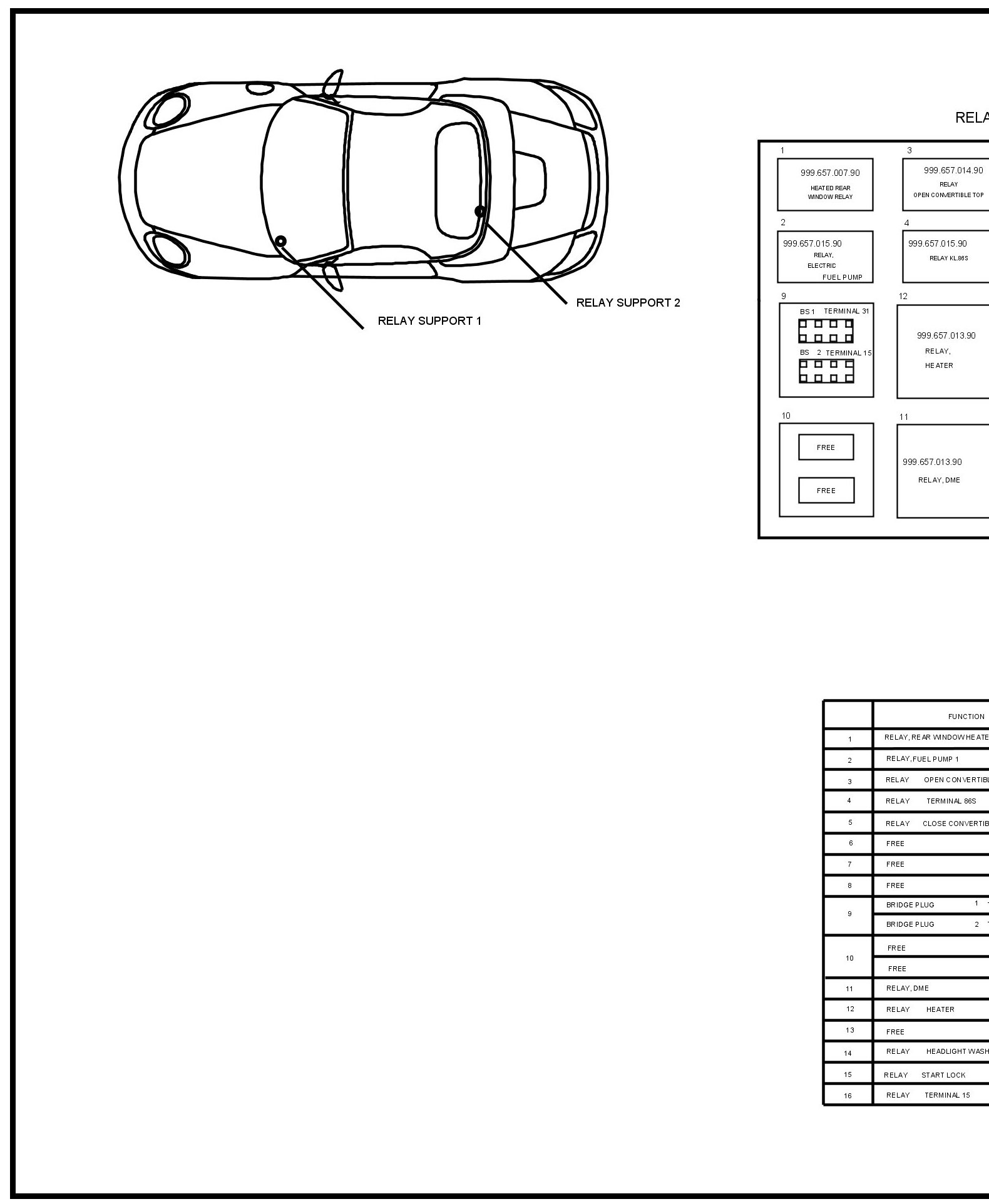

Relay Support - Sheet 32 (Part 4):
