Thermostat Monitoring

Thermostat Monitoring

General description

After engine start and under the conditions:
- no hot engine
- ambient temperature within range
- normal driving
- average vehicle speed > 25km/h
- sufficient mass air flow

an increase of the coolant system temperature will be expected.

Monitor structure

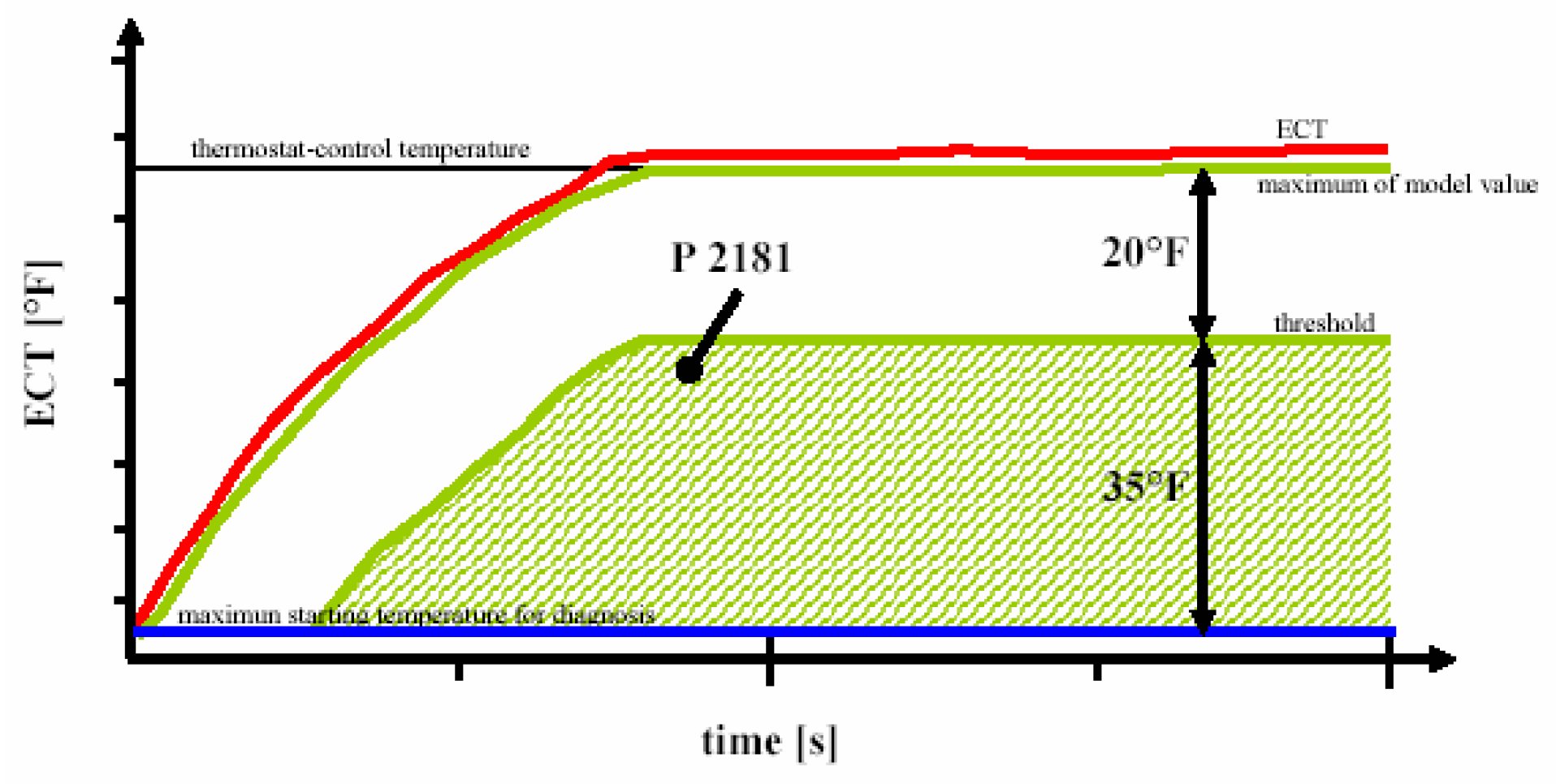

If the engine coolant temperature does not reach a certain value under normal driving conditions, the coolant system is defective (see graph).







flow chart:
