Piston

Piston

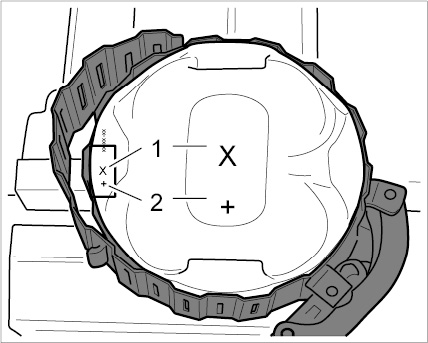

Piston markings

- Marking X appears as a large colored stamp in the middle of the piston crown, small as an engraved feature -1-.
- Marking + or - appears as a large colored stamp in the middle of the piston crown, small as an engraved feature -2-.
