Preliminary Work

Information

The combination sensor is located under the centre console.

The functions listed below are integrated into the combination sensor:

• Rate-of-turn sensor
• Lateral acceleration sensor
• Axial acceleration sensor

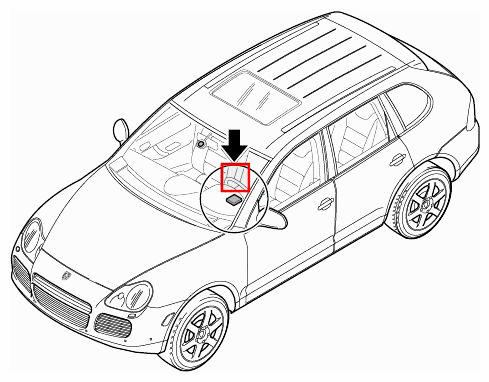

Fig 1: Locating Combination Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

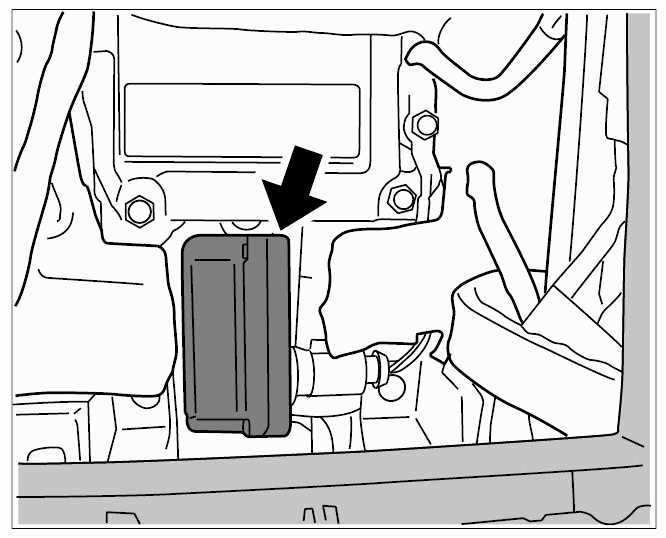

Fig 2: Locating Combination Sensor Under Centre Console (Cup Holder)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Disconnect battery → WM 9000IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS)
2. Remove centre console cover and cup holder. → WM 681919 REMOVING AND INSTALLING COVER FOR CENTRE CONSOLE
3. Remove triggering unit for airbag → WM 695319 REMOVING AND INSTALLING TRIGGERING UNIT FOR AIRBAG
