Relay Box: Locations

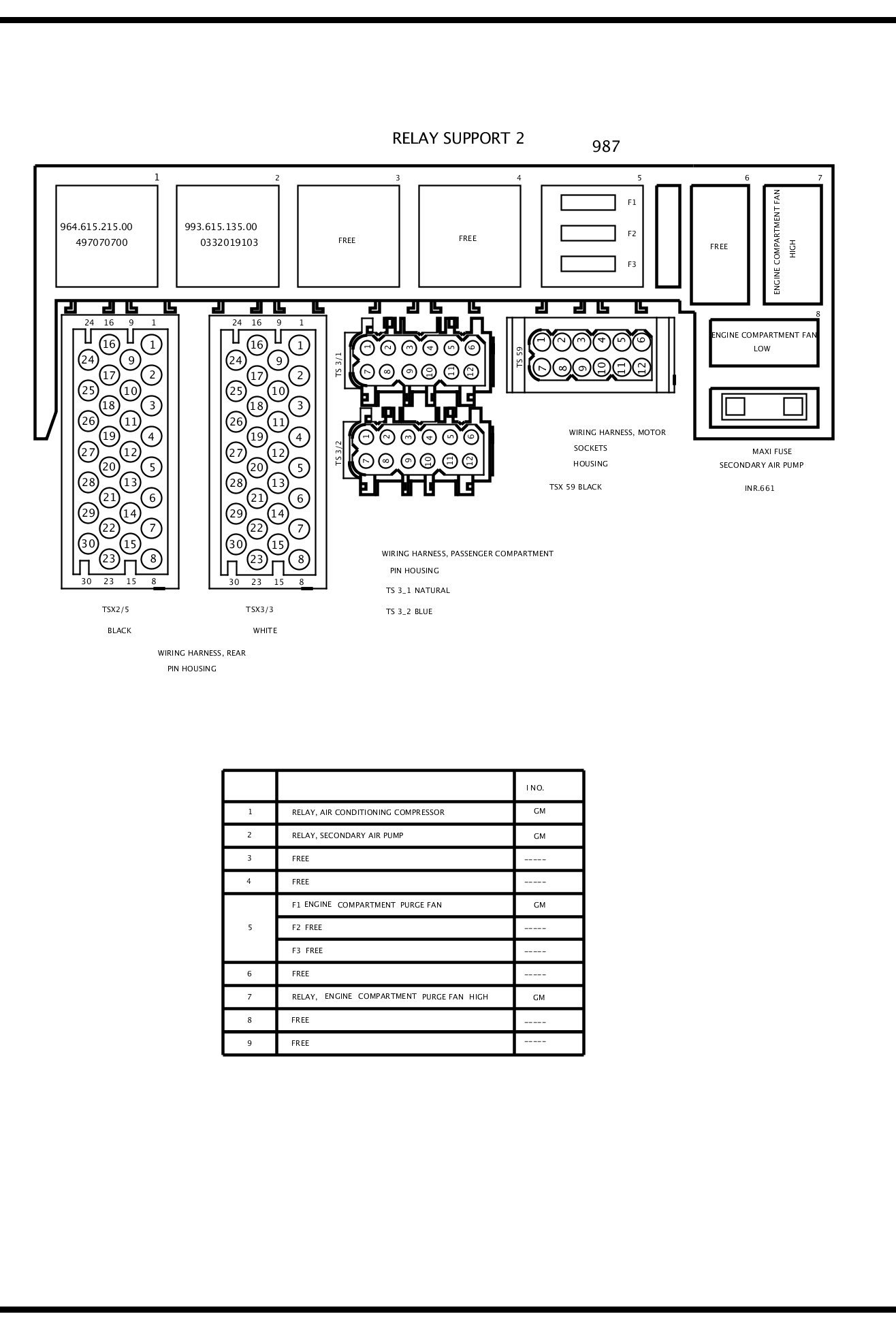

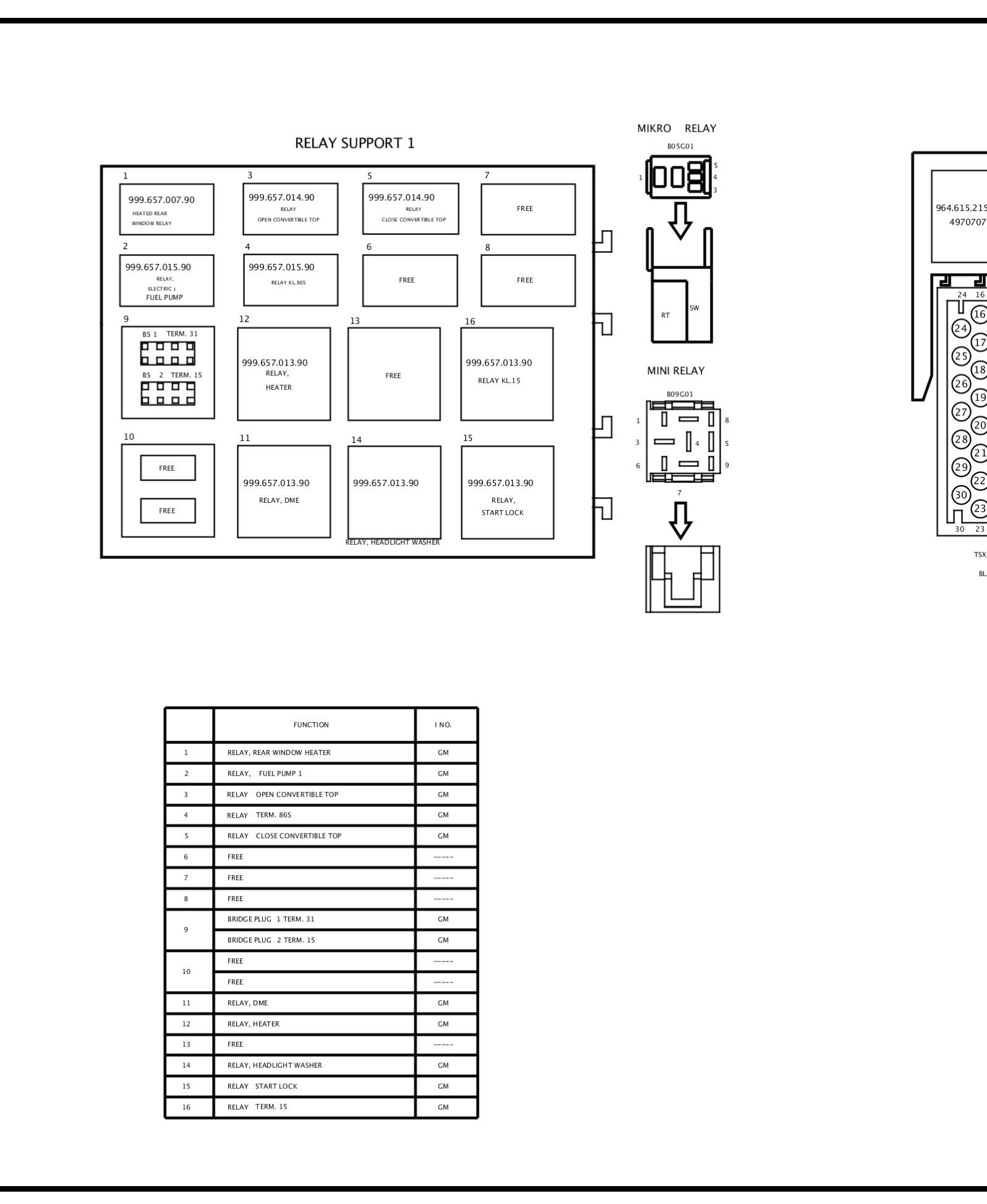

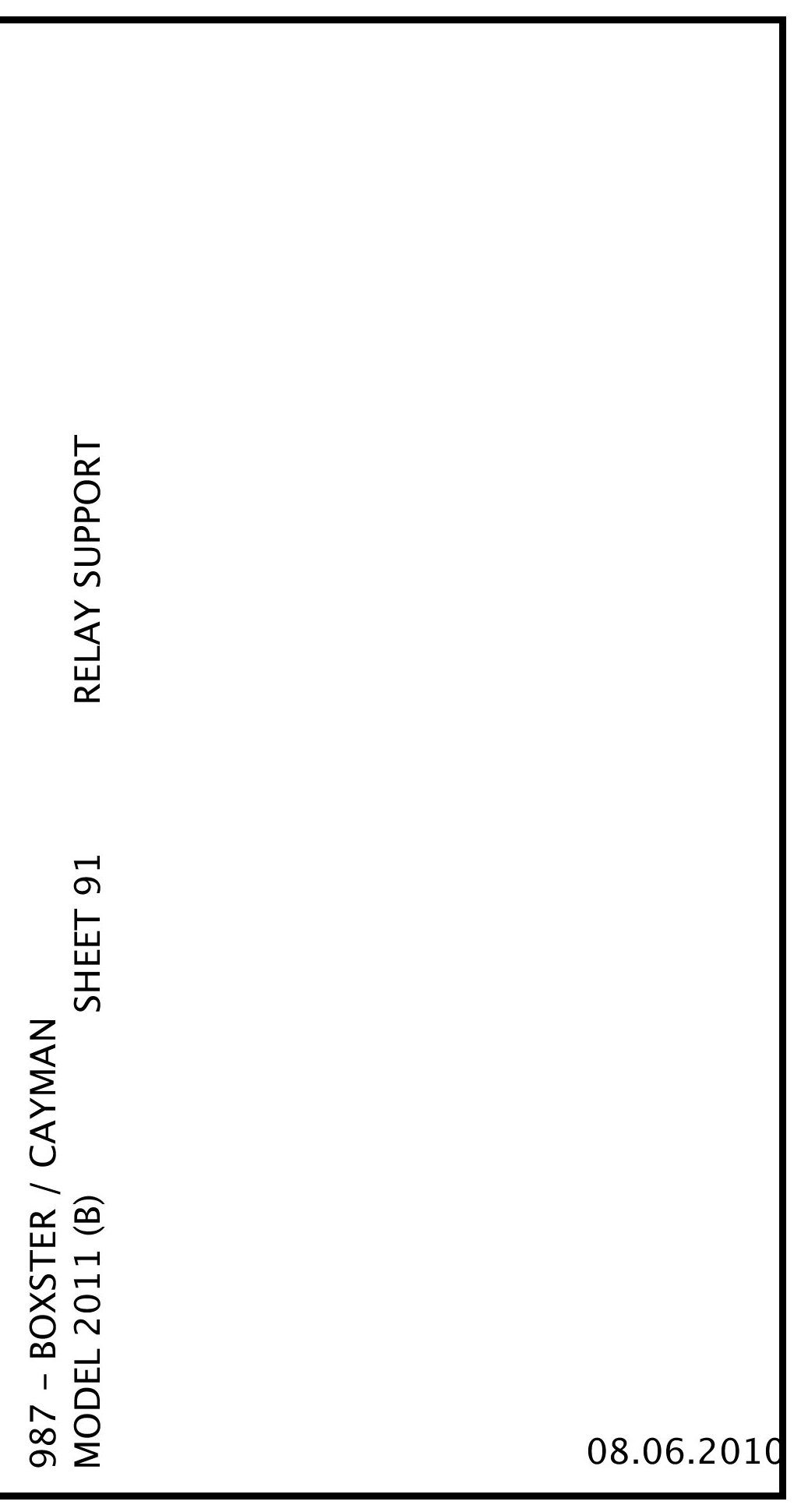

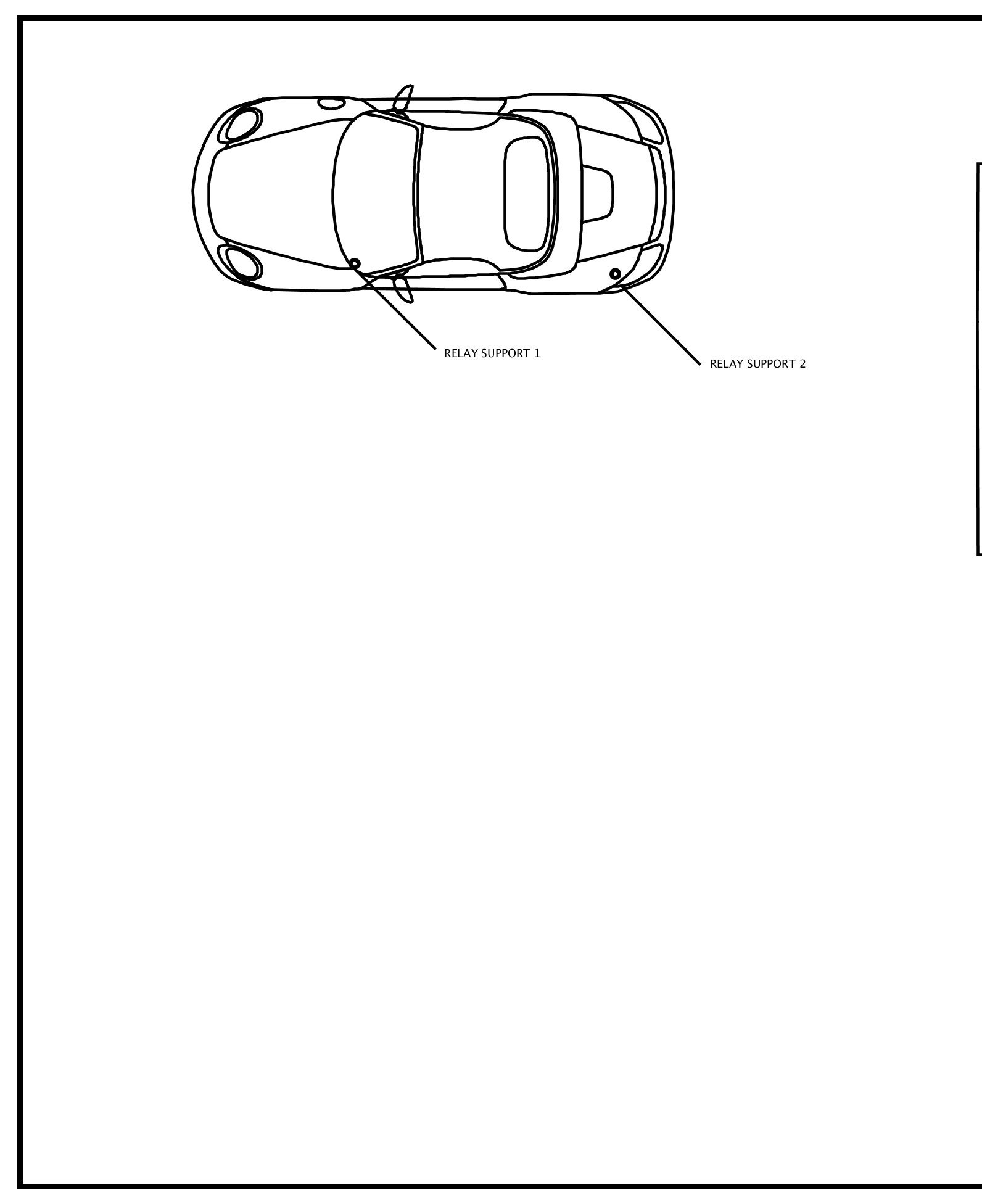

Relay Support - Sheet 91


Relay Support - Sheet 91 (Part 1):





Relay Support - Sheet 91 (Part 2):





Relay Support - Sheet 91 (Part 3):





Relay Support - Sheet 91 (Part 4):
