Installing Control Part Trim Panel

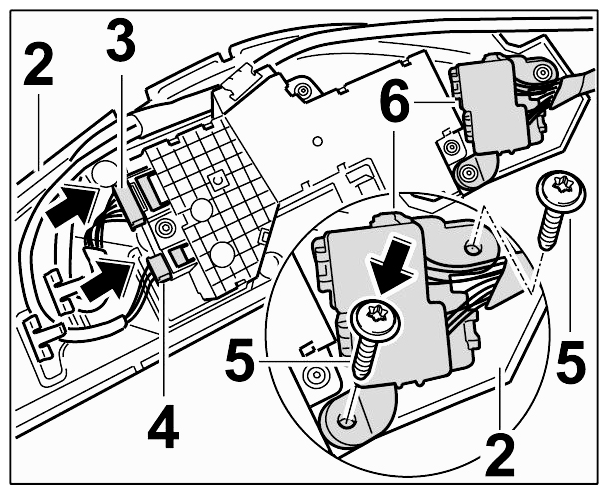

  1. Position tip switch 6  on the control part trim panel 2  and screw down with the fastening screws 5  . Plug in electrical plug connection 3 and 4  .
    Fig 1: Connecting Electrical Plug Connection
    G09592137Courtesy of PORSCHE CARS NORTH AMERICA, INC.

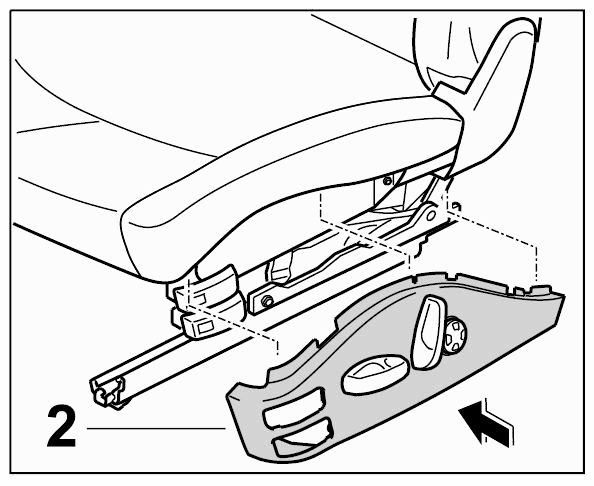

  2. Insert control part trim panel 2  into the cushion in direction of arrow.
    Fig 2: Positioning Control Part Trim Panel
    G09592138Courtesy of PORSCHE CARS NORTH AMERICA, INC.

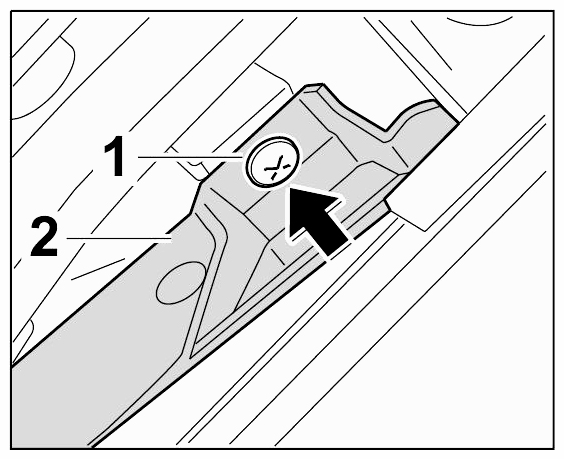

  3. Screw down rear control part trim panel 2  with the fastening screws 1  . → Tightening torque: 2 ftlb.
    Fig 3: Tightening Rear Control Part Trim Panel
    G09592139Courtesy of PORSCHE CARS NORTH AMERICA, INC.

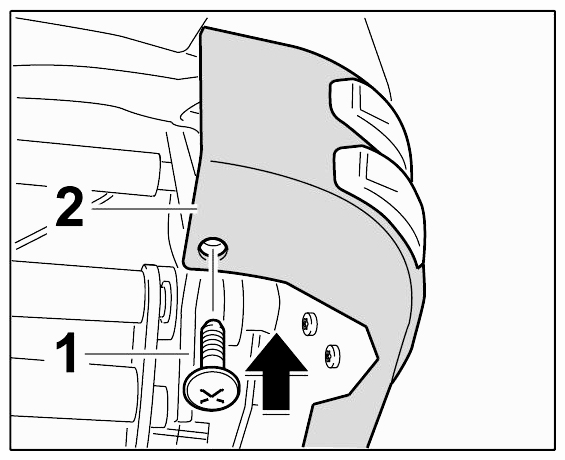

  4. Screw down front control part trim panel 2  with the fastening screws 1  . → Tightening torque: 2 ftlb.
    Fig 4: Tightening Front Control Part Trim Panel
    G09592140Courtesy of PORSCHE CARS NORTH AMERICA, INC.
