Installing Air Conditioning Control

  1. Plug in electric connectors -2-  on the air conditioning control -1-  until the connectors engage securely.

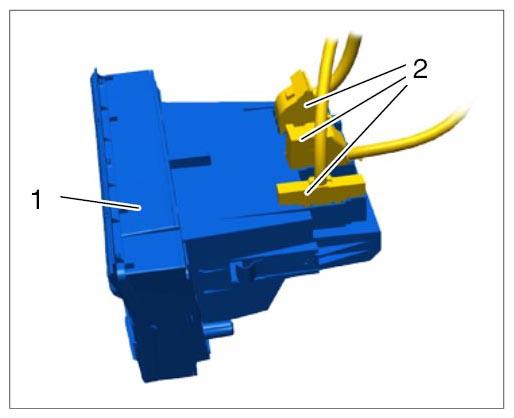

    Fig 1: Installing Air Conditioning Control Connectors
    G10028053Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Slide the air conditioning control -1-  into the installation slot in direction of arrow until the air conditioning control engages securely.

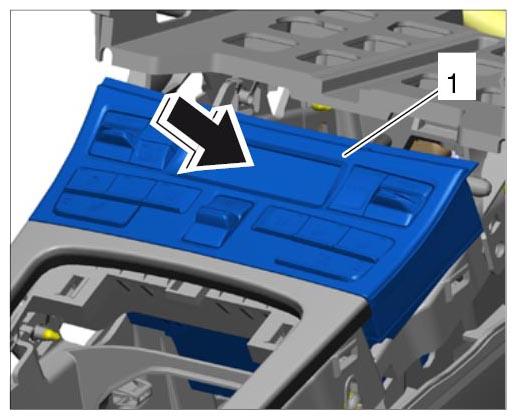

    Fig 2: Installing Air Conditioning Control
    G10028054Courtesy of PORSCHE CARS NORTH AMERICA, INC.
