Disassembling key

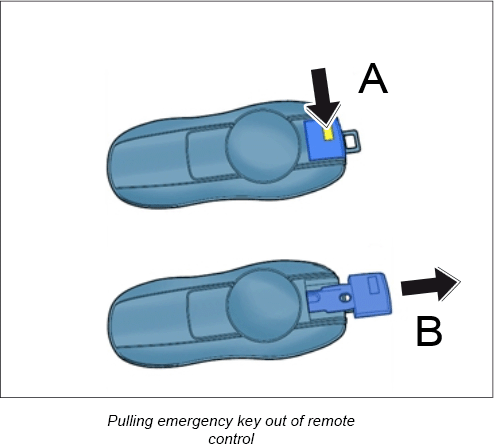

  1. Disengage locking mechanism -A-  and pull emergency key about 15 mm out of the remote control -B-  .
    G12835061Courtesy of PORSCHE CARS NORTH AMERICA, INC.

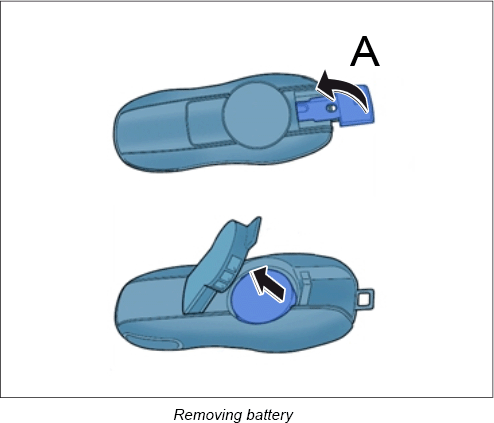

  2. Open up battery compartment lid up with emergency key -A-  .
  3. Remove battery from the remote control.
G12835062Courtesy of PORSCHE CARS NORTH AMERICA, INC.
