Installing Optical Waveguide

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Observe the general information on optical waveguides. → WM 9700IN GENERAL INFORMATION ON OPTICAL WAVEGUIDES - MOST BUS

Cut off the optical contacts of the damaged optical waveguide and isolate them.
Information

The range of spare parts available for optical waveguides depends on the vehicle equipment. Depending on the vehicle equipment, there is a specific set containing the individual optical waveguides.

Select the required optical waveguide and remove it from the set.
Route the new optical waveguide along the main wire harness, guide it through the existing cable ducts and tie it to the main wire harness using tie-wraps.

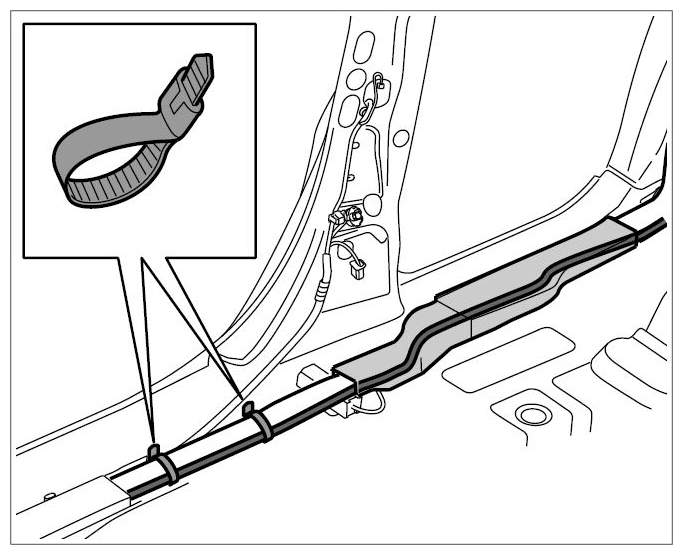

Fig 1: Routing And Fastening Optical Waveguide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect the connectors for the new optical waveguide to the affected parts until the connectors are felt to engage. The illustration shows the connector on the CD changer as an example.

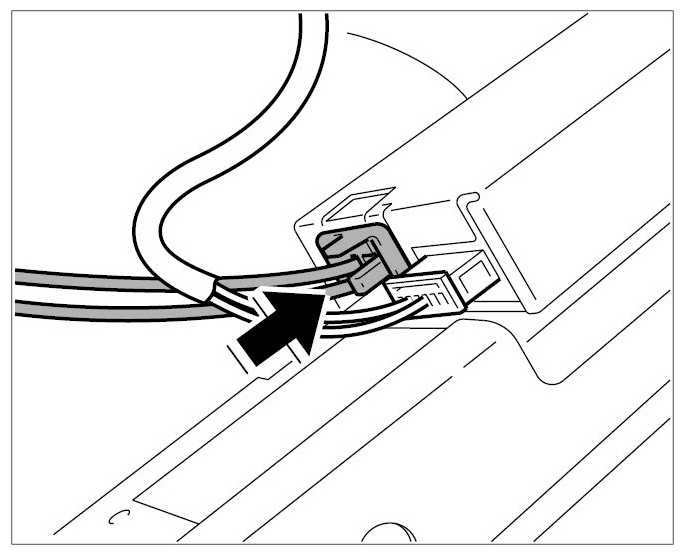

Fig 2: Connecting Connector For Optical Waveguide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Read out fault memory and erase if required.
Check operation of audio components.
