Removing Sensor Module

  1. Remove connector housing for sensor module.
    1. 1.1. Use bit T40228  to turn the connector housing as far as it will go to the left -A-  .
    2. 1.2. Pull off connector housing -B-  .

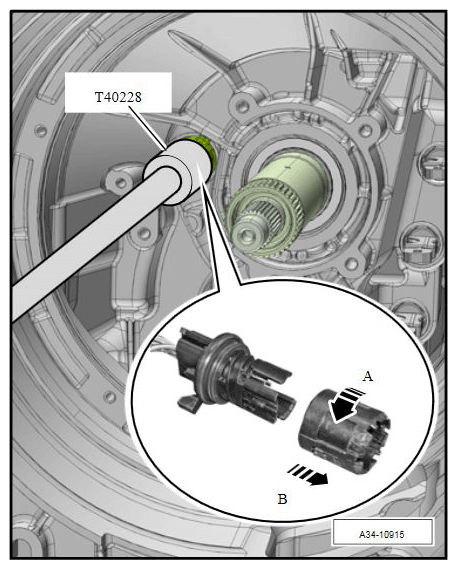

      G11983578

      Connector housing for sensor module

  2. Remove transmission housing cover.
    1. 2.1. Unscrew fastening screws -1, 2-  .
    2. 2.2. Pull off transmission housing cover.

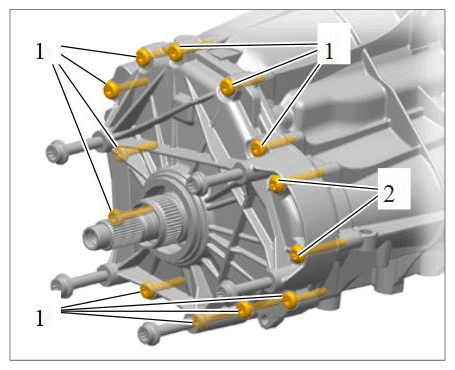

      G11983579

      Transmission housing cover

  3. Remove oil guide -arrow-  for drive shaft.

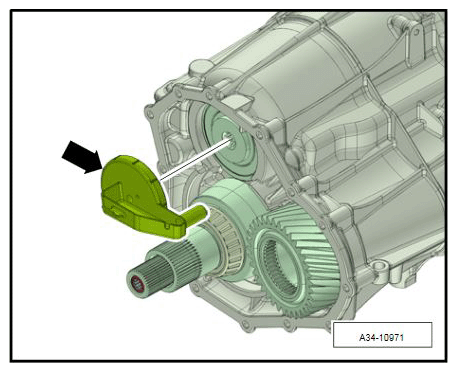

    G11983580

    Oil guide for drive shaft

  4. Unscrew fastening screw -A-  for side shaft -B-  .
    1. 4.1. Fit bi-hexagonal socket insert (a/f 21) -C-  with extension -D-  .
    2. 4.2. Counter-hold tool T40217  must be inserted into the side shaft -arrows 1, 2-  and screwed to the centre transmission housing.

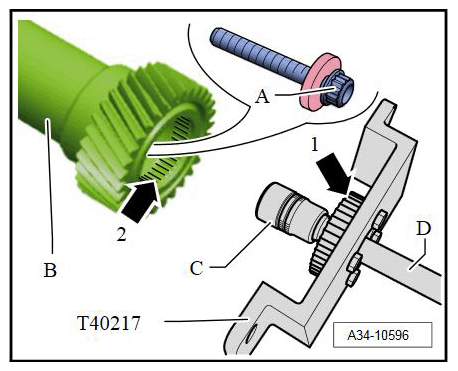

      G11983581

      Fastening screw for side shaft

  5. Pull out the side shaft -2-  .

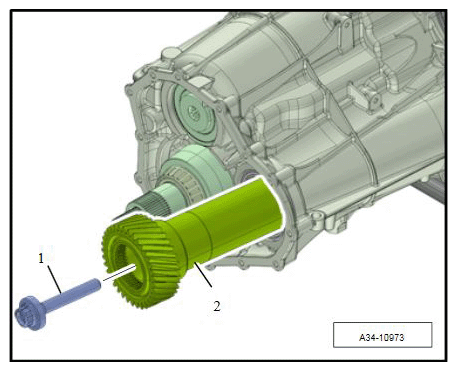

    G11983582

    Pulling out side shaft

  6. Pull spur gear -1-  and needle-roller bearing -2-  off the output shaft -3-  .

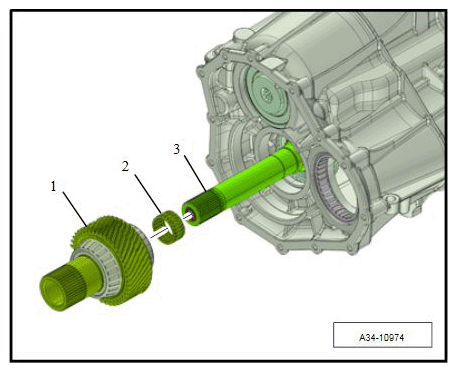

    G11983583

    Pulling off spur gear and needle-roller bearing

  7. Position transmission so that it is vertical on the mounting bracket. → Moving transmission to a vertical position
    1. 7.1. The clutch side is pointing downwards.
      G11983584

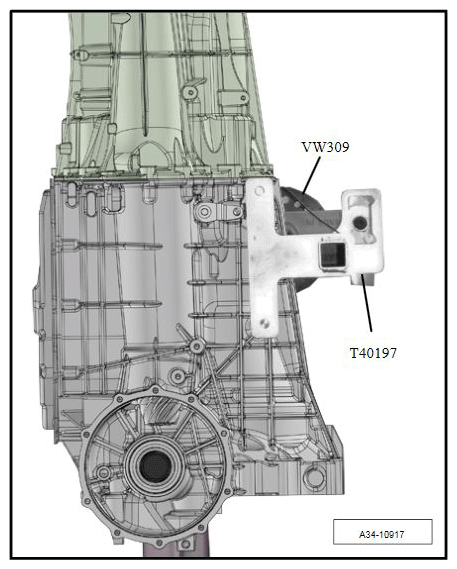

      Moving transmission to a vertical position

  8. Unscrew fastening screws -arrows-  for centre transmission housing.
    G11983585

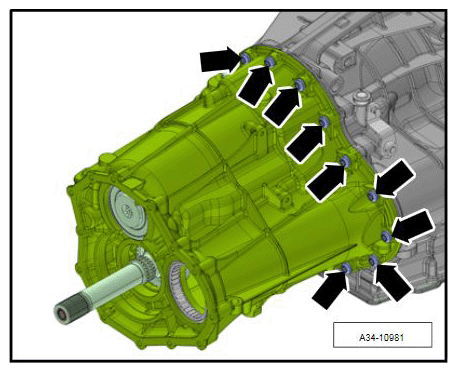

    Fastening screws for centre transmission housing

  9. Suspend centre transmission housing on the workshop crane WE 1188  and remove it. → Suspending centre transmission housing
    1. 9.1. Retainer T10014  must be secured to the centre transmission housing.
    2. 9.2. Secure VW771/40 from tool set Multi-purpose tool VW771  on the centre transmission housing.
    3. 9.3. Eye-head bolt 3368  must be secured to VW771/40.
    4. 9.4. Retainer T10014  and eye-head bolt 3368  must now be connected to the lifting tackle 2024 A  .
    5. 9.5. Lifting tackle 2024 A  must be connected to the workshop crane WE 1188  .
    6. 9.6. Lift off centre transmission housing and set it down on a workbench.

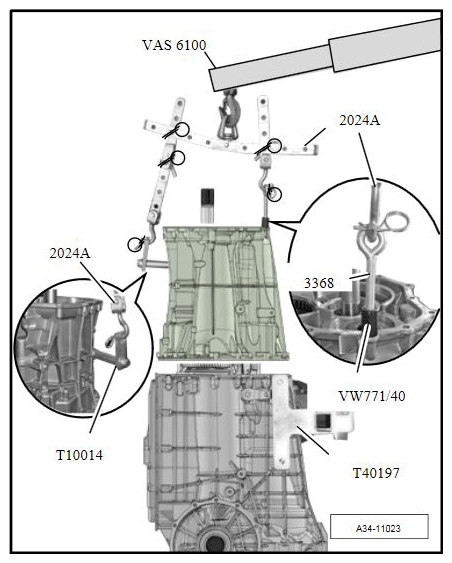

      G11983586

      Suspending centre transmission housing

  10. Remove sensor module.
    1. 10.1. Unscrew fastening screw -arrow-  .
    2. 10.2. Remove sensor module -2-  and oil collection pan -1-  .

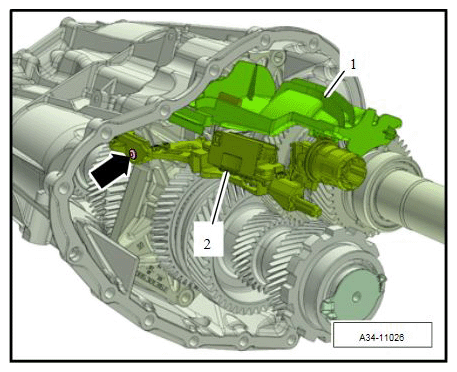

      G11983587

      Sensor module
