3 Zone Automatic
WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

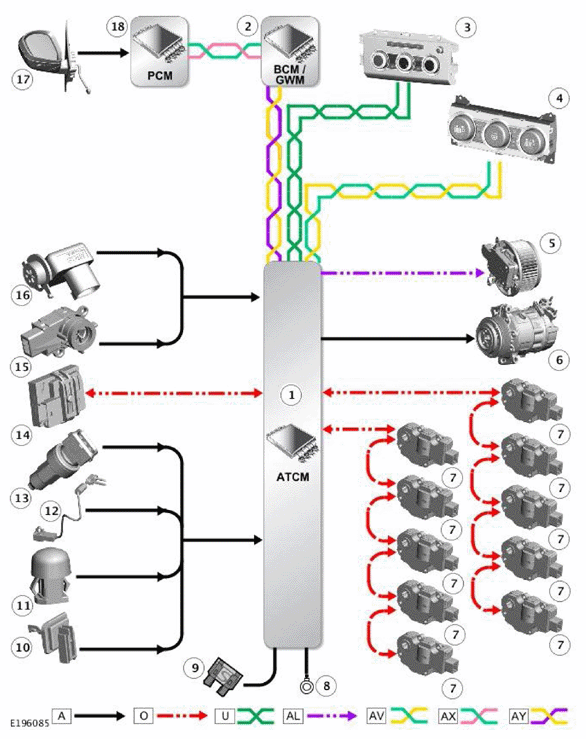

A = Hardwired Connection: O = Local Interconnect Network (Lin) Bus: U = Medium Speed (Ms) Controller Area Network (Can) Private Bus: Al = Pulse Width Modulation (Pwm): Av = High Speed (Hs) Can Comfort Bus: Ax = Flexray: Ay = Hs Can Power Mode Zero
| Item | Description |
|---|---|
| 1 | Automatic Temperature Control Module (Atcm) |
| 2 | Body Control Module/Gateway Module (Bcm/Gwm) |
| 3 | Integrated Control Panel (Icp) |
| 4 | Rear Integrated Control Panel (Ricp) |
| 5 | Blower Motor - Front |
| 6 | Air Conditioning (A/C) Motor Clutch |
| 7 | Stepper Motor (10 Off) |
| 8 | Ground |
| 9 | Supply |
| 10 | Duct Air Temperature Sensor (8 Off) |
| 11 | Sunload Sensor |
| 12 | Evaporator Temperature Sensor |
| 13 | Refrigerant Pressure Sensor |
| 14 | Humidity Sensor |
| 15 | In Vehicle Temperature Sensor |
| 16 | Pollution Sensor |
| 17 | Ambient Air Temperature (Aat) Sensor |
| 18 | Powertrain Control Module (Pcm) |
