WM, 508119 Removing And Installing Cross Panel (Disassembling Plenum Panel): Notes
TECHNICAL VALUES SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Screws securing cross panel to plenum panel |
Item 1 |
Tightening torque |
9 (6.5 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

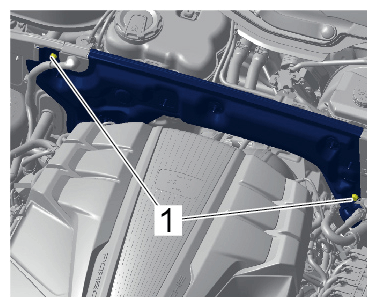

Screws on cross panel |
|
|
|
|
|
| coolant reservoir to body |
screw |
tightening torque |
8 (5.9 ftlb.) Nm |
|
|
