Wiring Diagrams: Wiring Diagram

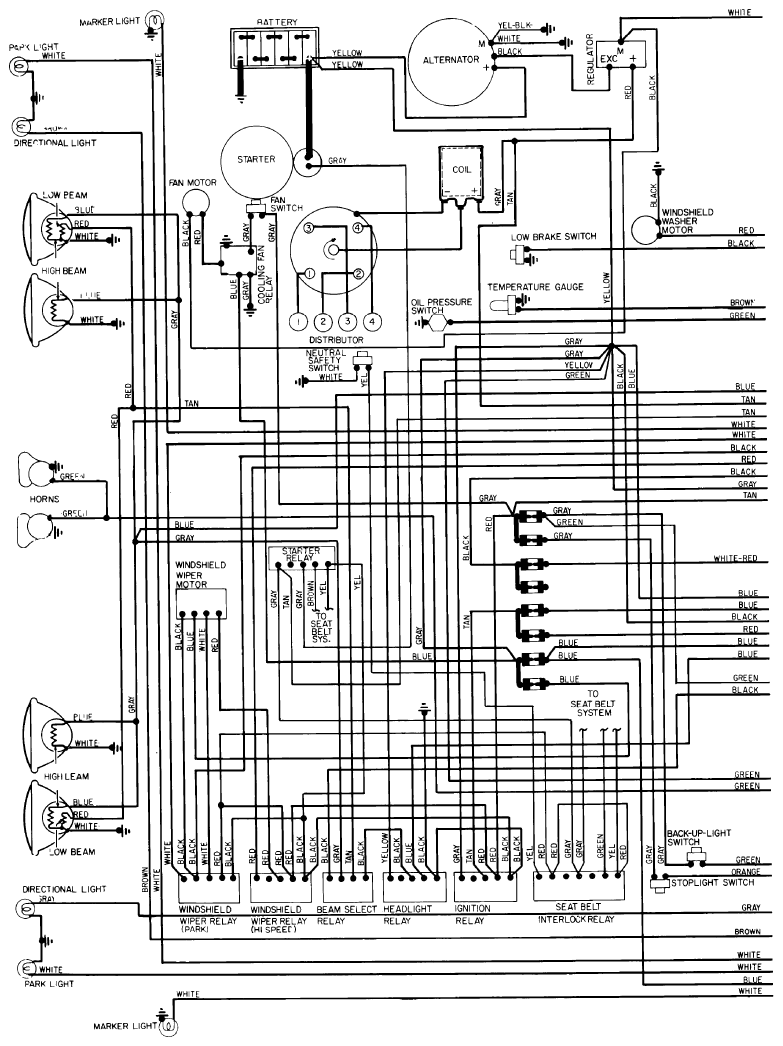

Fig 1: Wiring Diagram - R-12 (1 of 2)
Courtesy of AMERICAN MOTORS/RENAULT CORP.

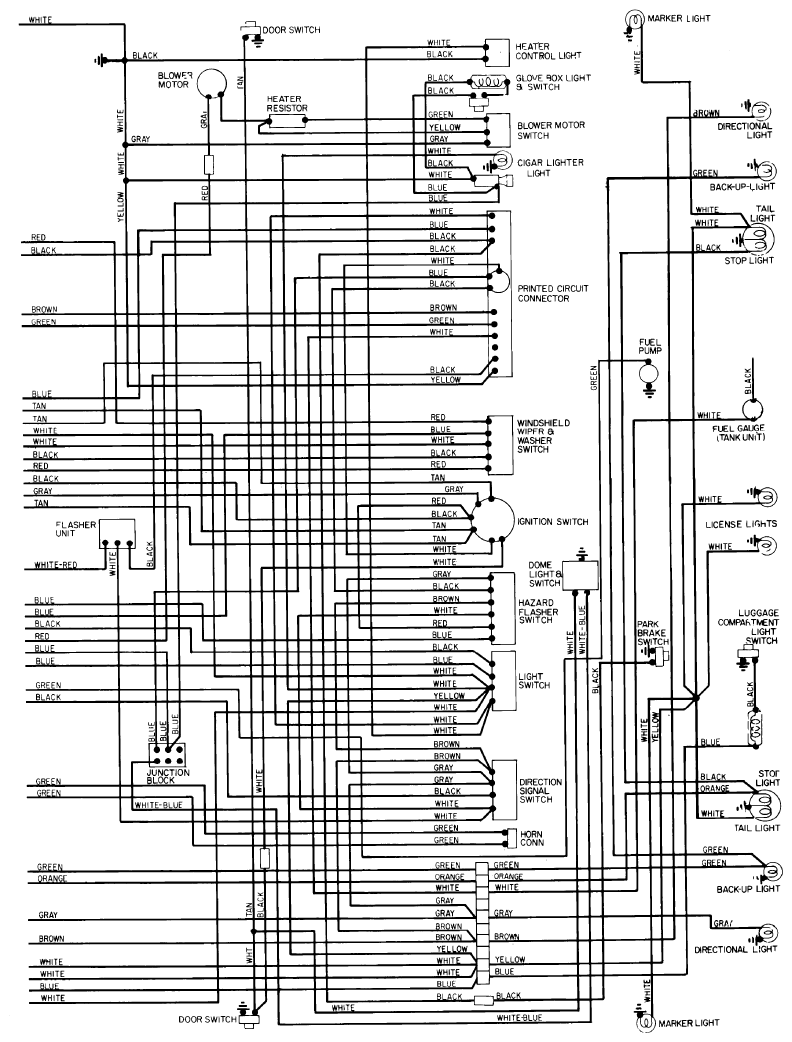

Fig 2: Wiring Diagram - R-12 (2 of 2)
Courtesy of AMERICAN MOTORS/RENAULT CORP.
Courtesy of AMERICAN MOTORS/RENAULT CORP.
Courtesy of AMERICAN MOTORS/RENAULT CORP.
