Emission Control Systems: Diagrams

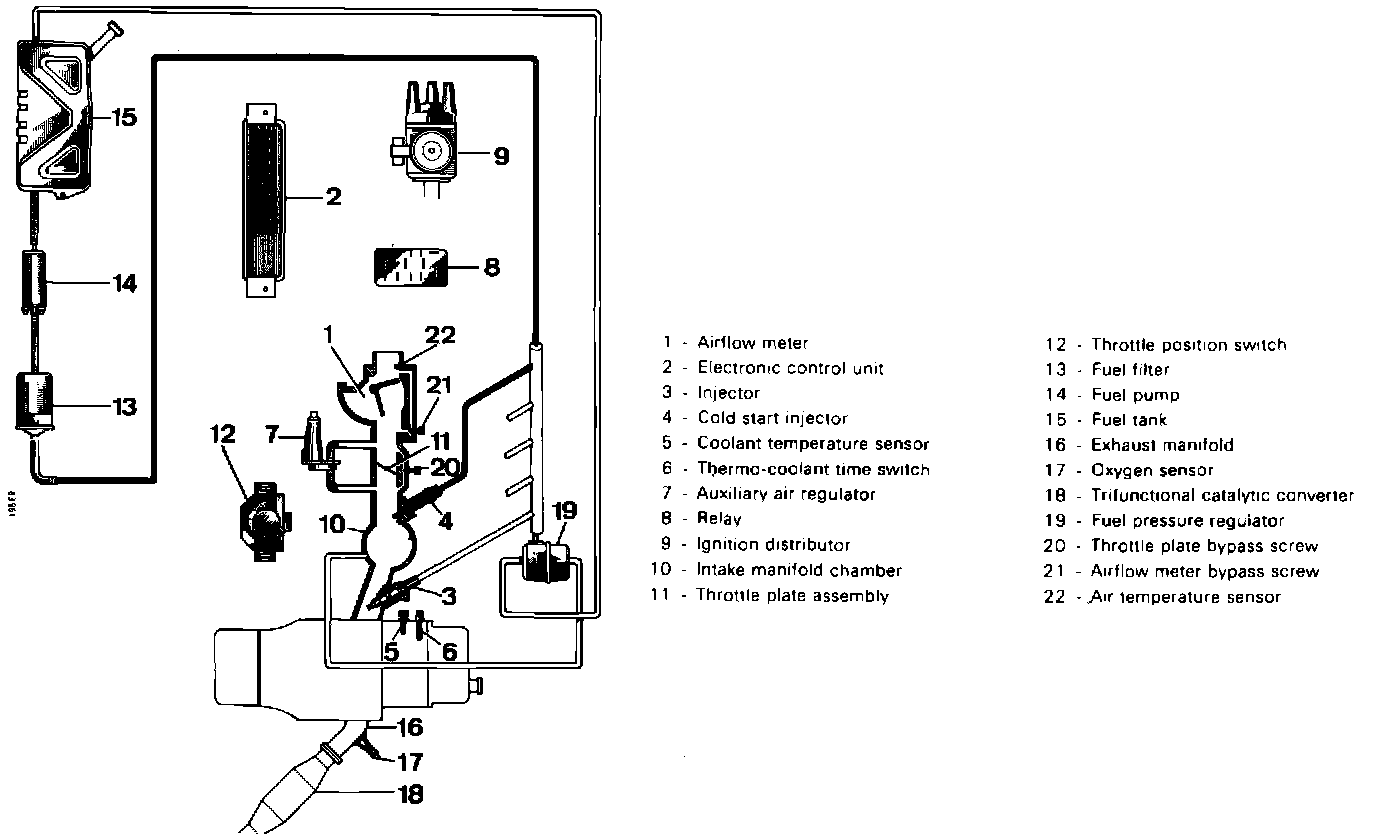

Fig.24 - Bosch L-jetronic Fuel Injection & Emission Control System:
