Renault
>>
1987
>>
Fuego L4-2165cc 2.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>
Fuel Injection System Components. Fuego Turbo
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuel Injection System Components. Fuego Turbo

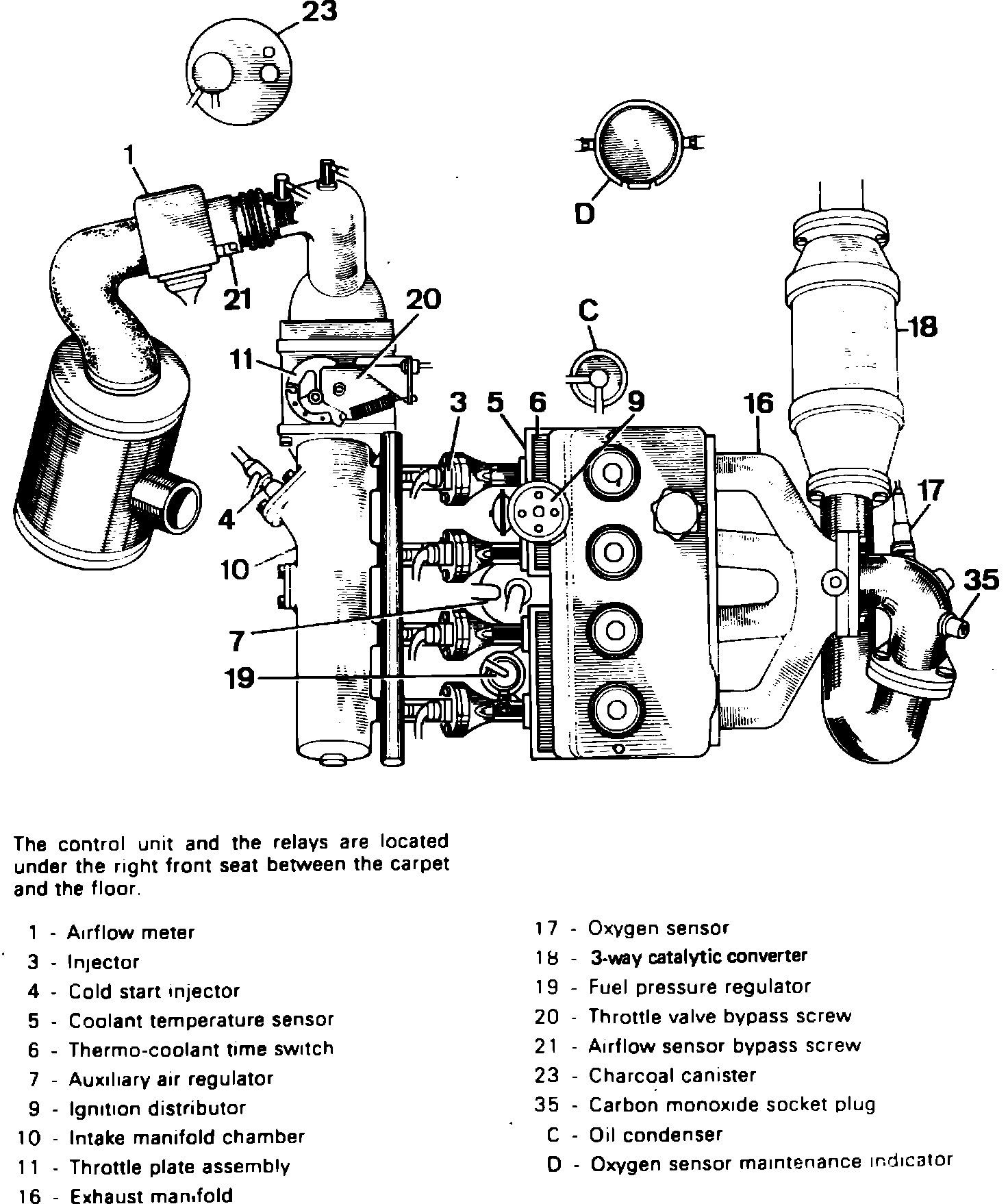

Fig. 1 Fuel injection system components.:
