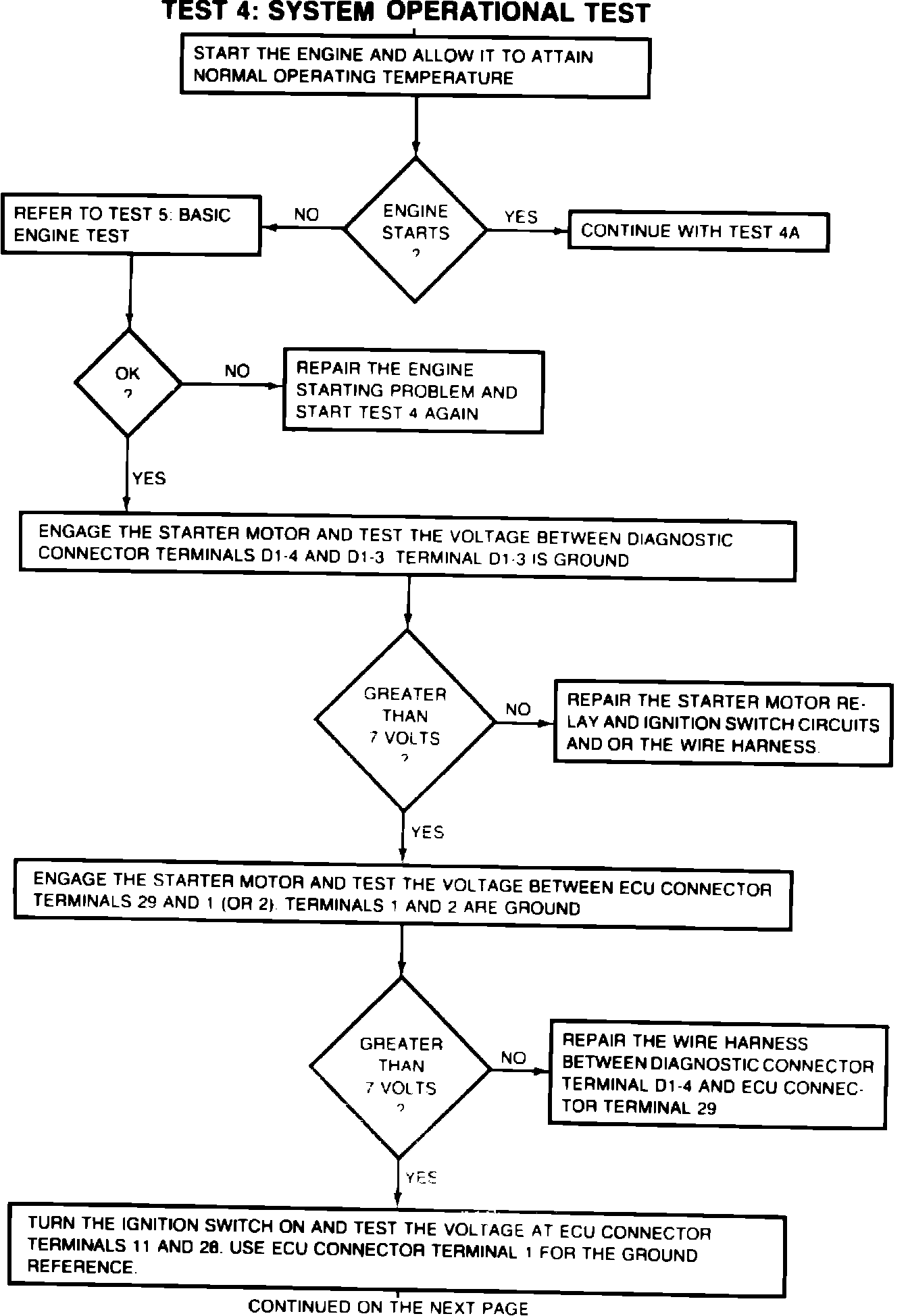

Test 4: System Operational Test

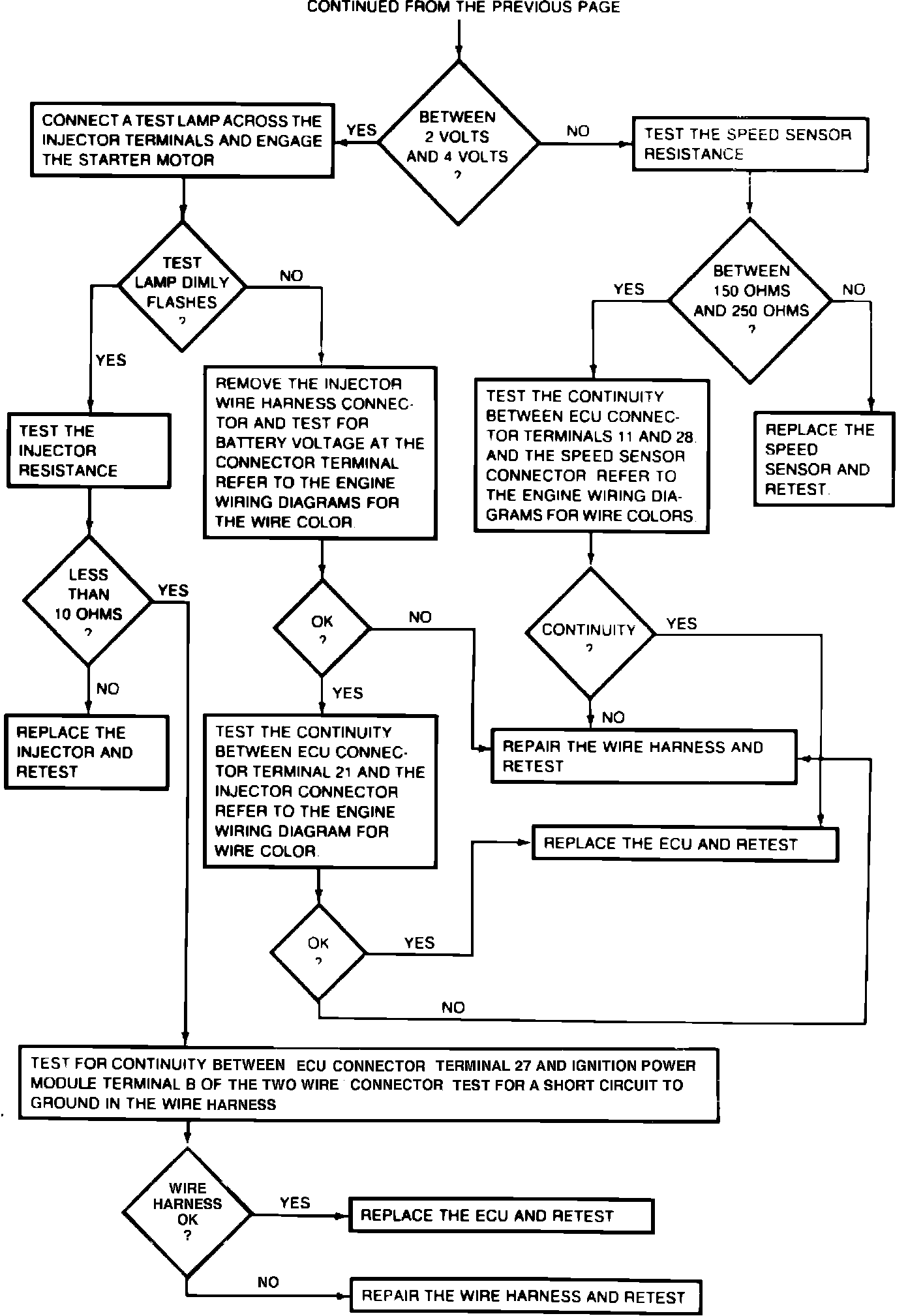

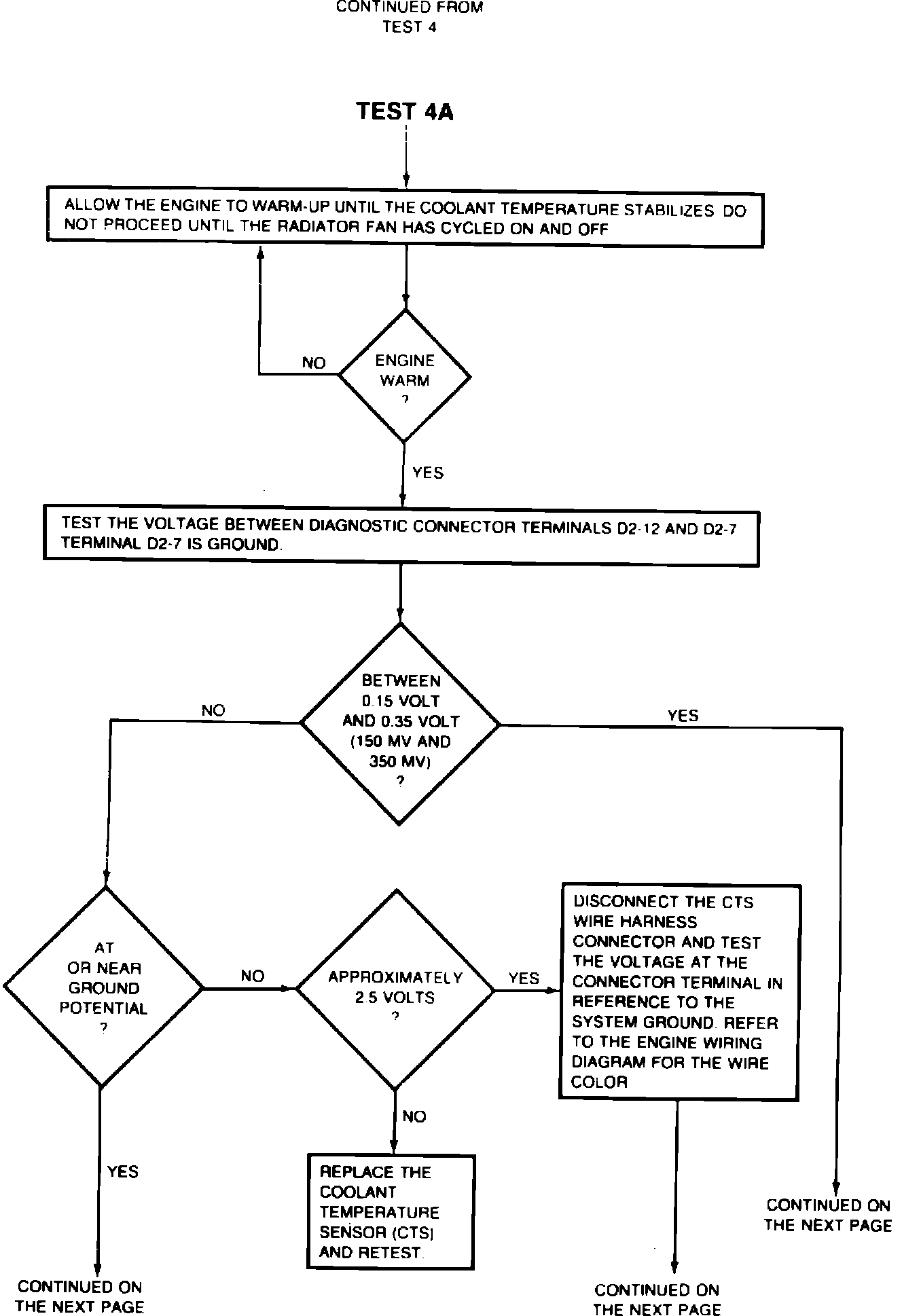

Fig. 7k Diagnostic chart:

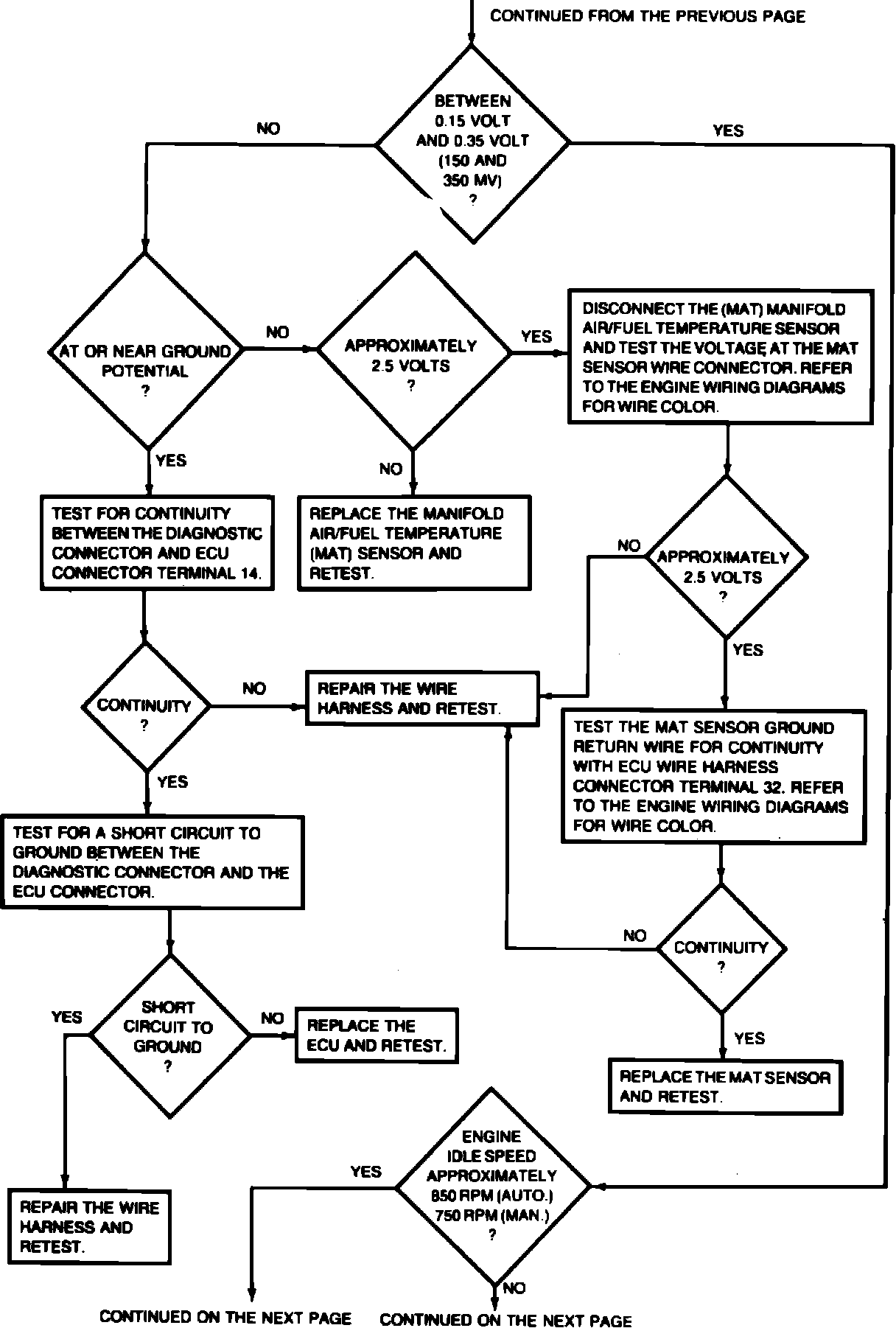

Fig. 7l Diagnostic chart:

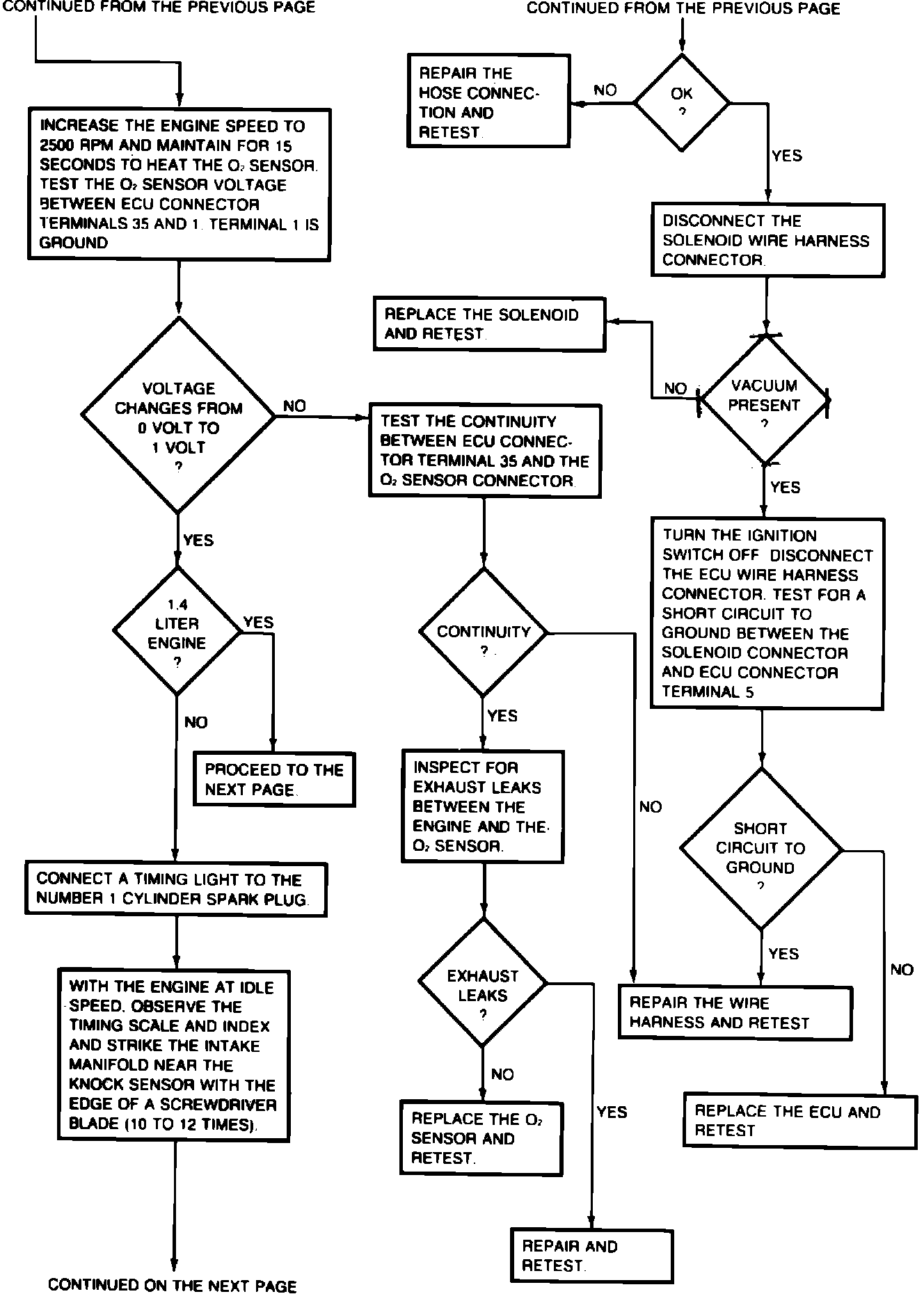

Fig. 7m Diagnostic chart:

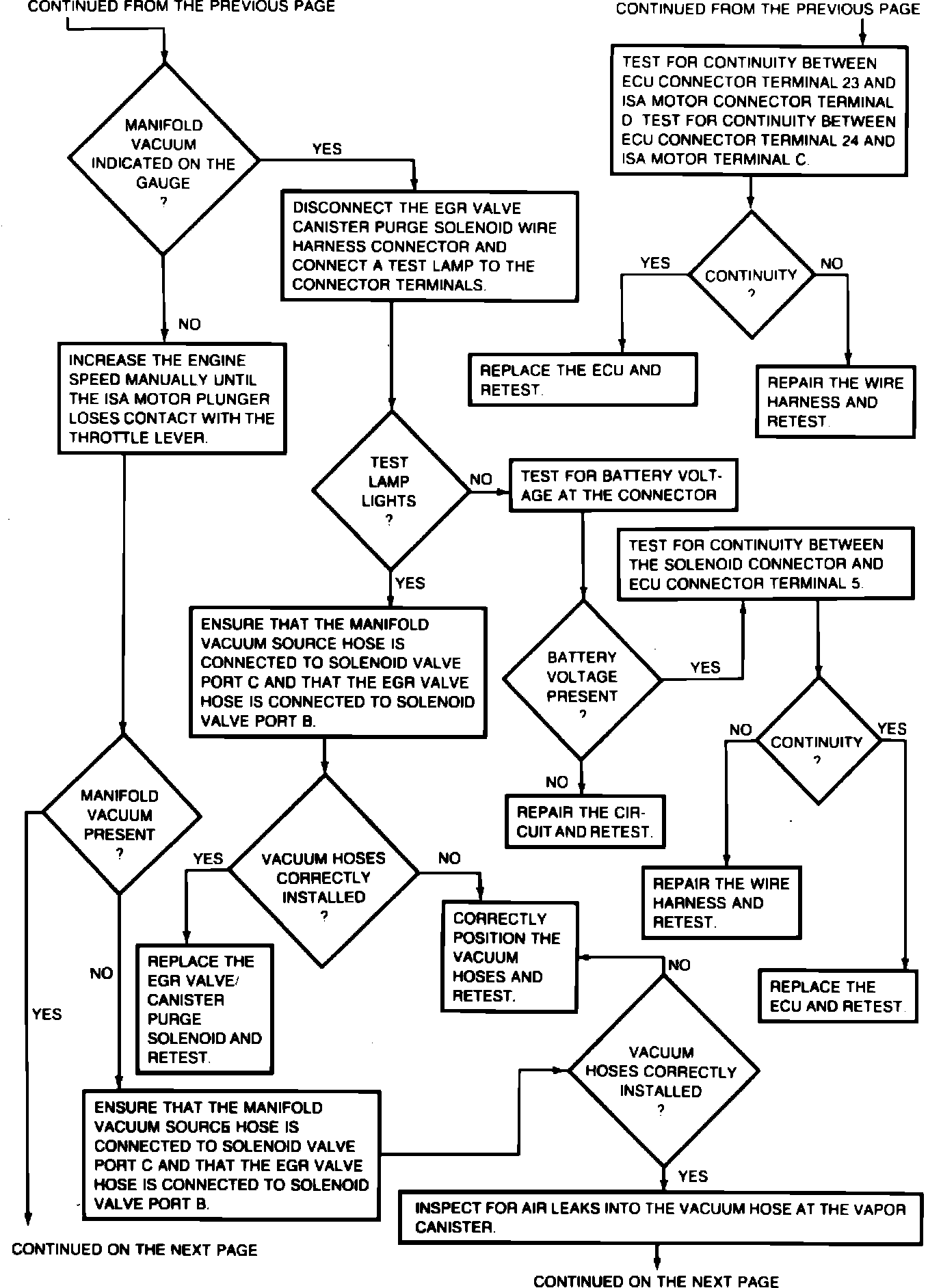

Fig. 7n Diagnostic chart:

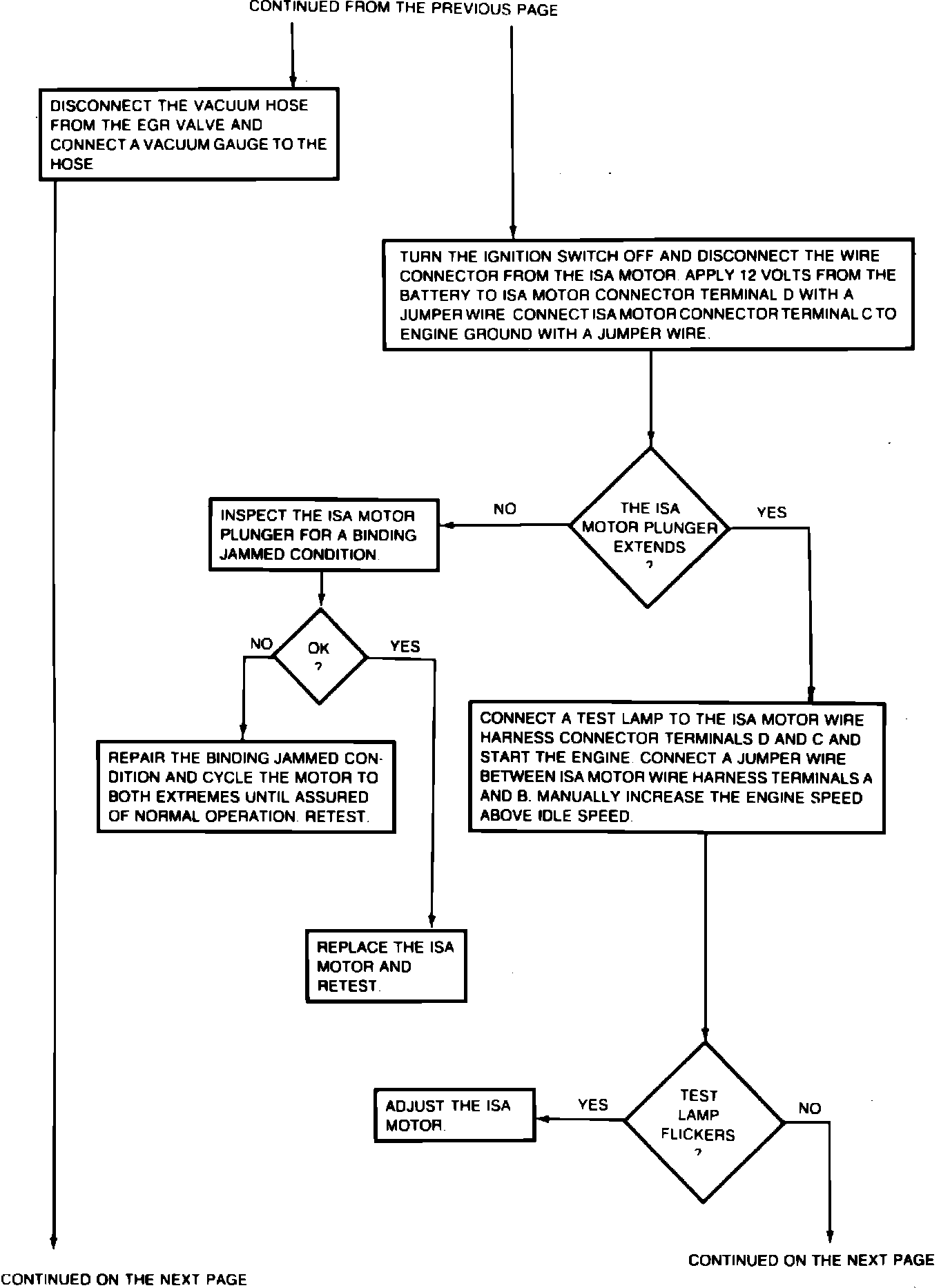

Fig. 7o Diagnostic chart:

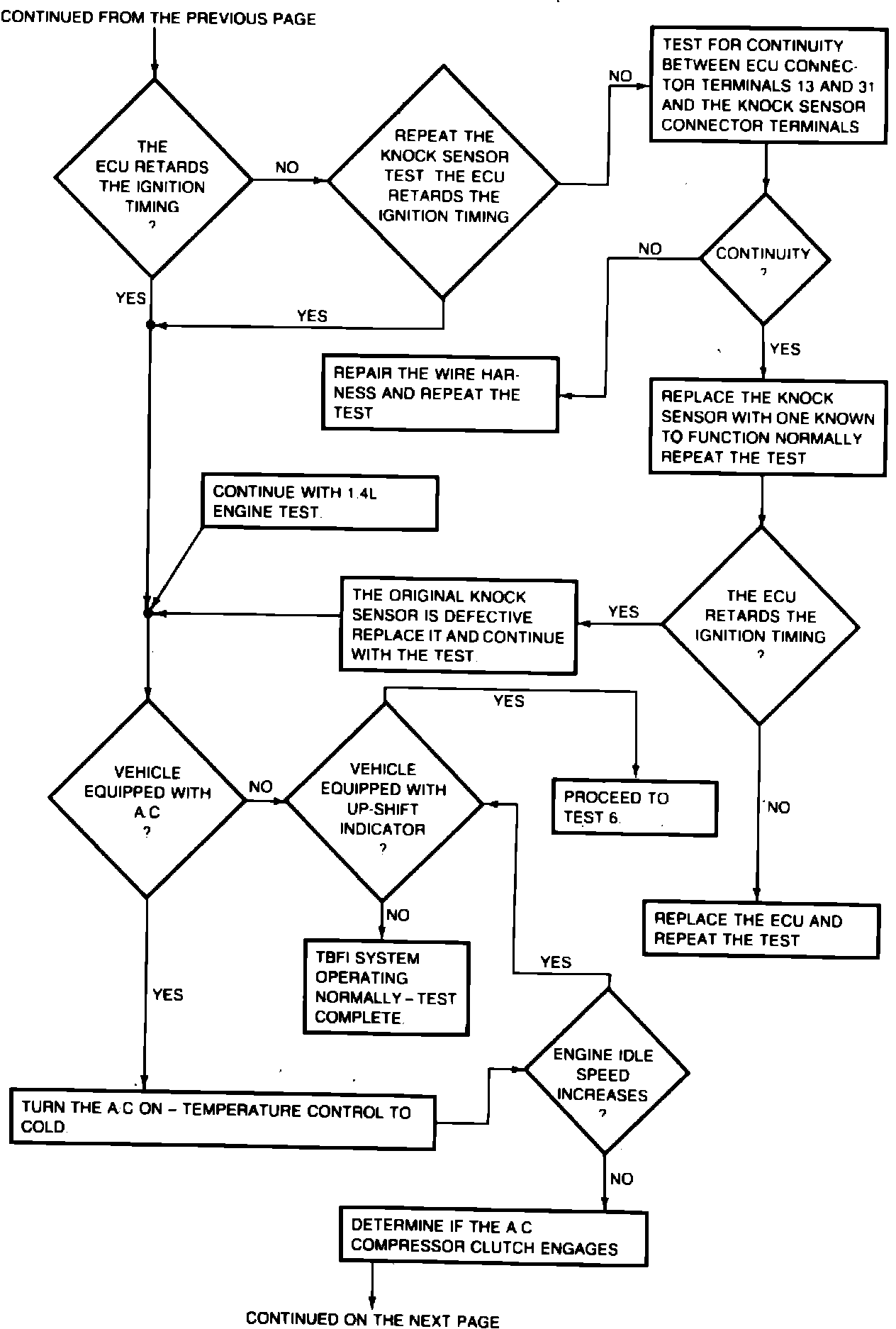

Fig. 7p Diagnostic chart:

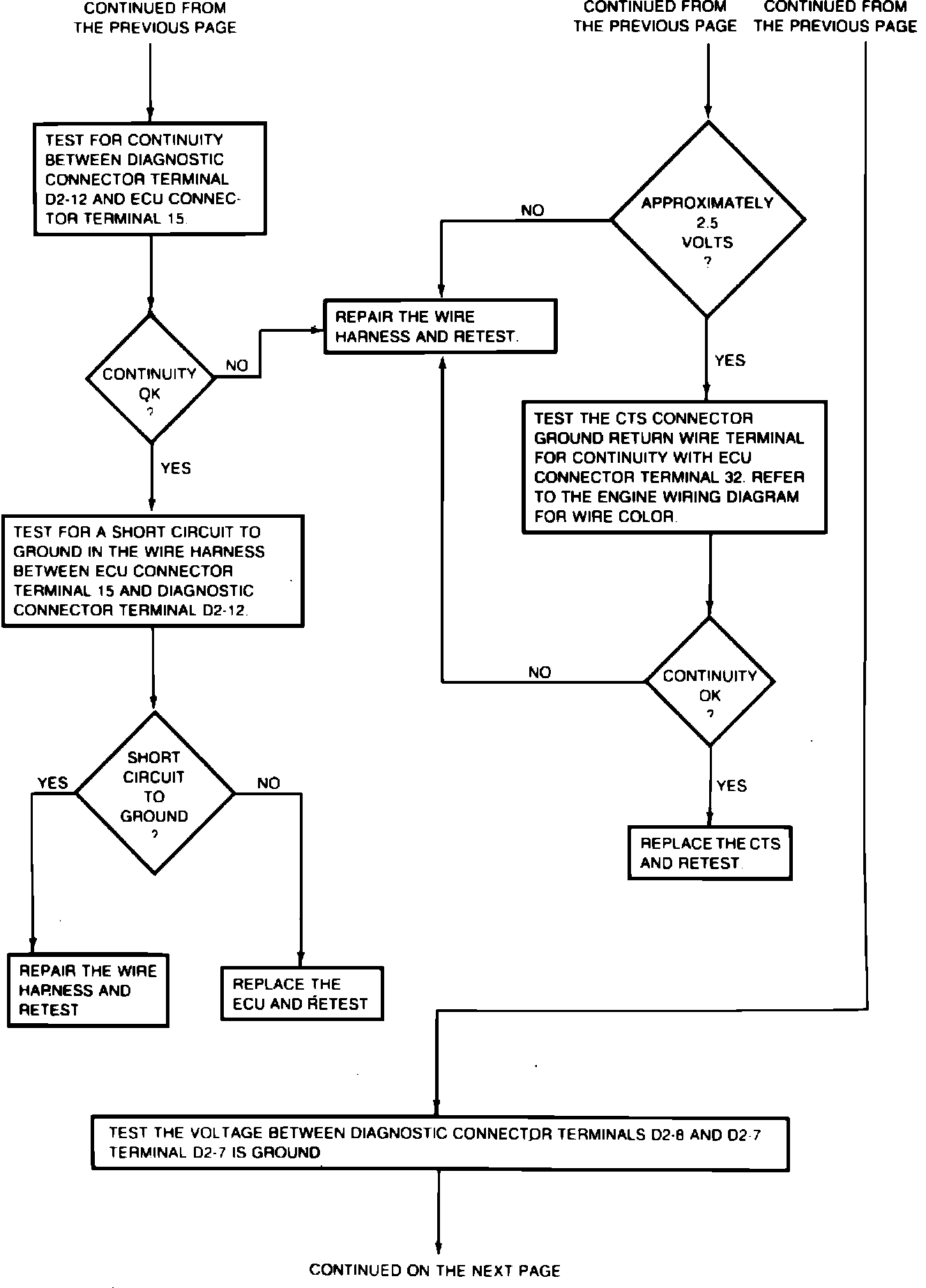

Fig. 7q Diagnostic chart:

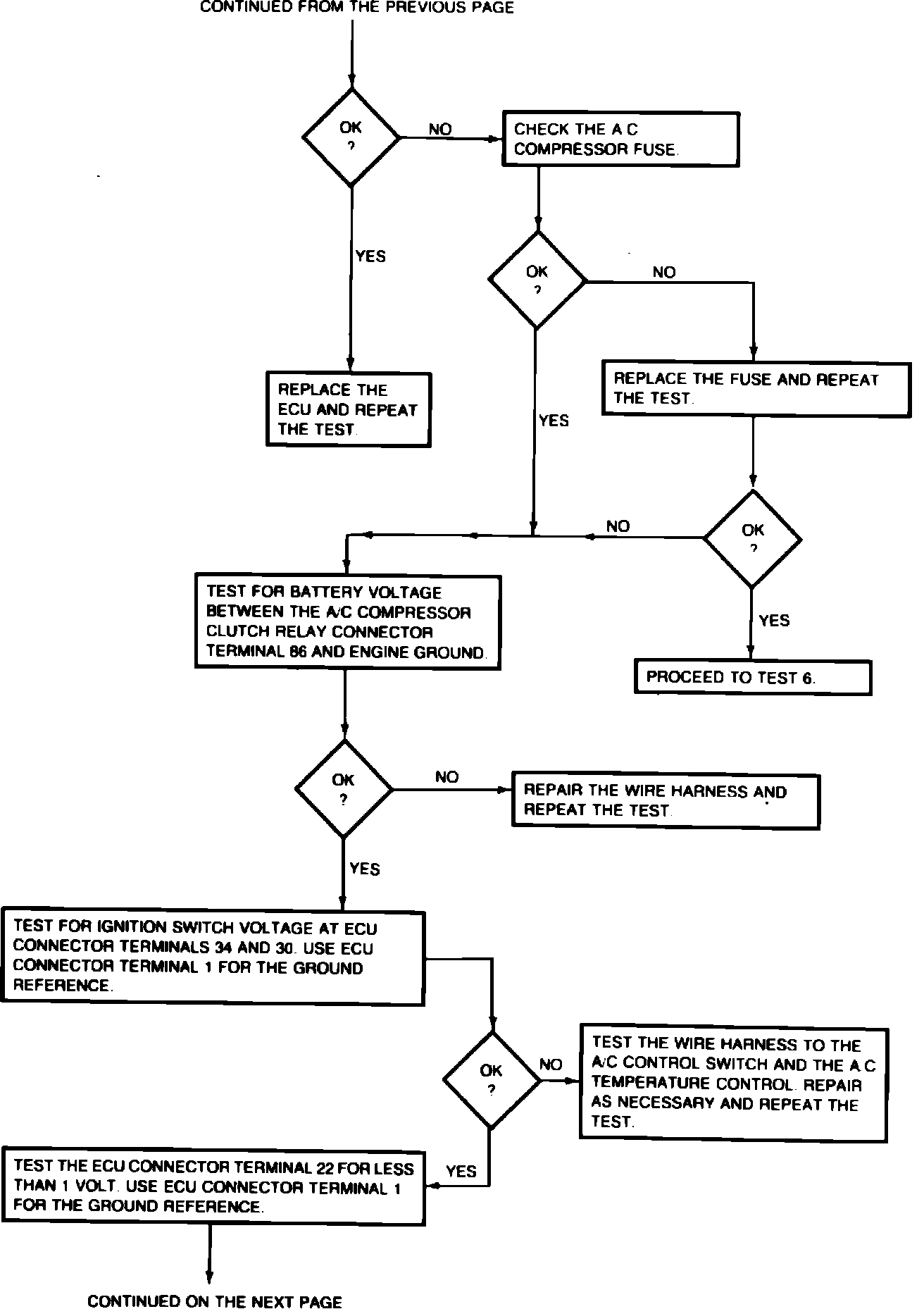

Fig. 7r Diagnostic chart:

Fig. 7s Diagnostic chart:

Fig. 7t Diagnostic chart:

Fig. 7u Diagnostic chart:
