Valve Body Assembly: Notes
CAUTION:
Valves and springs are not interchangeable. See VALVE BODY SPRING IDENTIFICATION

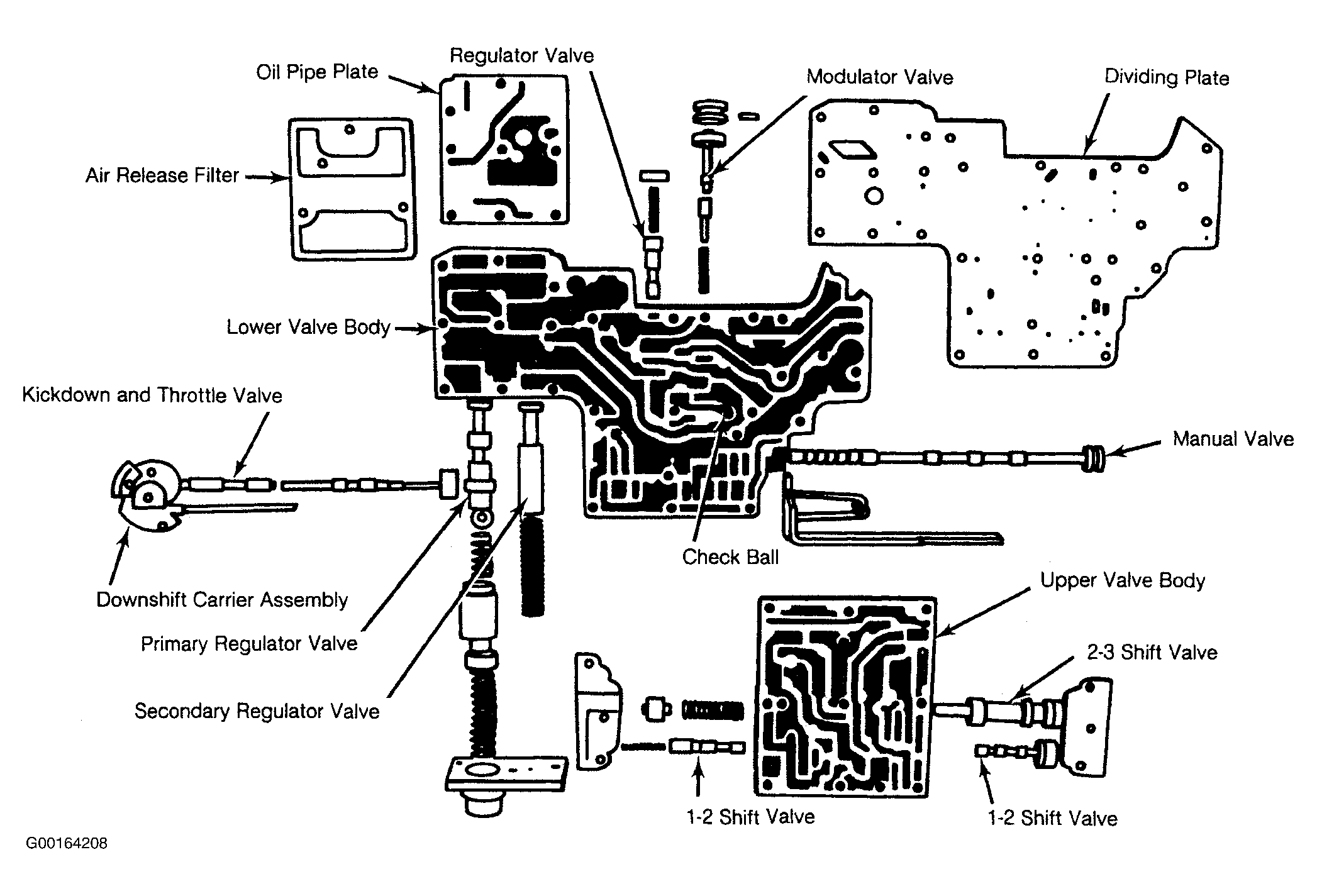

table. All parts must be installed in the correct order in proper valve body bore. See Figure
.
NOTE:
As valve trains are removed from each valve body bore, place individual parts in correct order and in relative position to valve body to simplify reassembly.
