Head Height

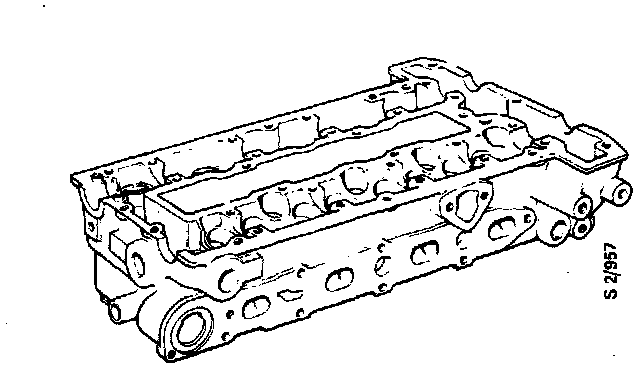

Cylinder Head:





Cylinder Head Height:
New head 140.5 ± 0.1 mm (5.533 ± 0.004 in)
Minimum after regrinding 140.1 ± 0.1 mm (5.516 ± 0.004 in)
