Throttle Position Switch: Service and Repair

Throttle Position Switch





Removal

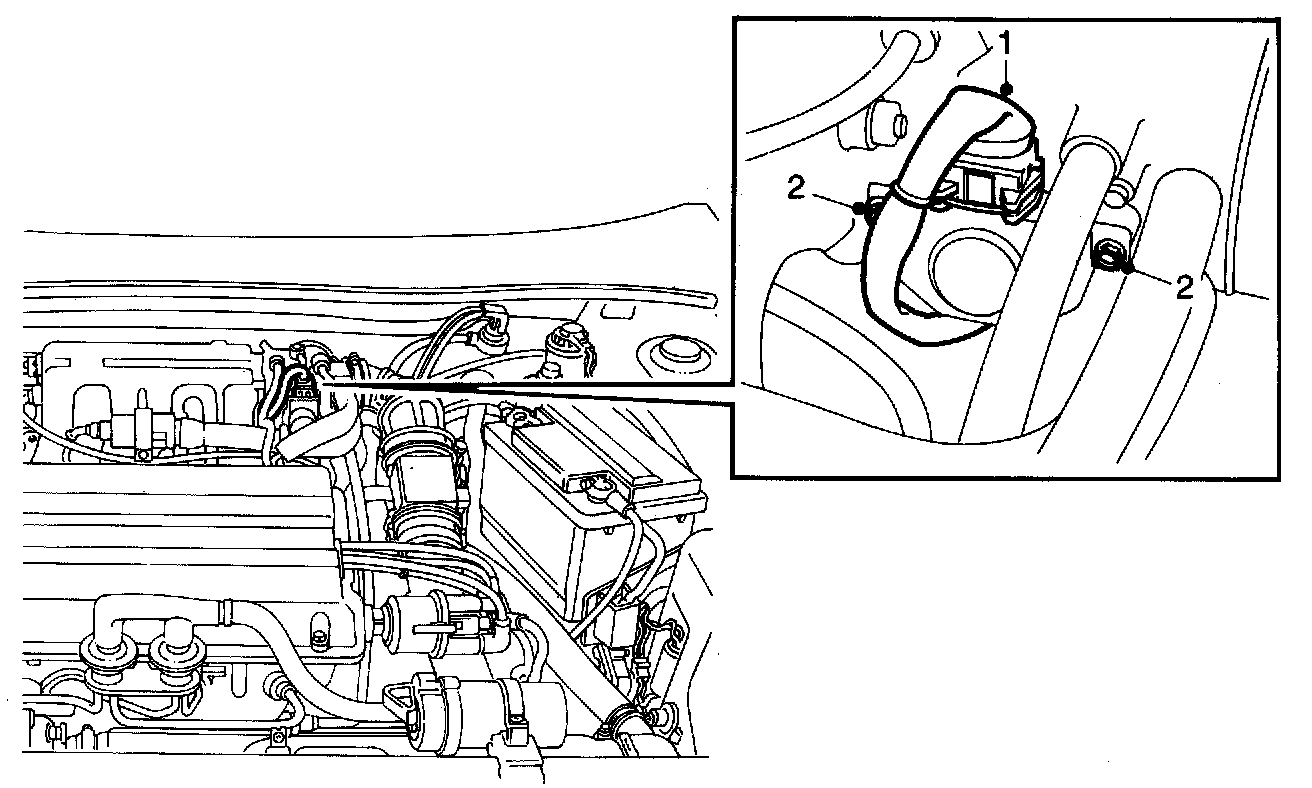

1 Unplug the throttle position switch connector.

2 Remove the retaining bolts and lift out the throttle position switch.


Fitting

Fit the throttle position switch in reverse order.

Adjust the switch until it is correctly positioned. It should be closed in the closed throttle position.

Tighten the bolts.

Check the setting. When the throttle butterfly leaves the closed throttle position a clicking sound should be heard from the switch.
