ETS Control Unit

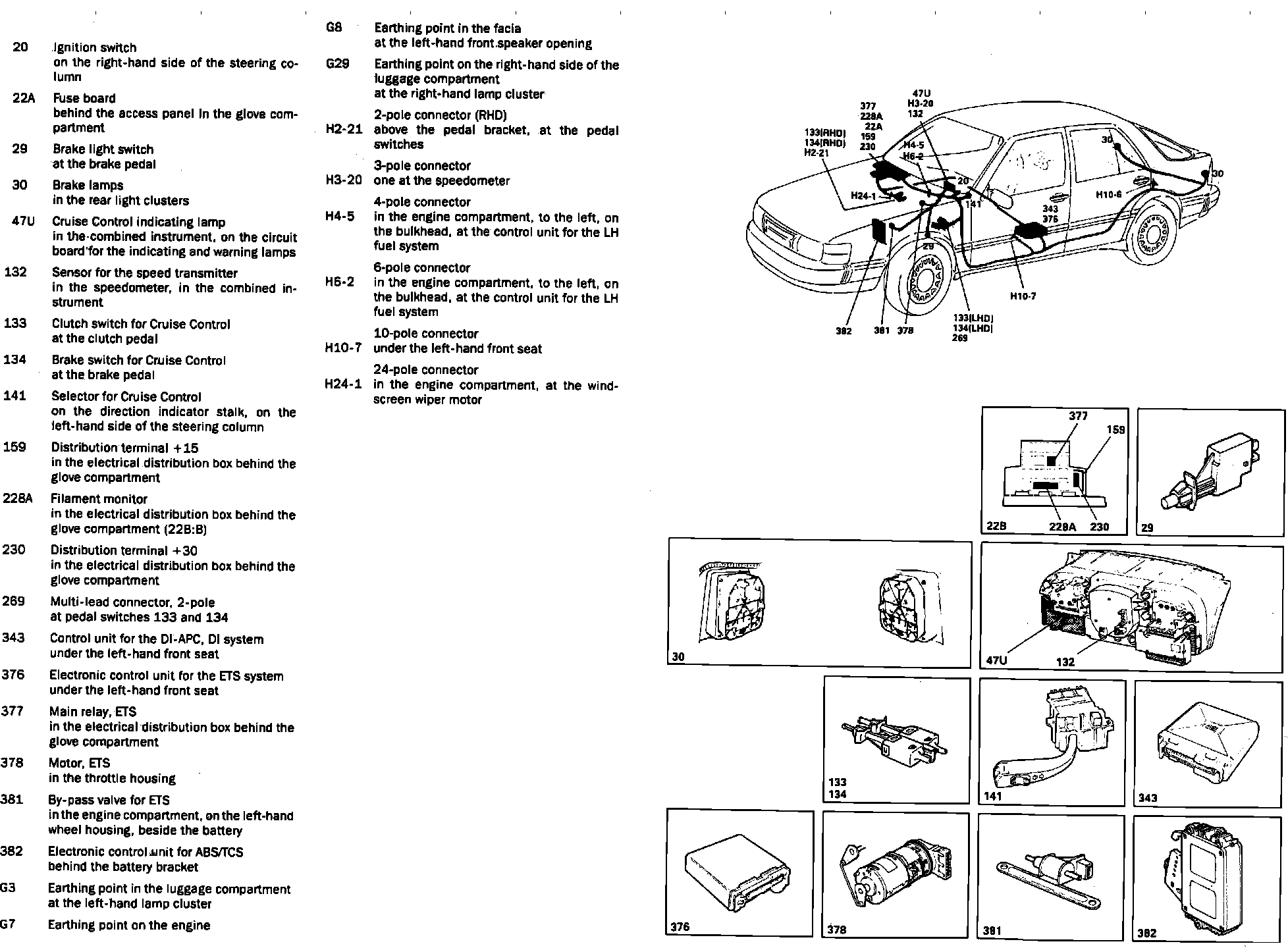

Cruise control system component locations.:

Under LH Front Seat

Applicable to: With ETS

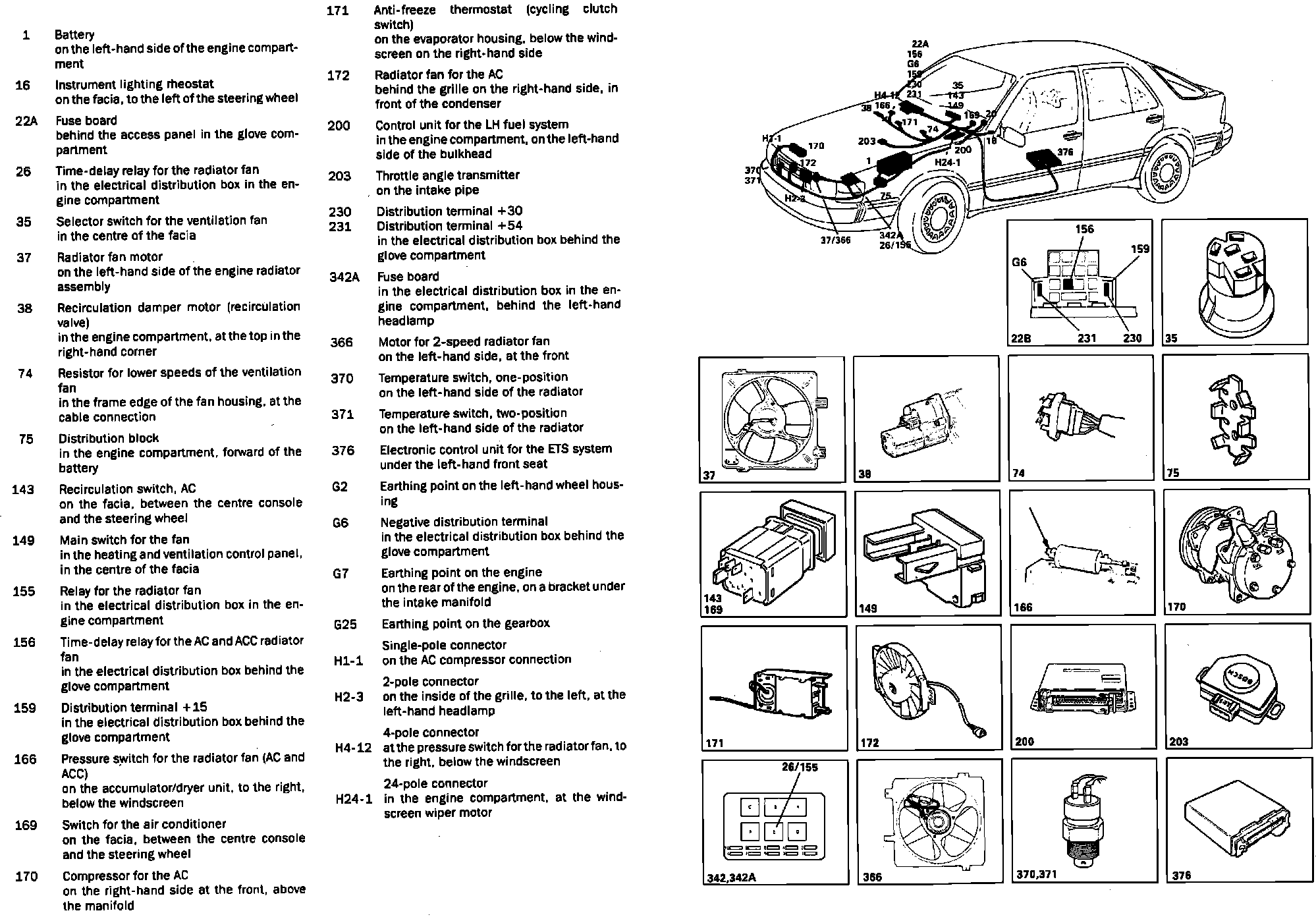

A/C system component locations:

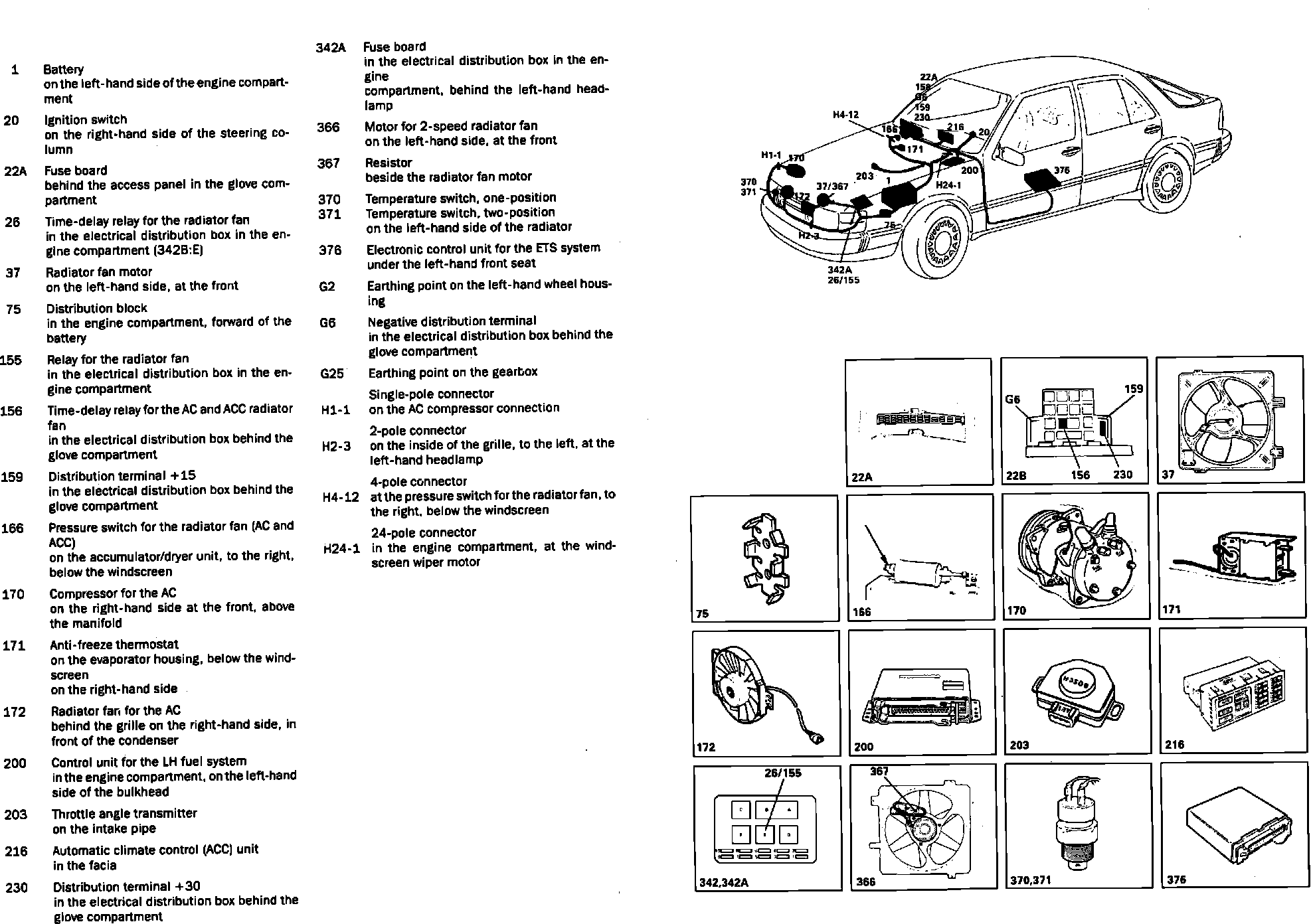

Automatic climate control (compressor & radiator fans) component locations:

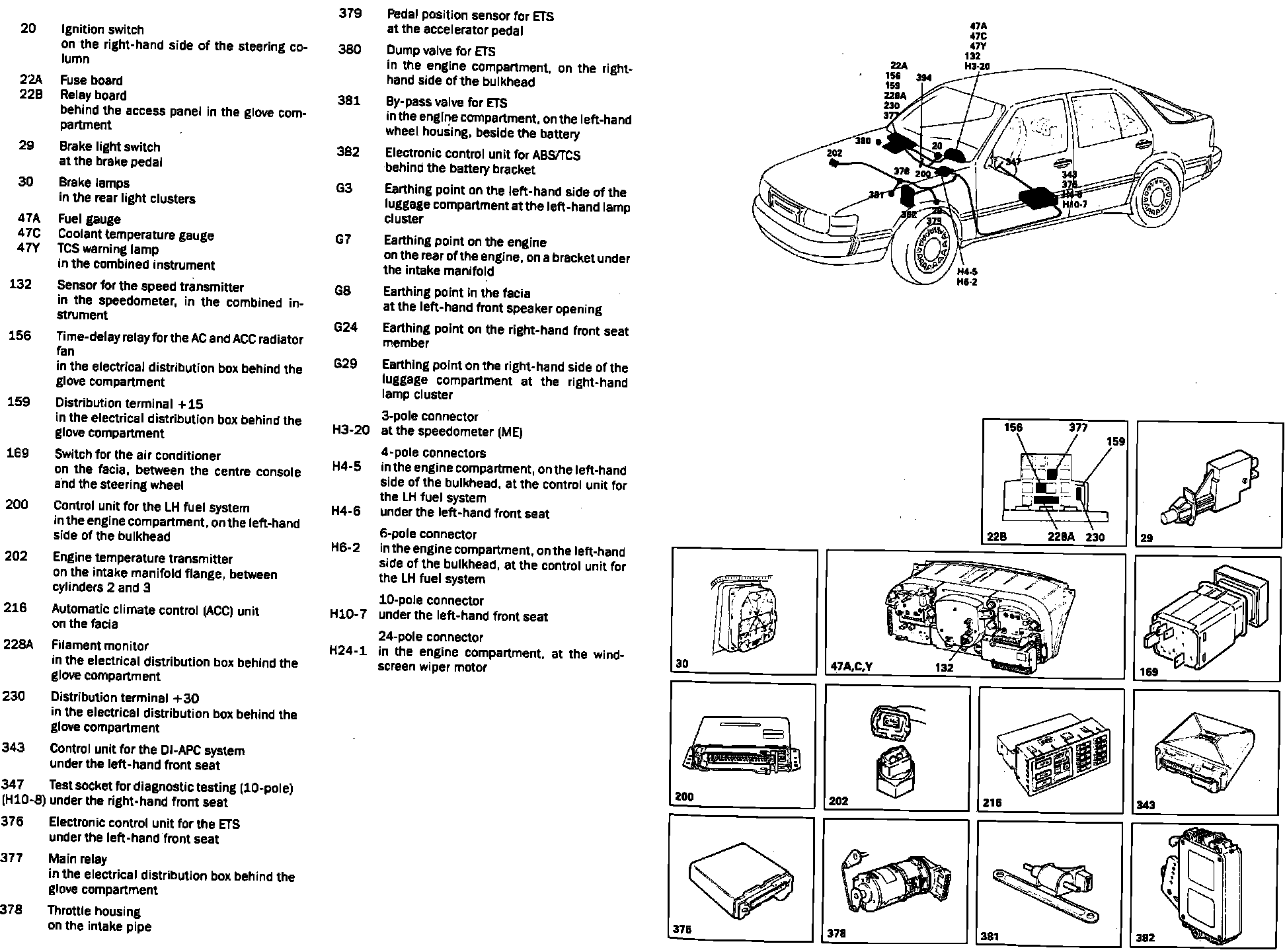

Electronic Throttle Control (ETS) system component locations:

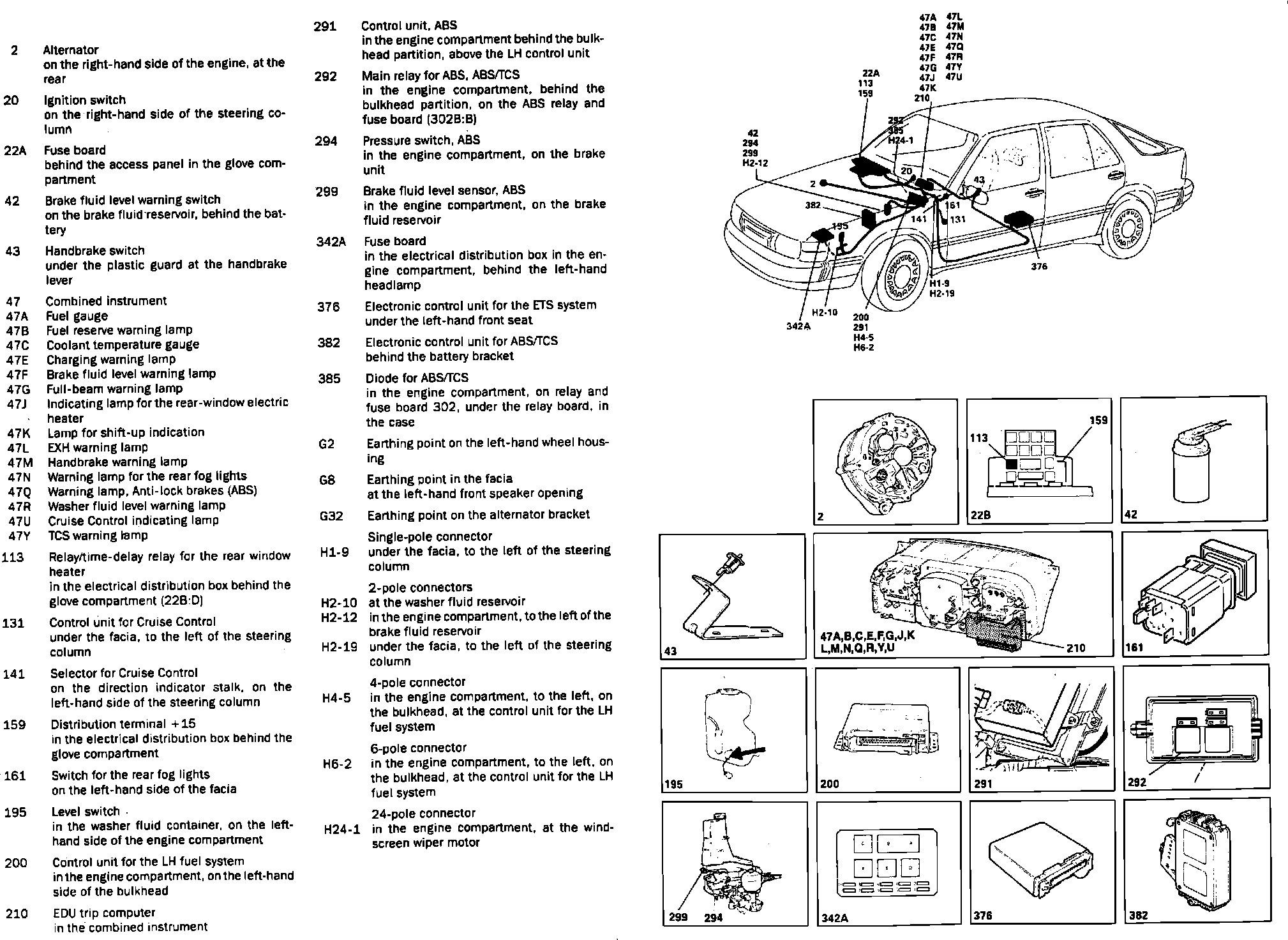

Indicating & warning system component locations:

Under LH Front Seat
