Control Module HVAC: Locations

LH 2.:

In Electrical Distribution Box Behind Glove Compartment

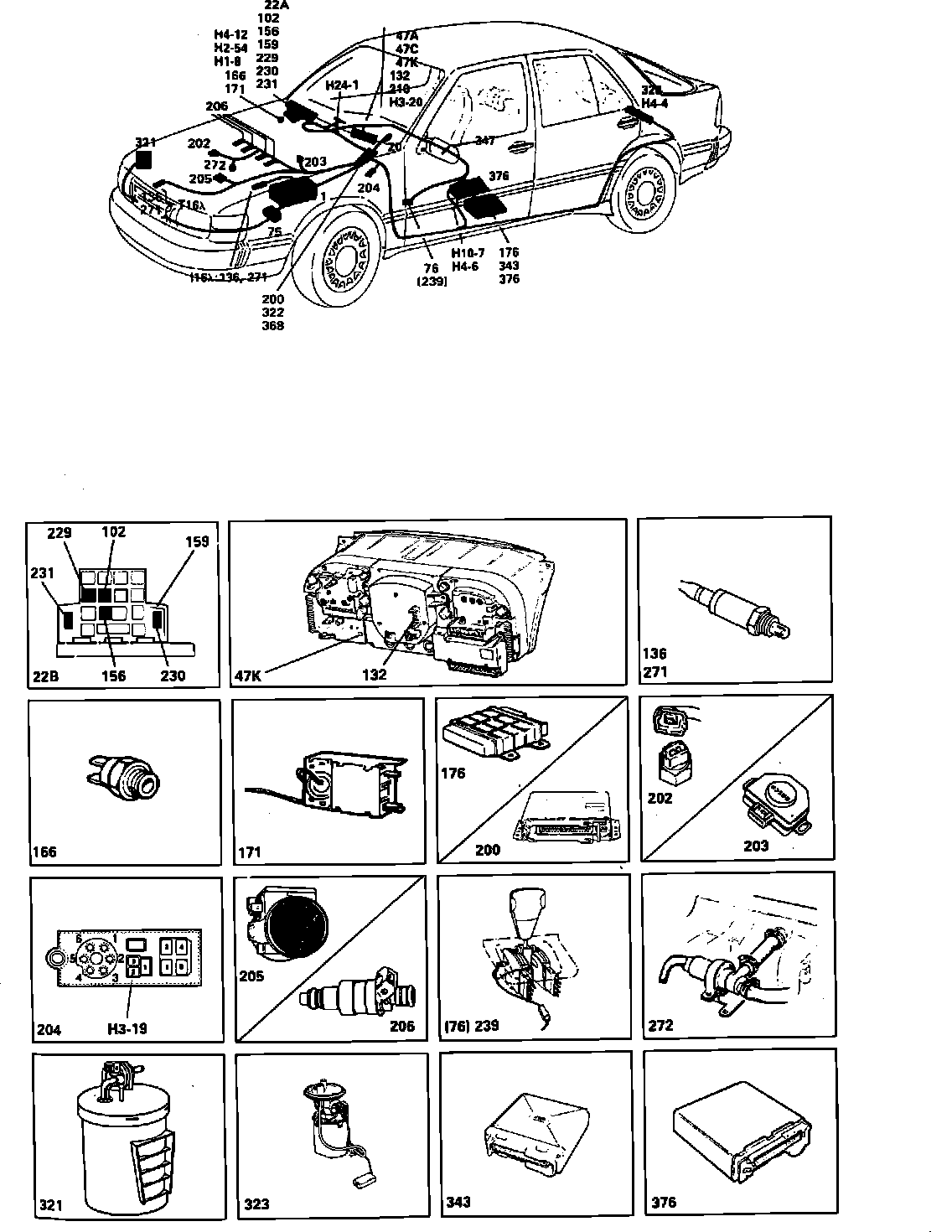

Applicable to: 4 fuel injection system component locations. Less ETS

LH 2.:

LH 2.:

In Electrical Distribution Box Behind Glove Compartment

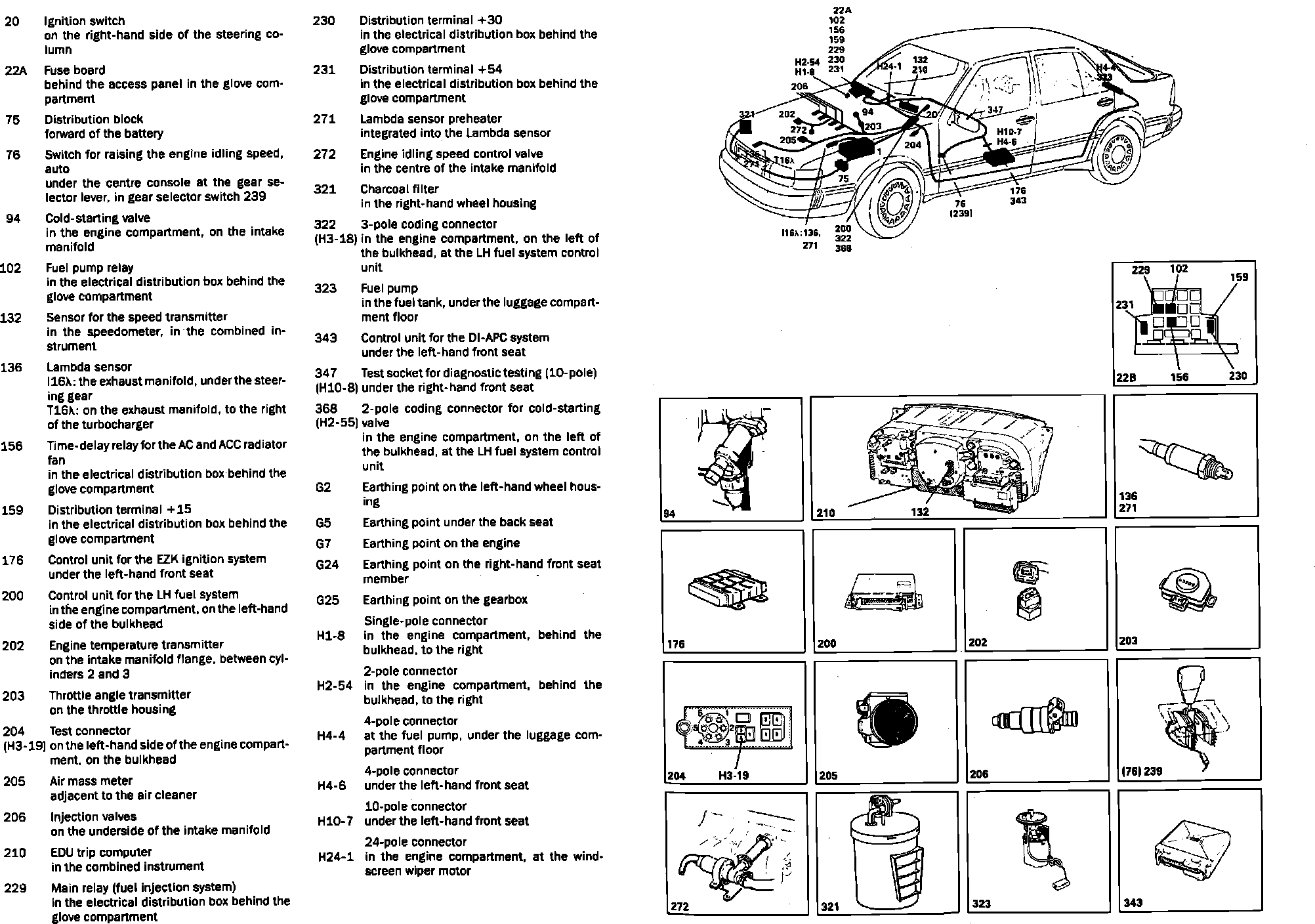

Applicable to: 4 & LH 2.4.2 fuel injection system component locations. With ETS

A/C system component locations:

Automatic climate control (compressor & radiator fans) component locations:

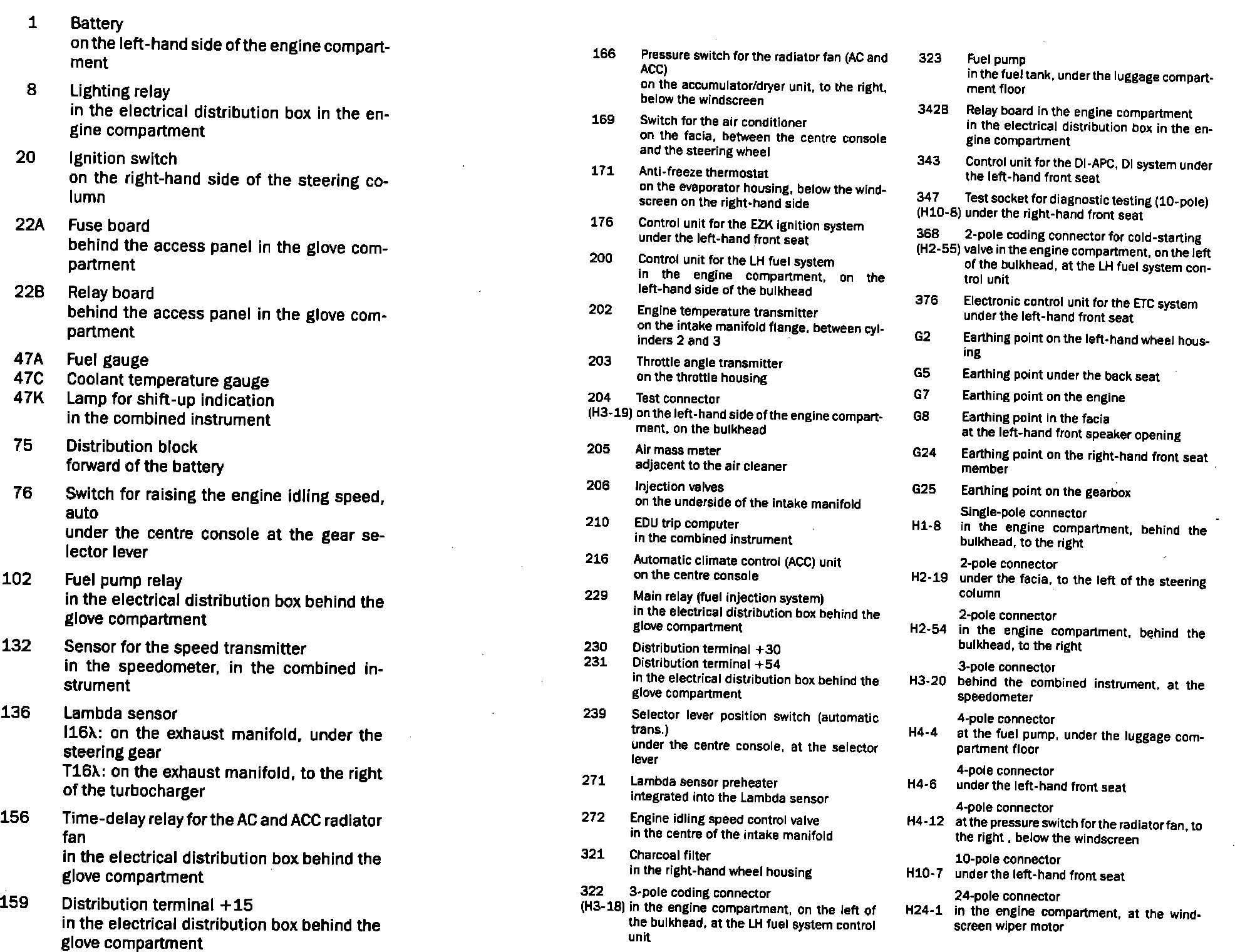

Electronic Throttle Control (ETS) system component locations:

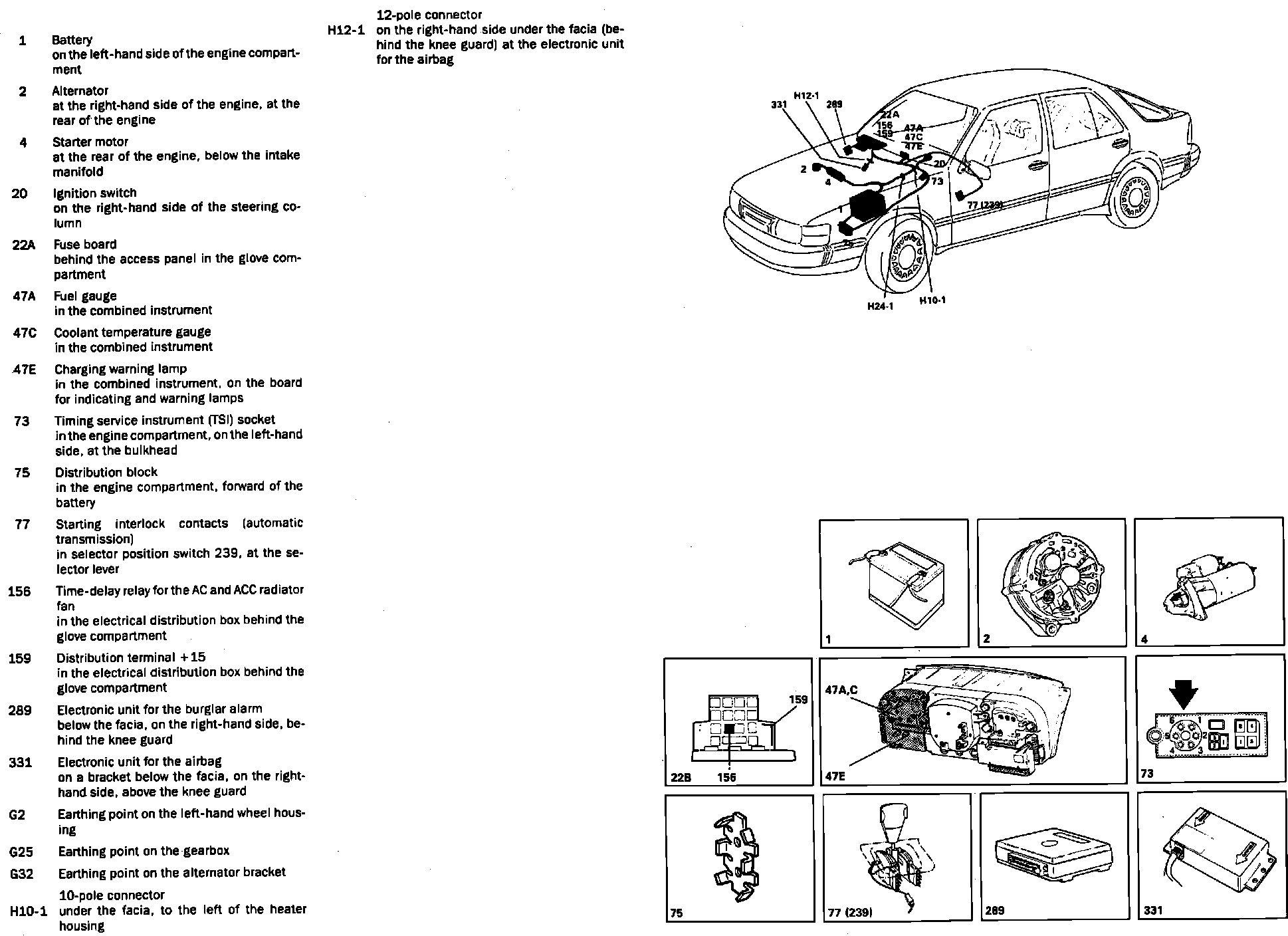

Starting & charging system component locations:

In Electrical Distribution Box, Behind Glove Compartment
