Boost Solenoid: Service and Repair

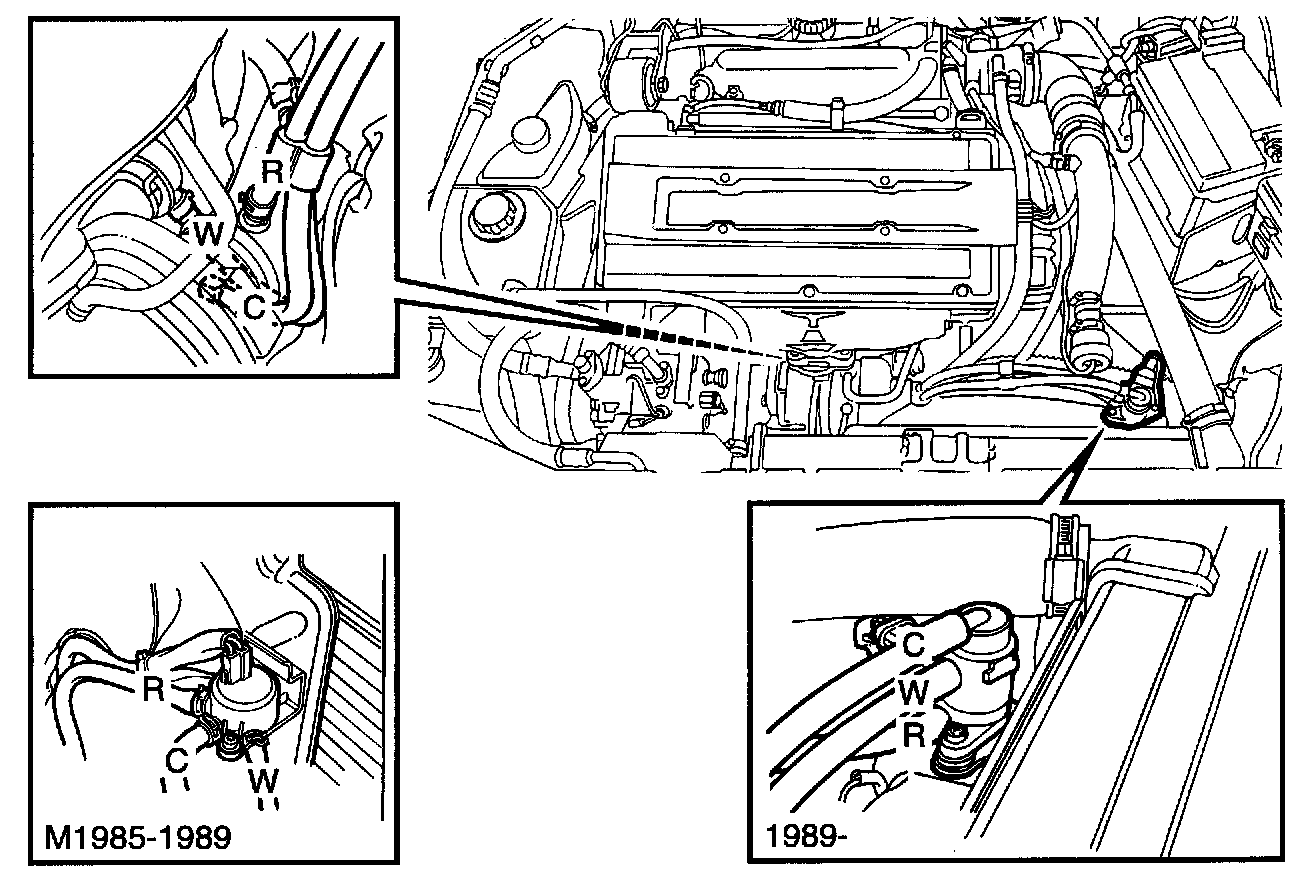

Boost pressure control valve





To remove

1 Unplug the boost pressure control valve's connector.

2 Undo the hose clips and disconnect the hoses from the valve.

3 Undo the bolts securing the valve to the fan cowl.


To fit

1 Position the boost pressure control valve correctly on the fan cowl and bolt it in place.

2 Connect the hoses to each fitting.

3 Plug in the valve's connector.
