Diagnostic Aids
ECU Connector:

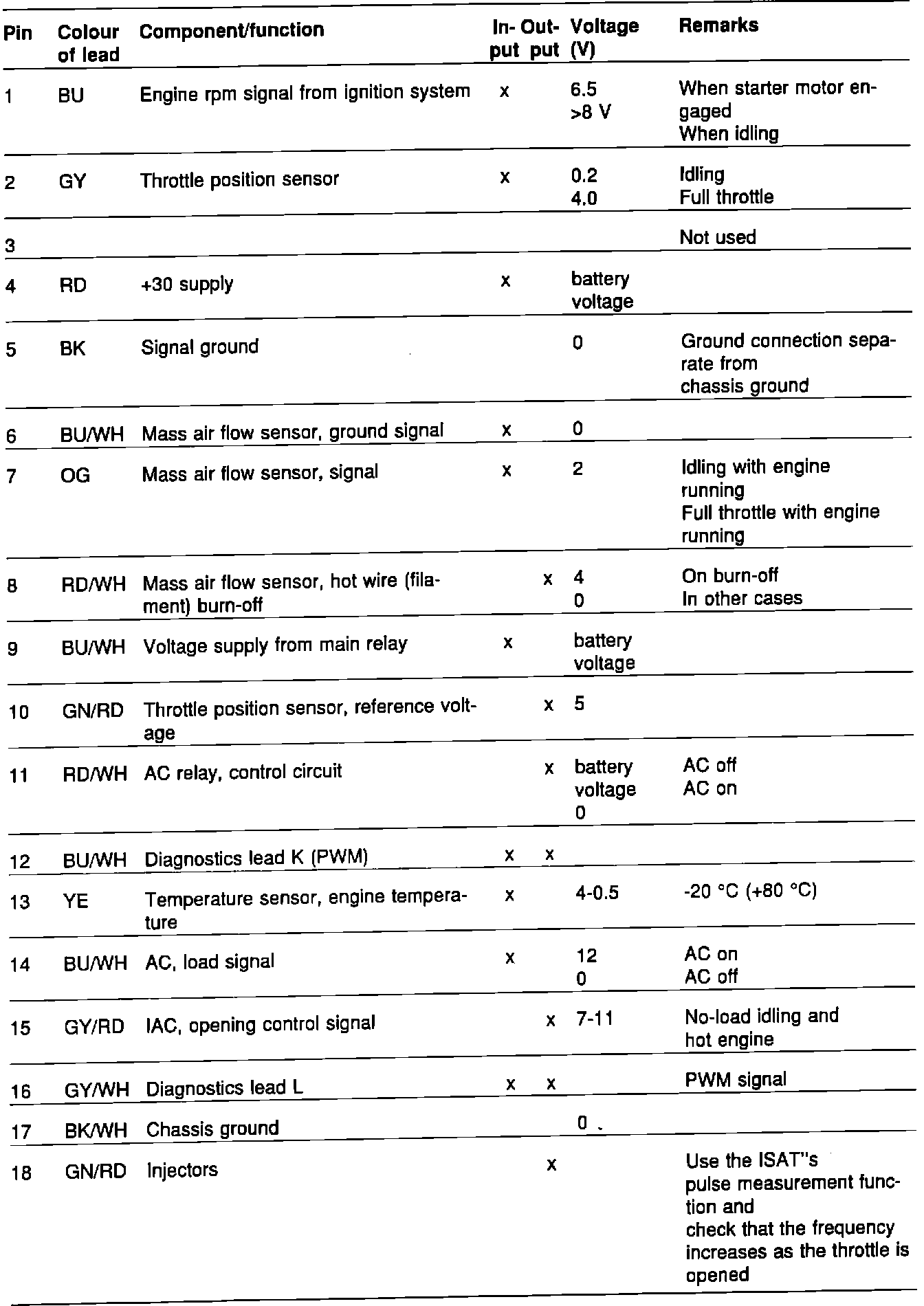

LH 2.4.2 Pin-Out/Terminal I.D. (1 - 18):

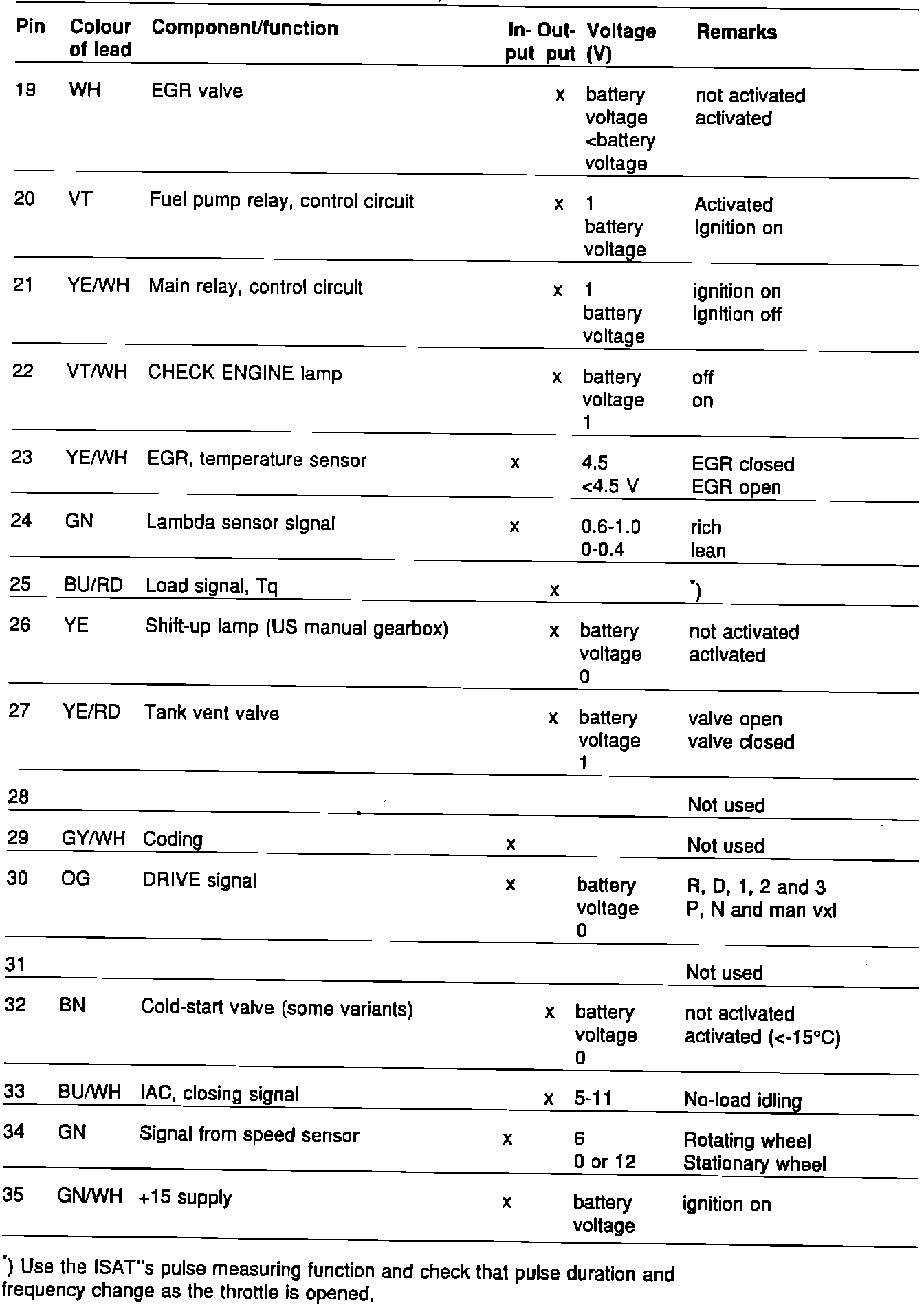

LH 2.4.2 Pin-Out/Terminal I.D. (19 - 35):

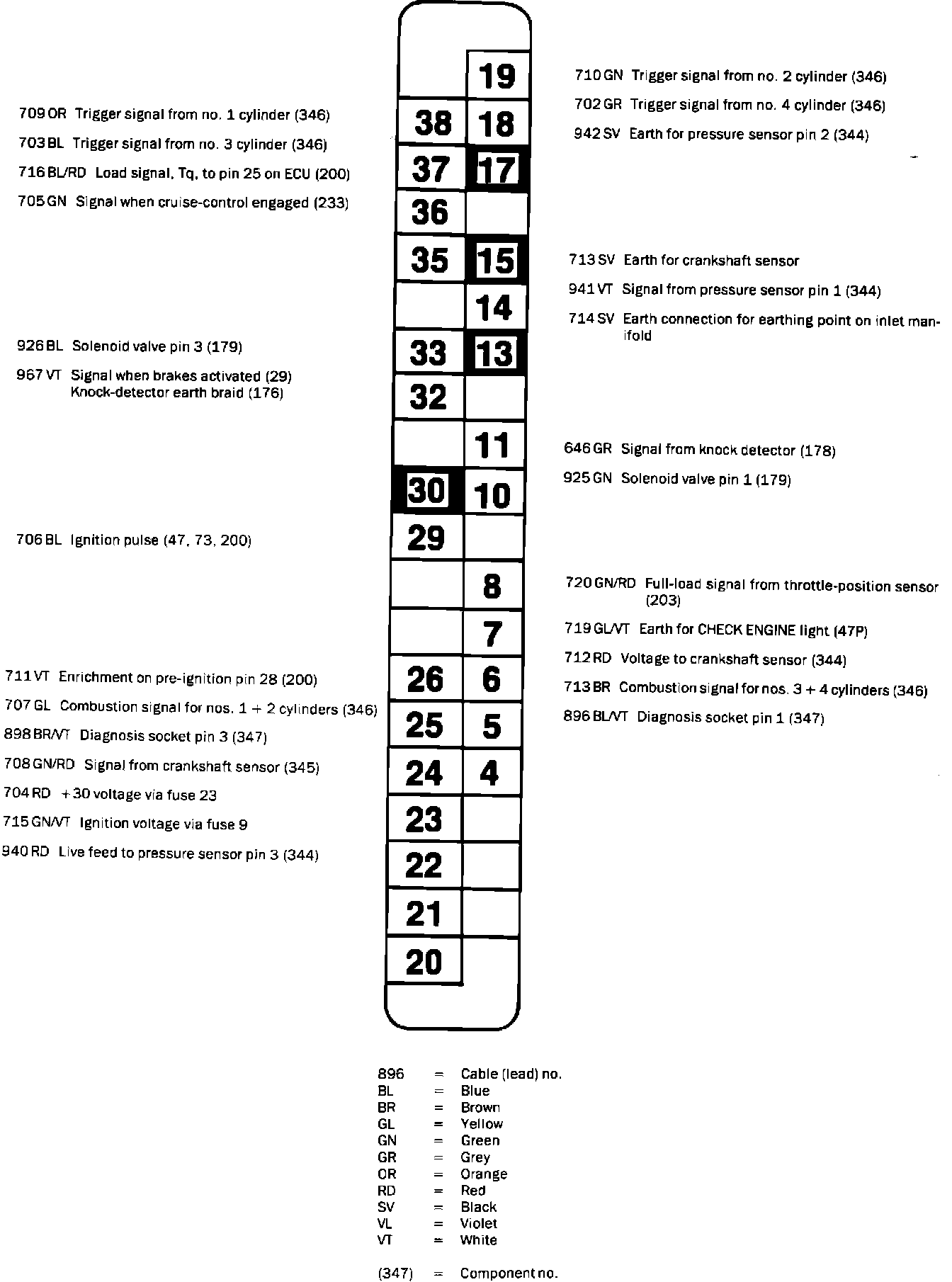

LH 2.4.2 Pin-Out/Terminal I.D. (2 - 34) Supplement:
