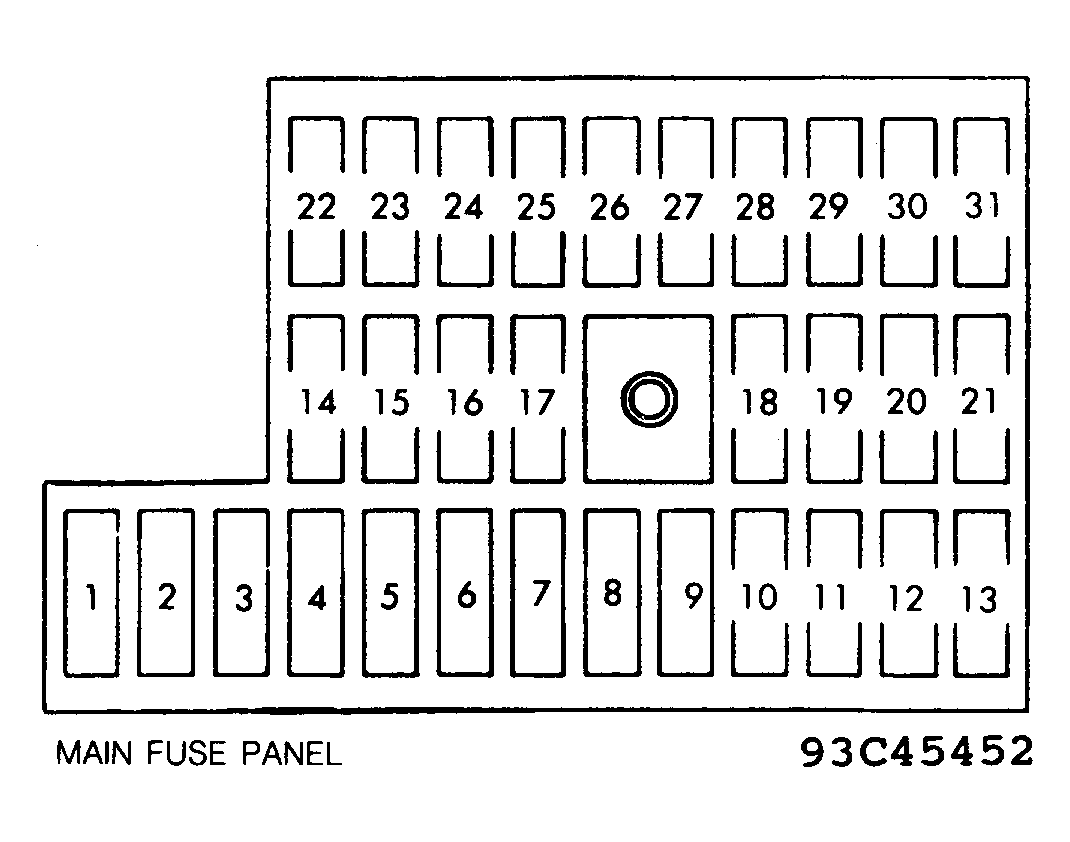

Main Fuse Panel Identification
- 1 - 10 Amp Lambda Sensor
- 2 - Blank
- 3 - 15 Amp (1989-93) Ignition System
- 4 - Blank
- 5 - 15 Amp Seat Belt Warning Lights
- 6 - 30 Amp A/C System
- 7 - 15 Amp Turn Signal Indicators, Tachometer, Alternator, Oil Pressure Warning Lights, Shift-Up Light (1992-93), CHECK Engine/SRS Lights (1993)
- 8 - 10 Amp Electrically Adjusted Rear-View Mirrors, Cruise Control, Headlight Wipers (1993)
- 9 - 30 Amp Ventilation Fan
- 10 - 10 Amp APC Boost Pressure System
- 11 - Blank
- 12 - Blank
- 13 - 20 Amp
- 13 - 10 Amp (1993) Back-Up Lights, Cigarette Lighter, Seat Belt & Alternator Warning Lights
- 14 - 15 Amp Right High Beam Headlight
- 15 - 15 Amp Left High Beam Headlight, High Beam Indicator
- 16 - 15 Amp Right Low Beam Headlight
- 17 - 15 Amp Left Low Beam Headlight
- 18 - 10 Amp Right Side Parking & Taillights, License Plate Light
- 19 - 10 Amp Left Side Parking & Taillights
- 20 - Blank
- 21 - 15 Amp Foglights
- 22 - 10 Amp Fuel System & Gauge, Temp Gauge, Brake Warning Lights, ABS, Fuel Reserve Warning Light (1992-93)
- 23 - 10 Amp Instrument Panel Lighting, Glove Box & Ashtray Lights (1992-93)
- 24 - Blank
- 25 - 30 Amp Radiator Cooling Fan
- 26 - 25 Amp Horn
- 27 - 15 Amp Hazard Warning Lights
- 28 - 15 Amp Clock
- 29 - Blank
- 30 - 20 Amp Fuel Pumps
- 31 - 15/5 Amp Brakelights/Oxygen Sensor Wire
