Spark Plug: Service and Repair

To Remove

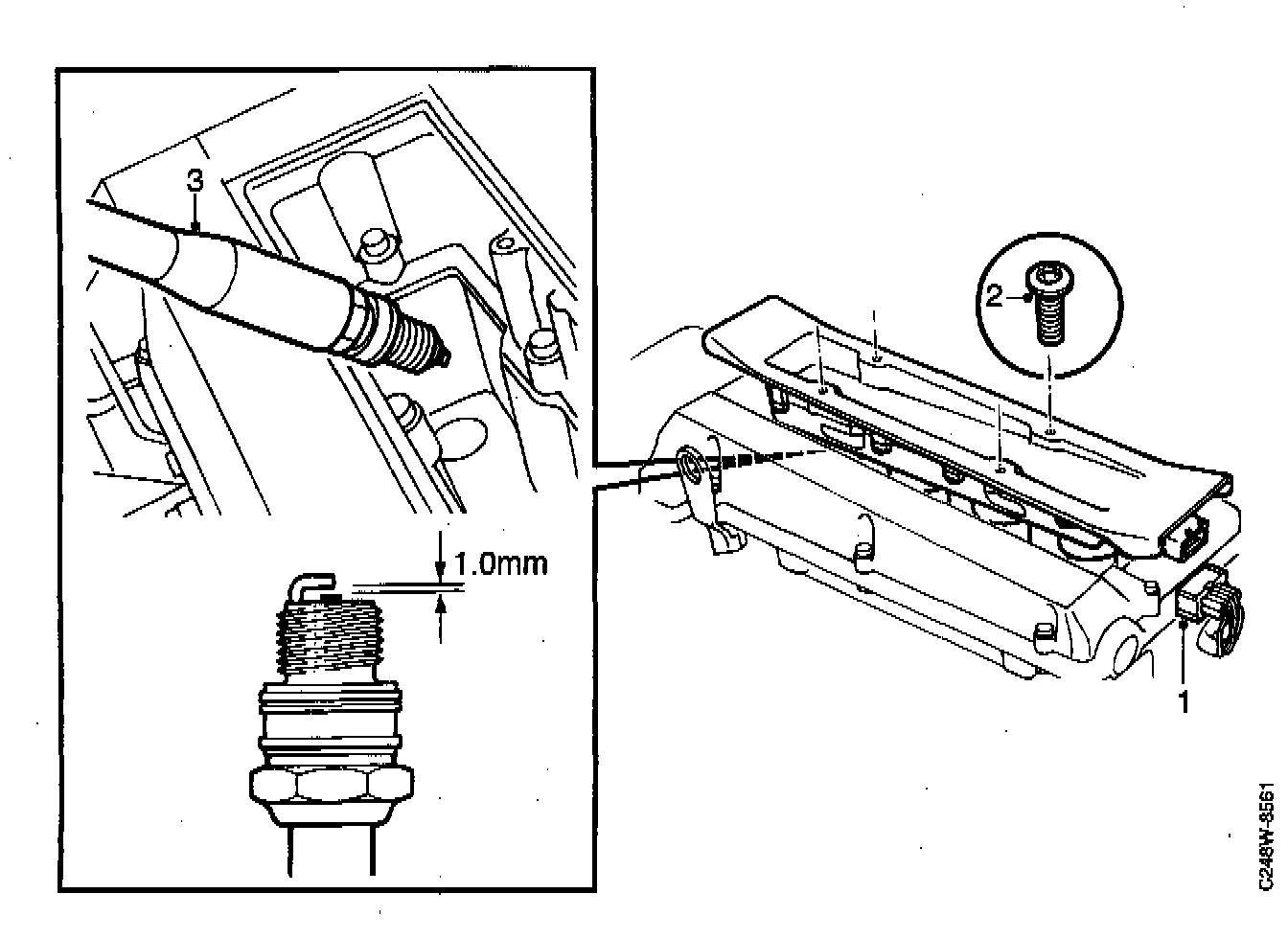

1. Unplug the ignition discharge module's 10-pin connector.
2. Remove the ignition discharge module's 4 retaining bolts.
3. Remove the spark plugs.

To Fit
Check the electrode gap on the spark plugs. It should be 1.0 mm.
Fit in reverse order.
Tightening torque, spark plugs: 27 Nm (20 ft lbs)
Tightening torque, ignition discharge module: 11 Nm (8 ft lbs)
