Removal & Installation

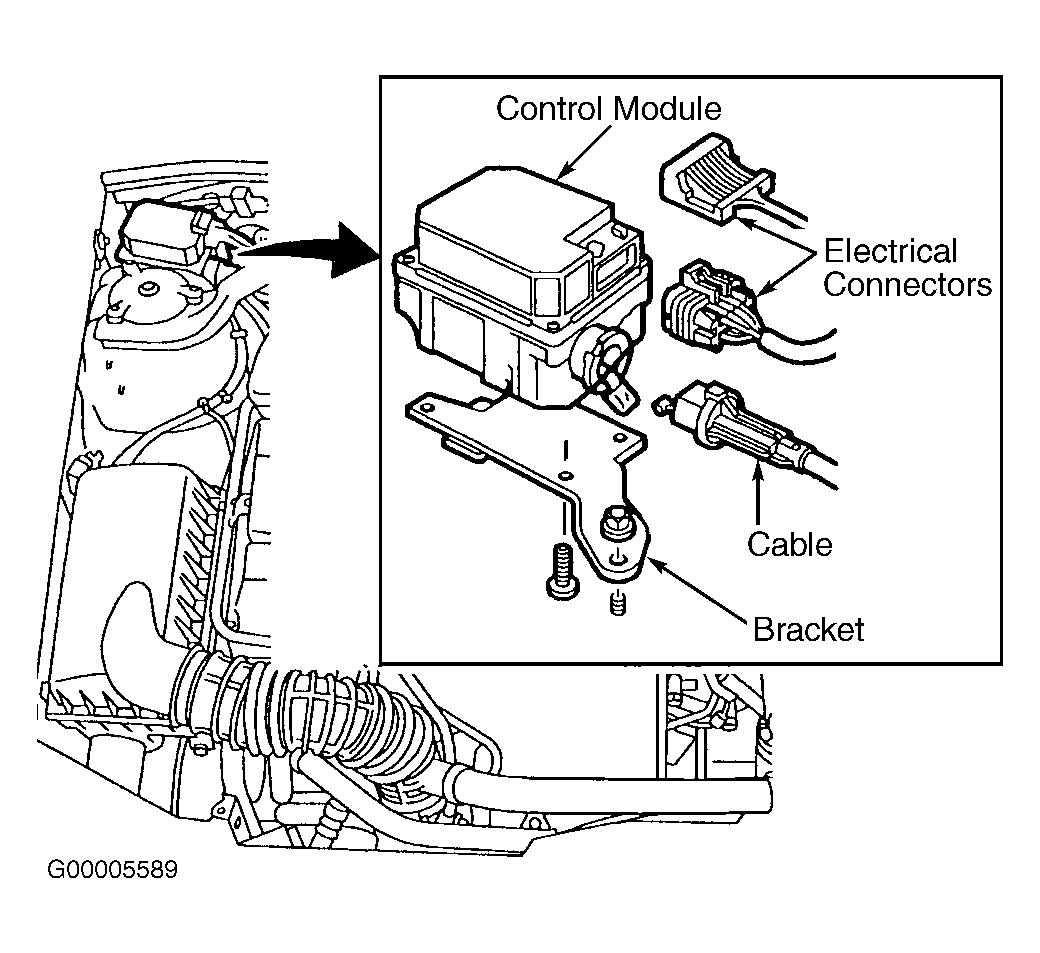

Remove cable from control module. Remove control module bracket bolt. Disconnect electrical connector. Lift out control module and bracket. Remove bracket from cruise control module. See Fig 1 . To install, reverse removal procedure.
