Test readings, control module connections: Scope

Test readings and directions for measuring signals and levels on the cruise control module are given in the following pages.

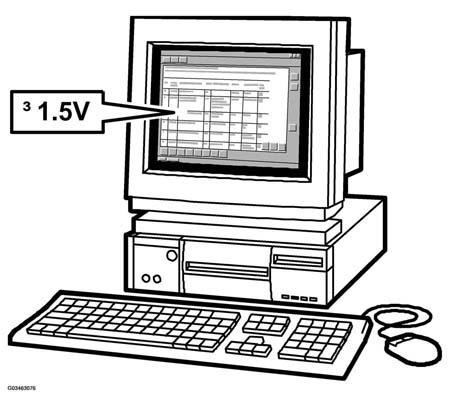

Fig 1: Identifying Testing Equipment

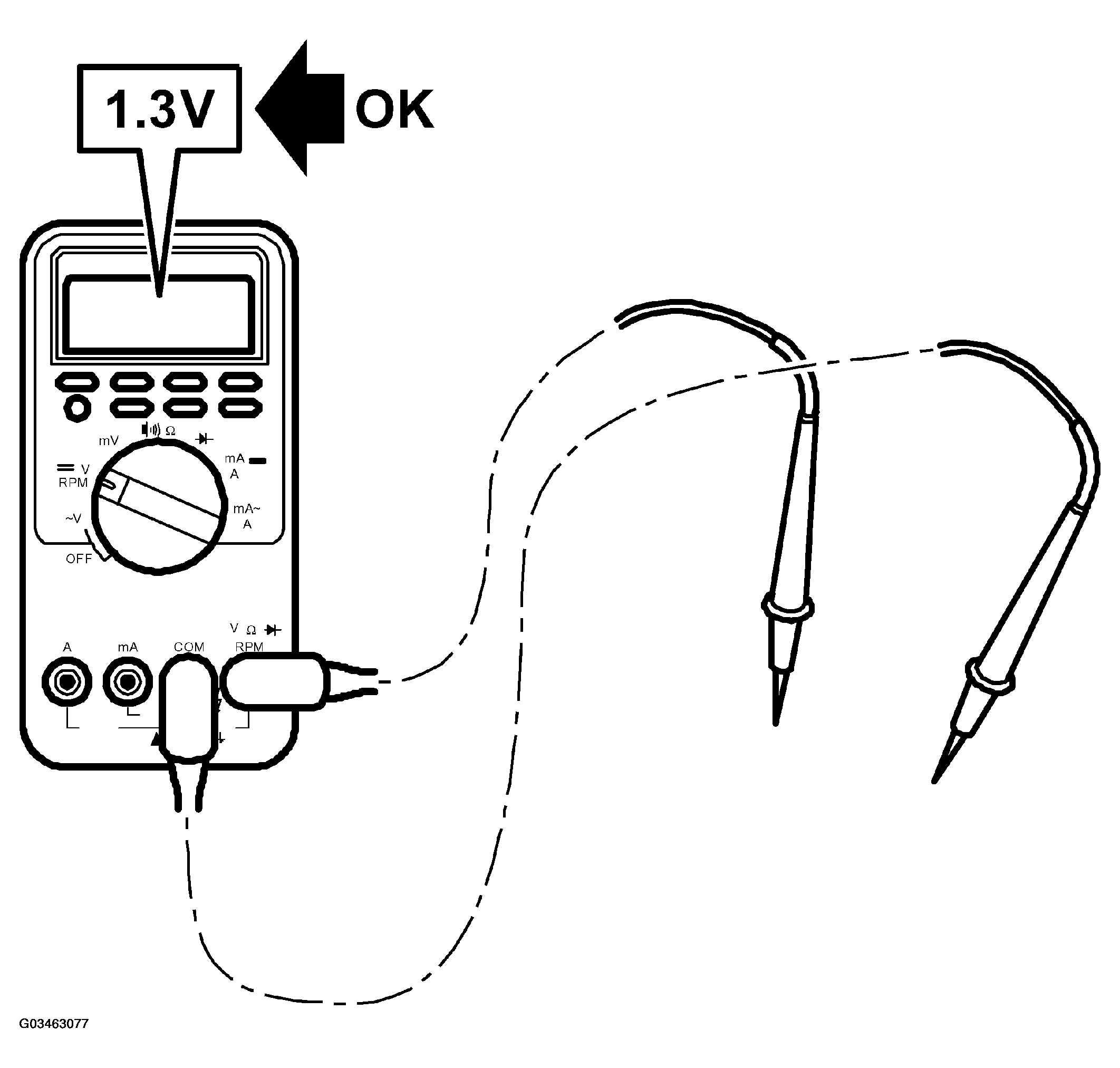

Fig 2: Identifying Multimeter

Remember:

• Note the test conditions and use common sense when assessing the test result.
• The test readings presented are with the ignition ON unless otherwise stated.
• First check that the control module has a power supply and is grounded.
• Then check all sensor inputs and signals from other systems.
• Finally, check the control module outputs. Remember that the test reading does not tell us whether the actuator is in working order.
• If any reading is not OK, consult the wiring diagram to trace the leads, connectors or components which should be checked more thoroughly.
• The specified test readings refer to those obtained with a calibrated Fluke 88/97.
• The test readings % (+) and ms (+) indicate the pulse ratio and pulse duration of the signal. A test instrument for measuring pulse ratio and pulse duration must be used. The (+) sign indicates a positive trigger pulse, TRIG+.

The pins are identified by both a number and a letter. Note that Pin I does not exist.

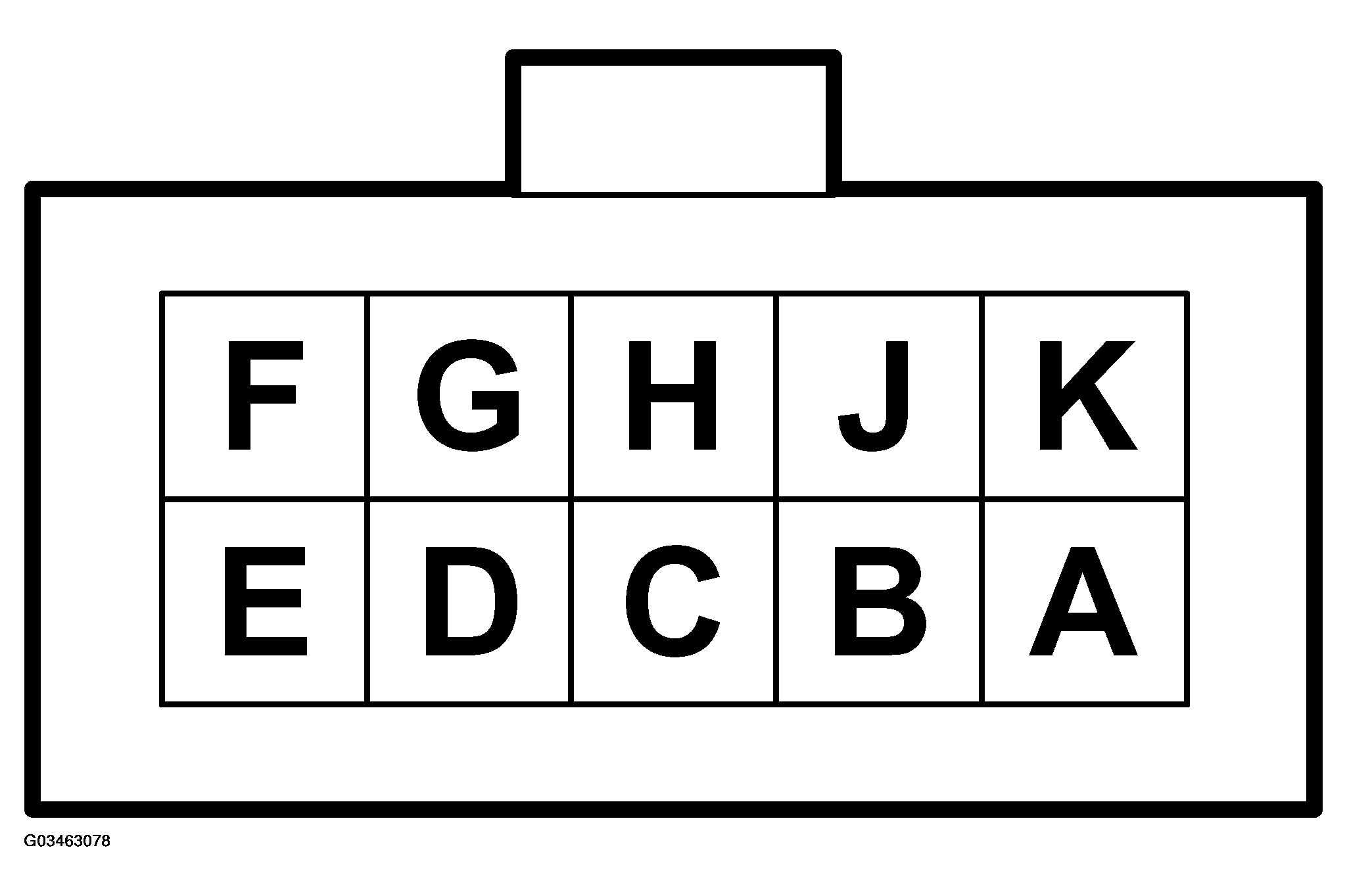

Fig 3: Identifying Connector Terminals
