Slave cylinder

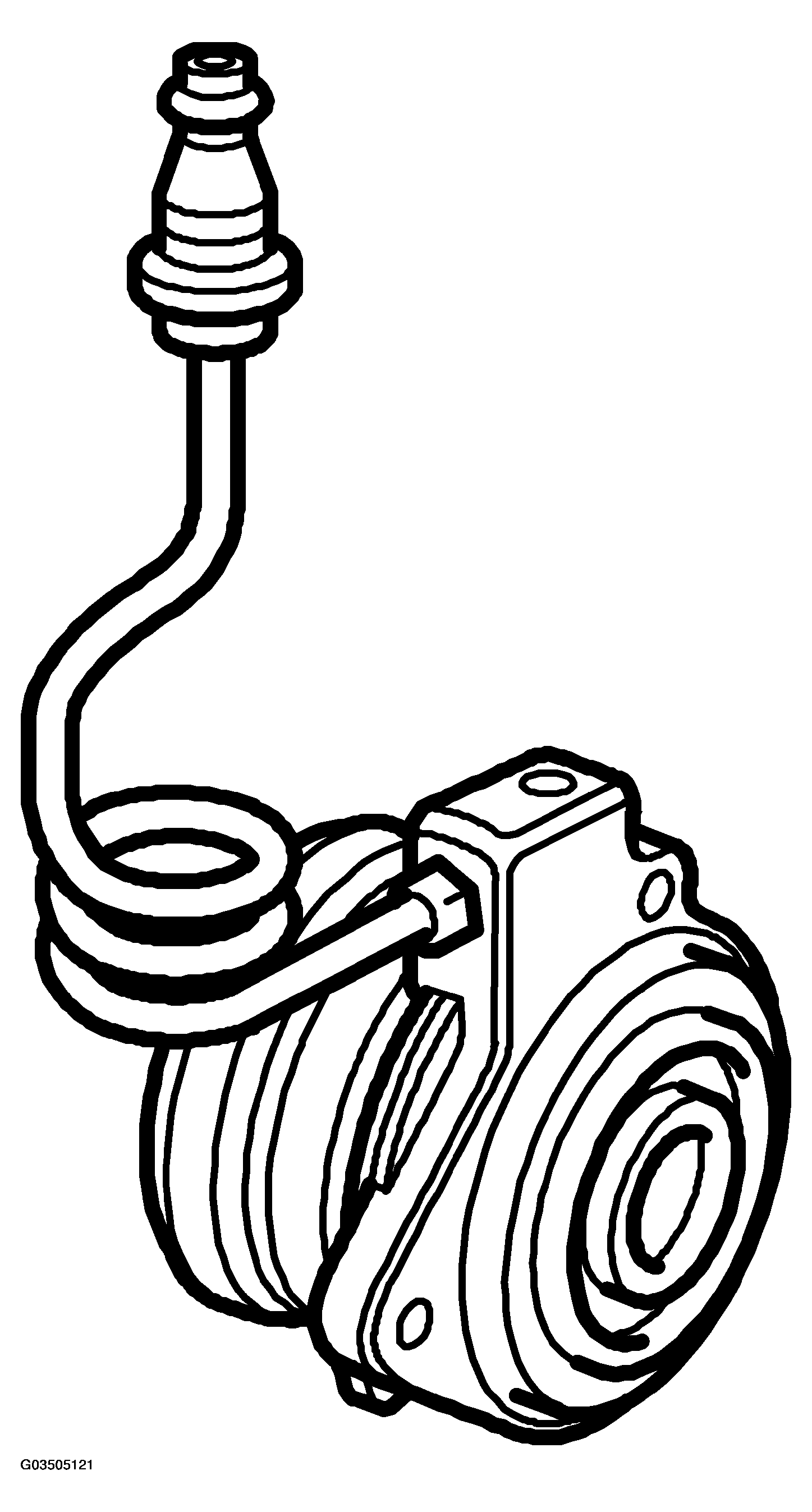

Fig 1: Identifying Slave Cylinder
G03505121Courtesy of SAAB-SCANIA OF AMERICA, INC.
SLAVE CYLINDER - TECHNICAL SPECIFICATIONS

Type CSC (Concentric slave cylinder)
Effective area mm 2 58515
Stroke mm 80.5
