Control module outputs

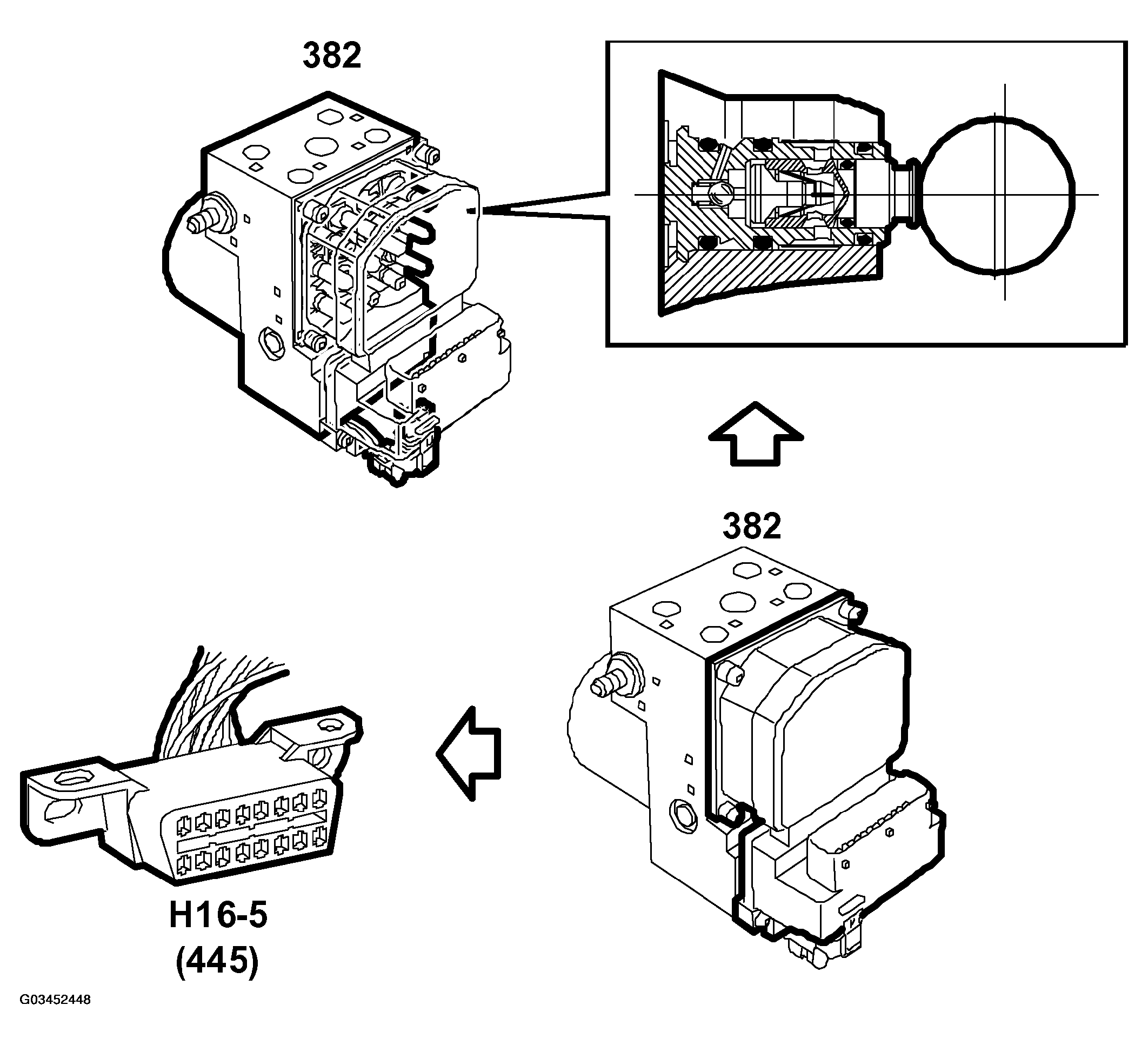

Fig 1: Identifying Control Module Outputs

G03452448

RETURN PUMP, ABS FUNCTION (382)
DIAGNOSTICS COMMUNICATION (445)
VALVE BLOCK, ABS FUNCTION (Inlet valve, FL) (382)
VALVE BLOCK, ABS FUNCTION (Outlet valve, FL) (382)
VALVE BLOCK, ABS FUNCTION (Inlet valve, FR) (382)
VALVE BLOCK, ABS FUNCTION (Outlet valve, FR) (382)
VALVE BLOCK, ABS FUNCTION (Inlet valve, RL) (382)
VALVE BLOCK, ABS FUNCTION (Outlet valve, RR) (382)
VALVE BLOCK, ABS FUNCTION (Inlet valve, RR) (382)
VALVE BLOCK, ABS FUNCTION (Outlet valve, RR) (382)
VALVE BLOCK, TCS FUNCTION (Pressure increase valve 1 FL) (382)
VALVE BLOCK, TCS FUNCTION (Pressure increase valve 2 FR) (382)
VALVE BLOCK, TCS FUNCTION (Pressure decrease valve 1 FL) (382)
VALVE BLOCK, TCS FUNCTION (Pressure decrease valve 2 FR) (382)
