Connector H33-5: RHD

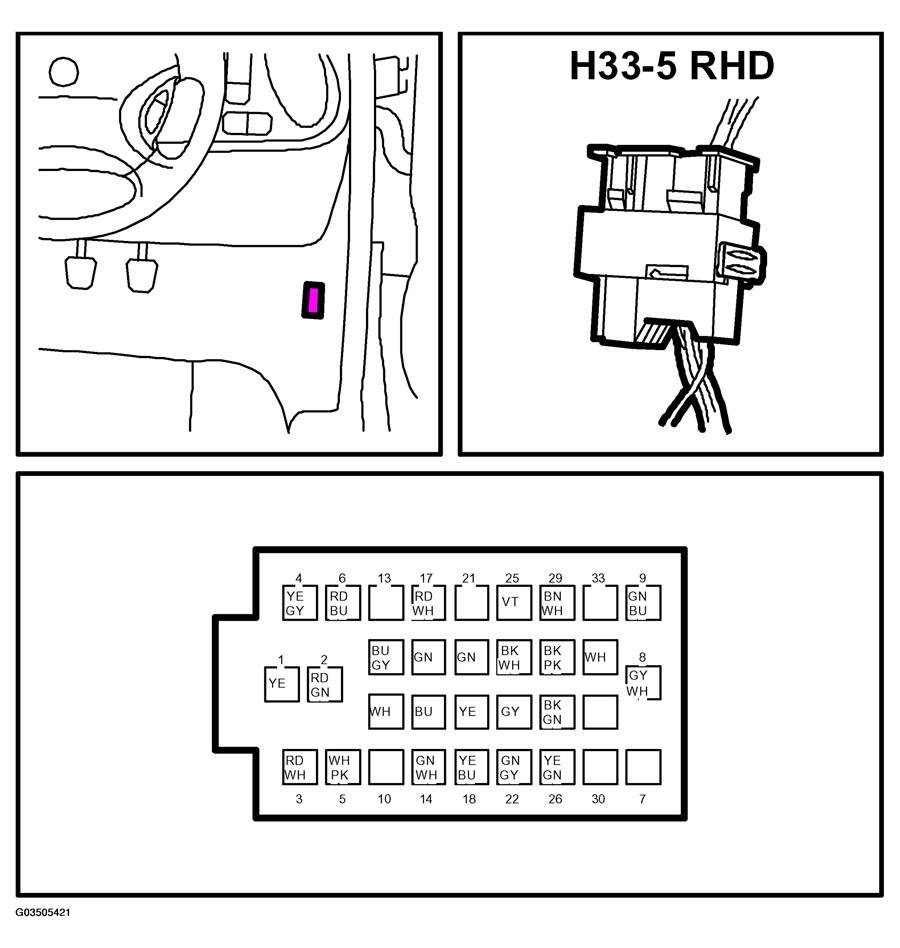

Fig 1: Identifying H33-5 Connector Pinouts And Location (RHD)
G03505421Courtesy of SAAB-SCANIA OF AMERICA, INC.
