Relay, starter relay (517): LHD

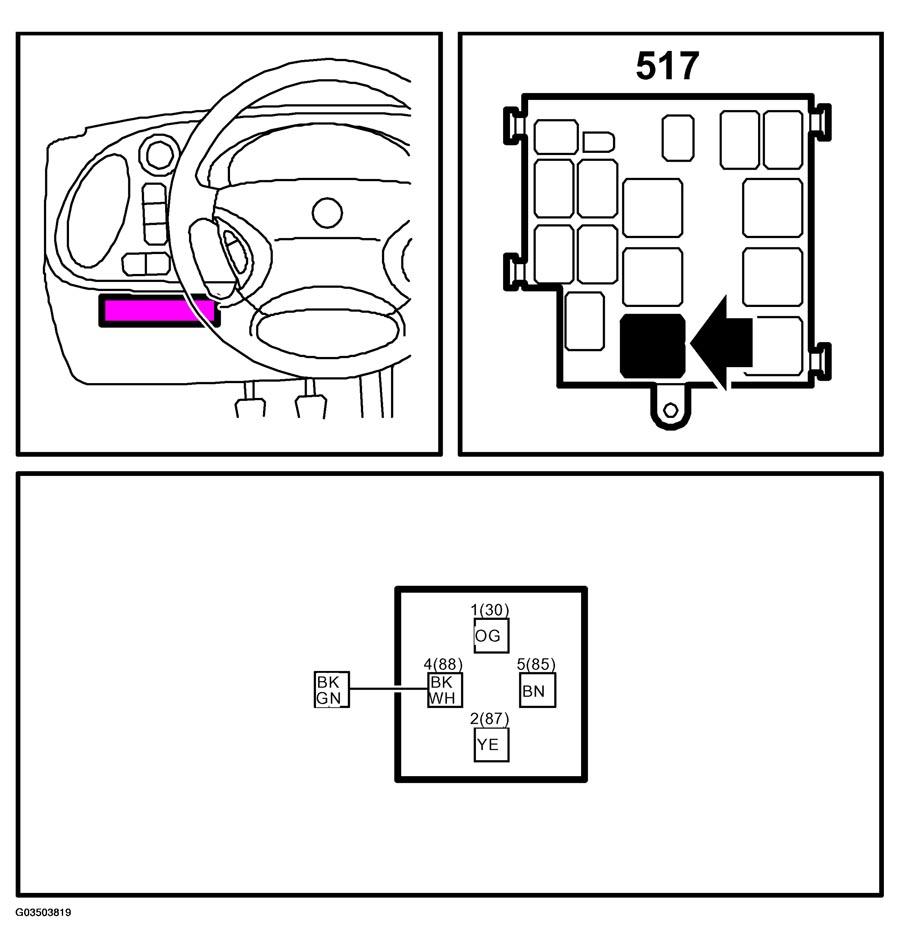

Fig 1: Identifying Starter Relay - LHD

G03503819

Courtesy of SAAB-SCANIA OF AMERICA, INC.
