Sensor, output shaft speed

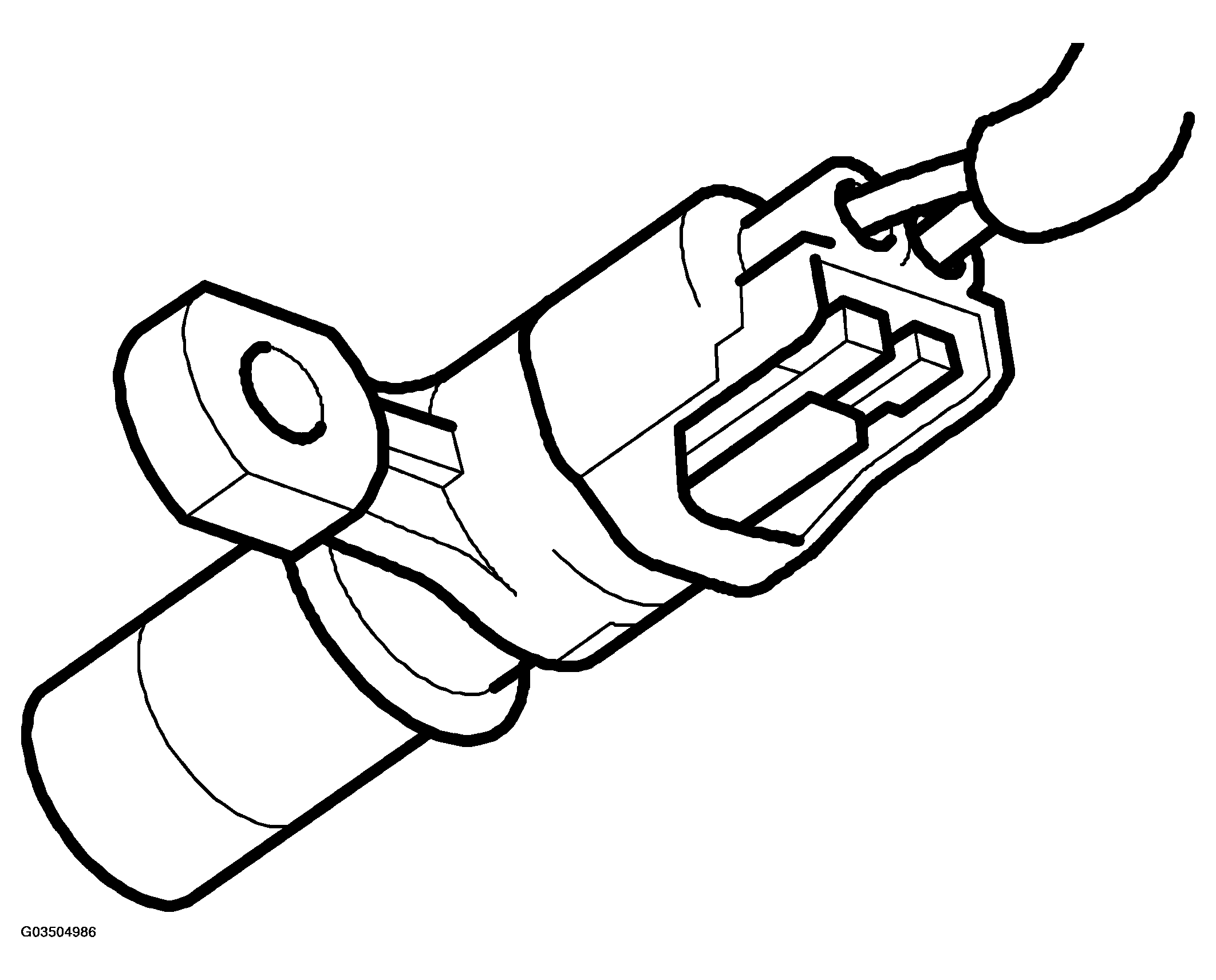

Fig 1: Identifying Output Shaft Speed Sensor
G03504986Courtesy of SAAB-SCANIA OF AMERICA, INC.
OUTPUT SHAFT SPEED SENSOR REFERENCE

Location   On the gearbox
Type   Inductive sensor
Resistance, shift 2-3 at 20 °C Ohm 450+/-150
Toothed wheel number of teeth 18
