To fit

  1. Insert the lead and press the connector home.
  2. Fit the wheel sensor in its holder and tighten the retaining bolt.

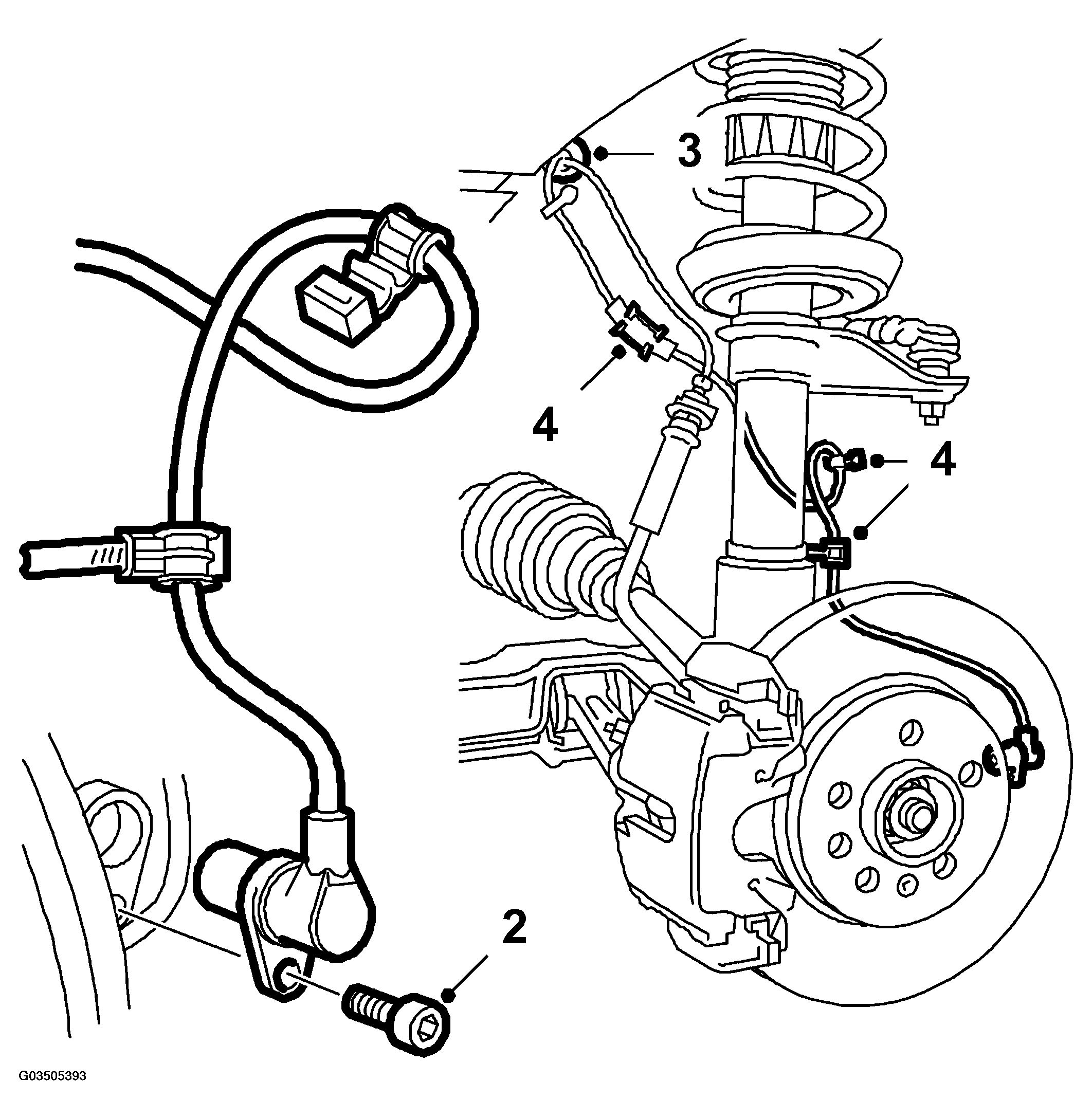

    Fig 1: Illustration For Step 2-4
    G03505393Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Smear the rubber grommet with a soap solution and fit it in lace.
  4. Press the lead into the retaining clips.
  5. Fit the wheel, see WHEEL . Lower the car.

    Tightening torque: 110 N.m (81 lbf ft)

  6. Plug in the connector.

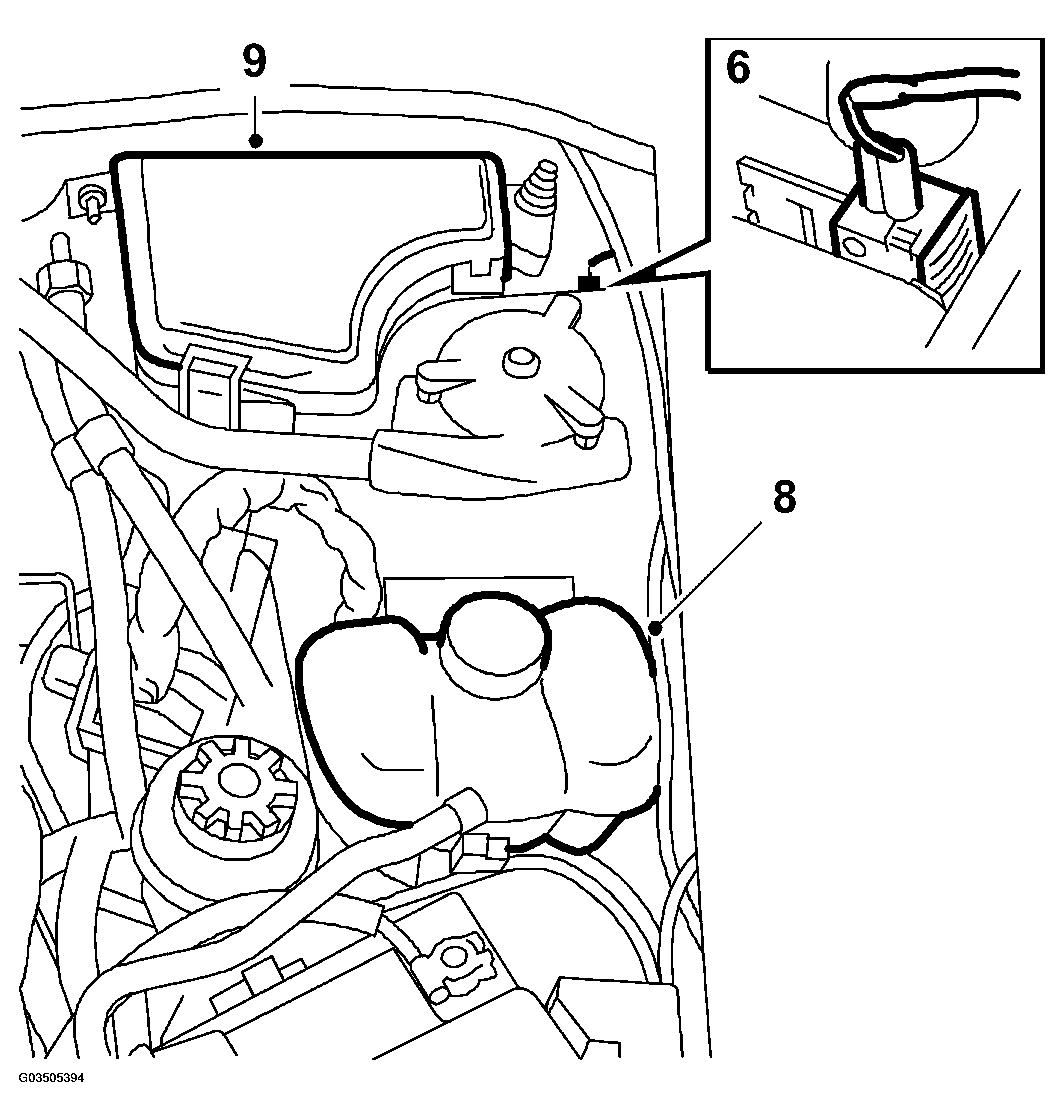

    Fig 2: Illustration For Step 6, 8-9
    G03505394Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit a new cable tie to the suspension strut tower.
  8. Plug in the level sensor's connector and refit the expansion tank.
  9. Fit the main fuse box in place.
