Home >> Saab >> 2001 >> 9-3 Base, 2D Hatchback, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> TC/Abs System Version 5.3 - Repair >> Component Location >> Control module, DICE (628) >> LHD
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Control module, DICE (628): LHD

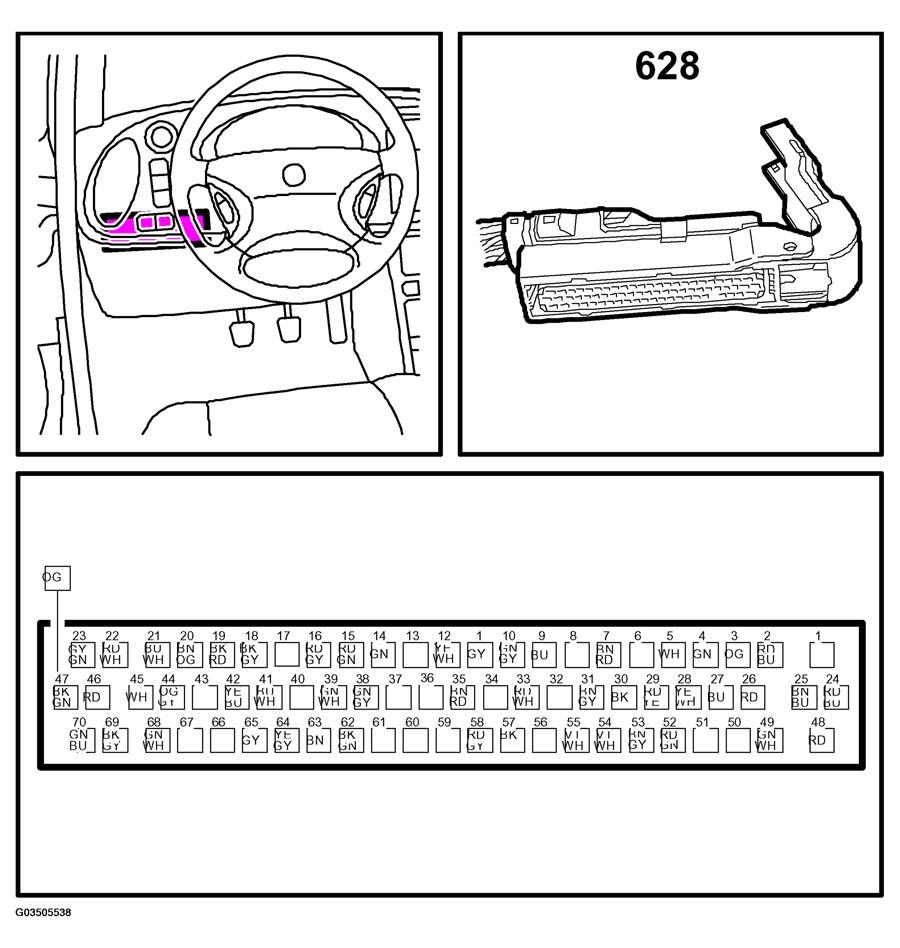

Fig 1: Identifying DICE Control Module Pinouts And Location (LHD)
G03505538Courtesy of SAAB-SCANIA OF AMERICA, INC.
