Control module, DICE (628): RHD

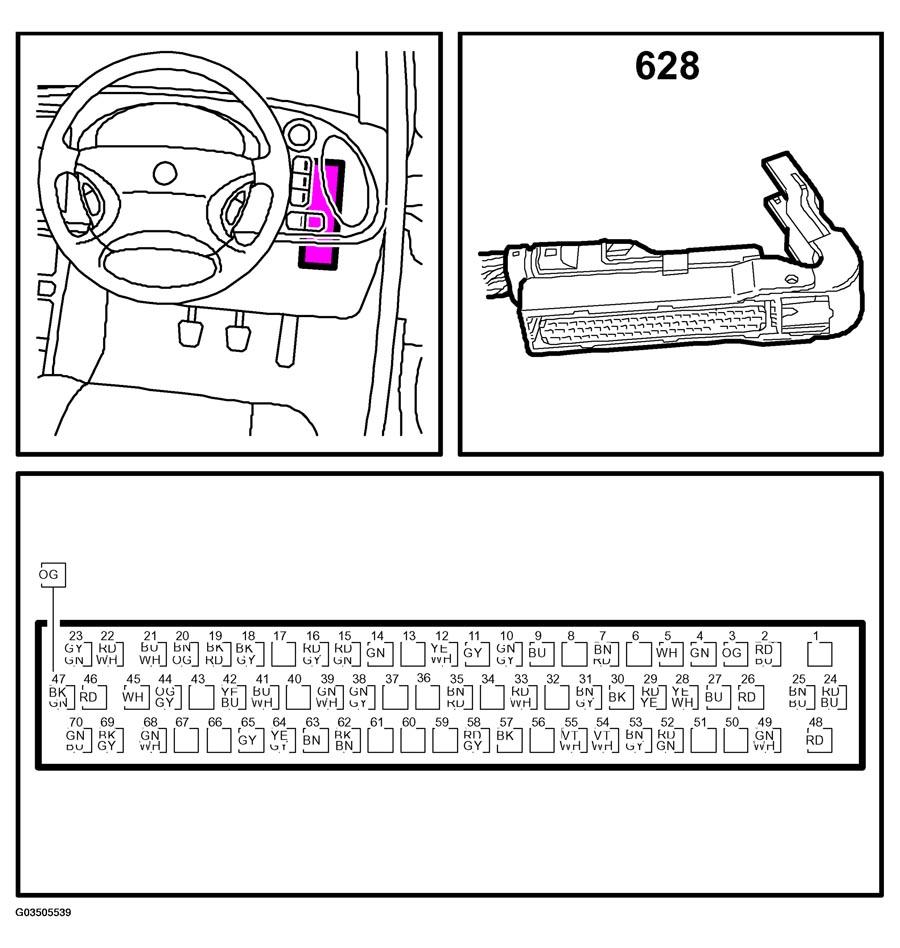

Fig 1: Identifying DICE Control Module Pinouts And Location (RHD)
G03505539Courtesy of SAAB-SCANIA OF AMERICA, INC.
