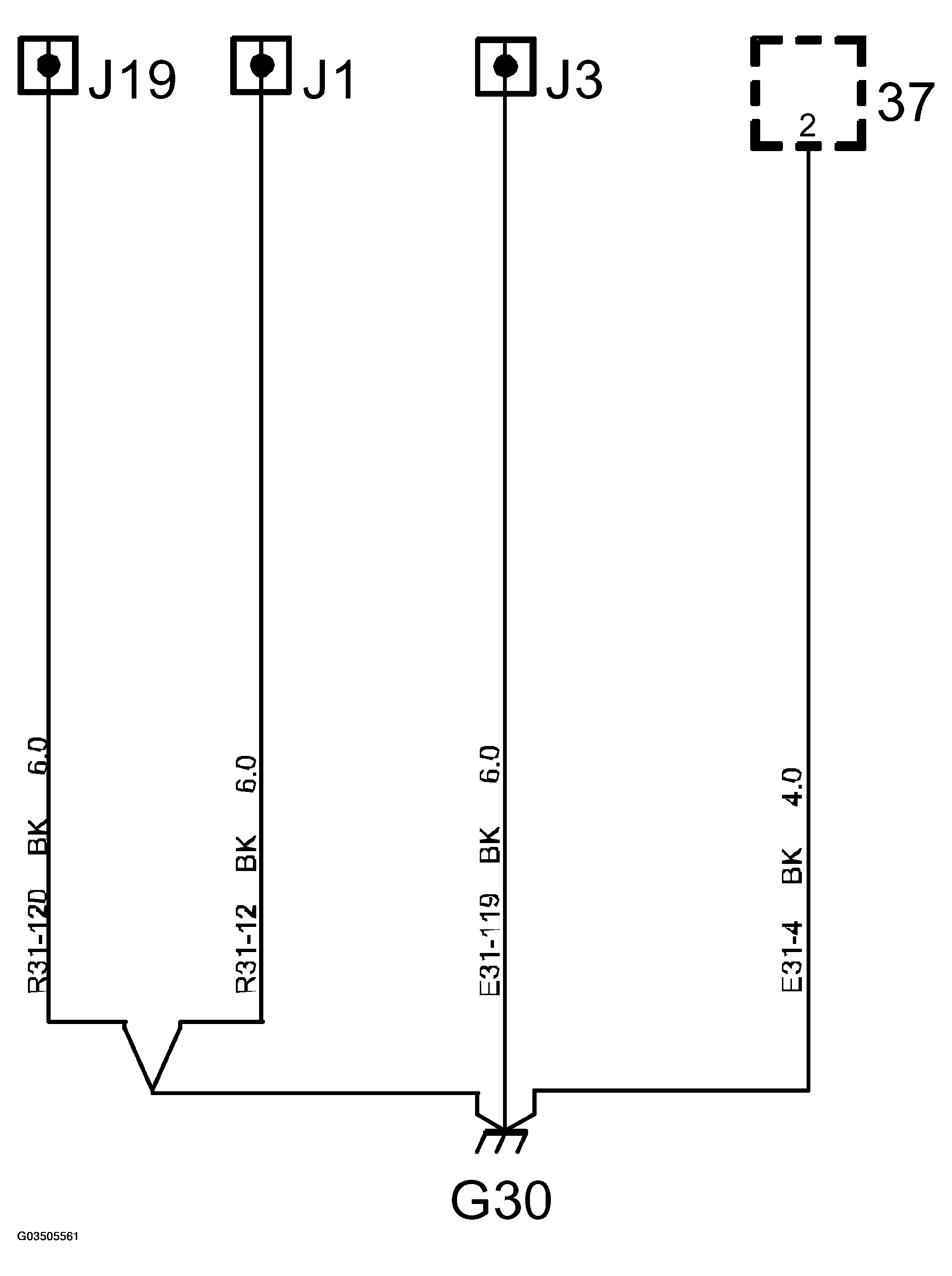

Connected components
COMPONENTS CONNECTED REFERENCE
| 37 | Radiator fan |
| Via crimp J1 | |
| 547 | Control module, ABS |
| Via crimp J3 | |
| 11FL | Left dipped beam bulb |
| 12FL | Left main beam bulb |
| 13FL | Left parking light bulb |
| 27FL | Front left direction indicator bulb |
| 66FL | Left headlamp wiper motor |
| 85FL | Extra left fog light bulb |
| 119FL | Left side reversing light bulb |
| 195 | Washer fluid level switch |
| 228b | Filament monitor, front lamps |
| 234FL | Left side marker light bulb |
| 280FL | Left headlamp beam adjustment motor |
| 421 | Parking heater connection, diesel |
| 596 | Filament control module |
| Via crimp J19 | |
| 382 | TC-ABS control module |
