TCS cannot be disengaged with switch: Notes

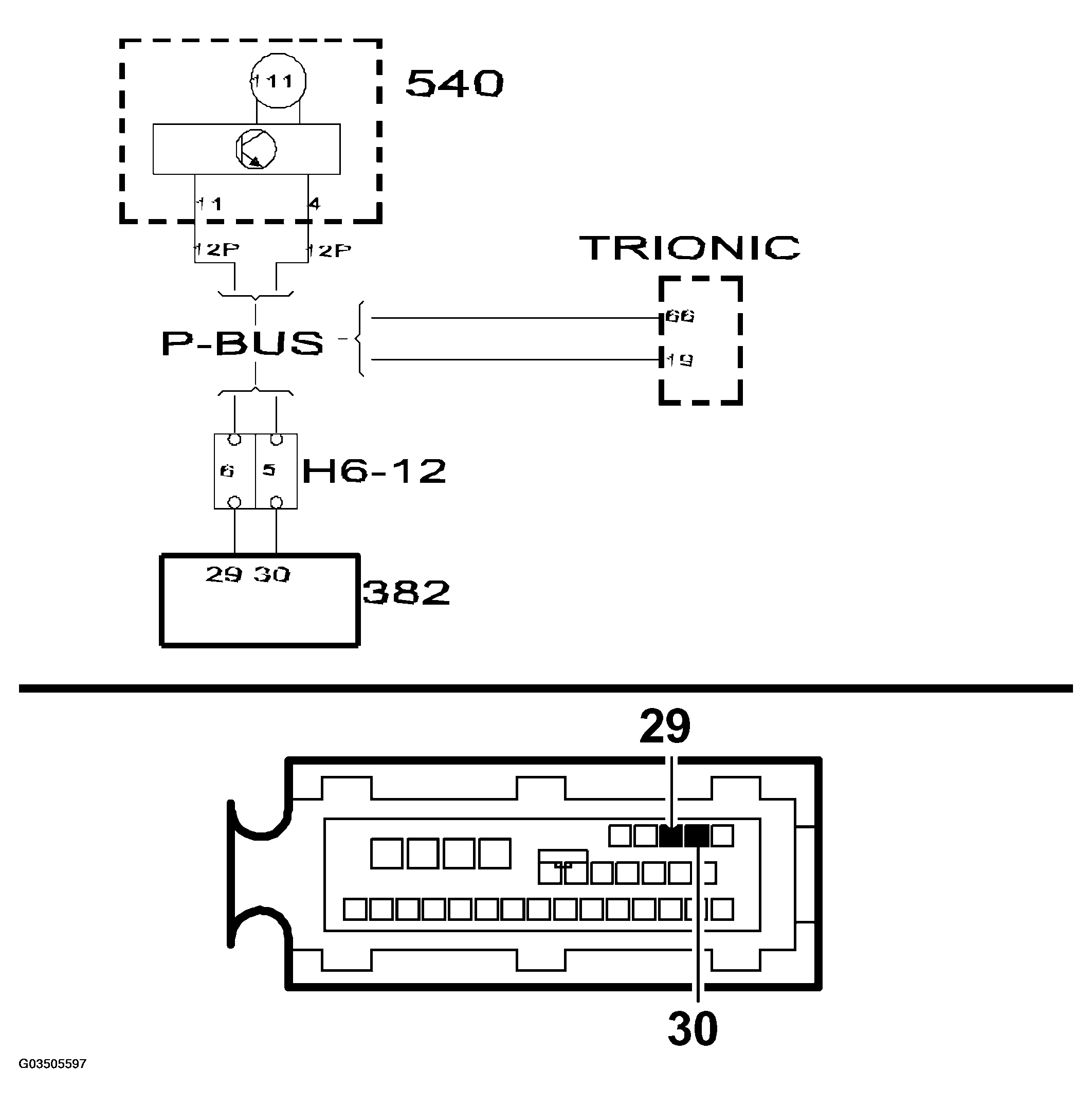

Fig 1: TCS Cannot Be Disengaged With Switch - Circuit Diagram
G03505597Courtesy of SAAB-SCANIA OF AMERICA, INC.
