Braking Phases: Notes

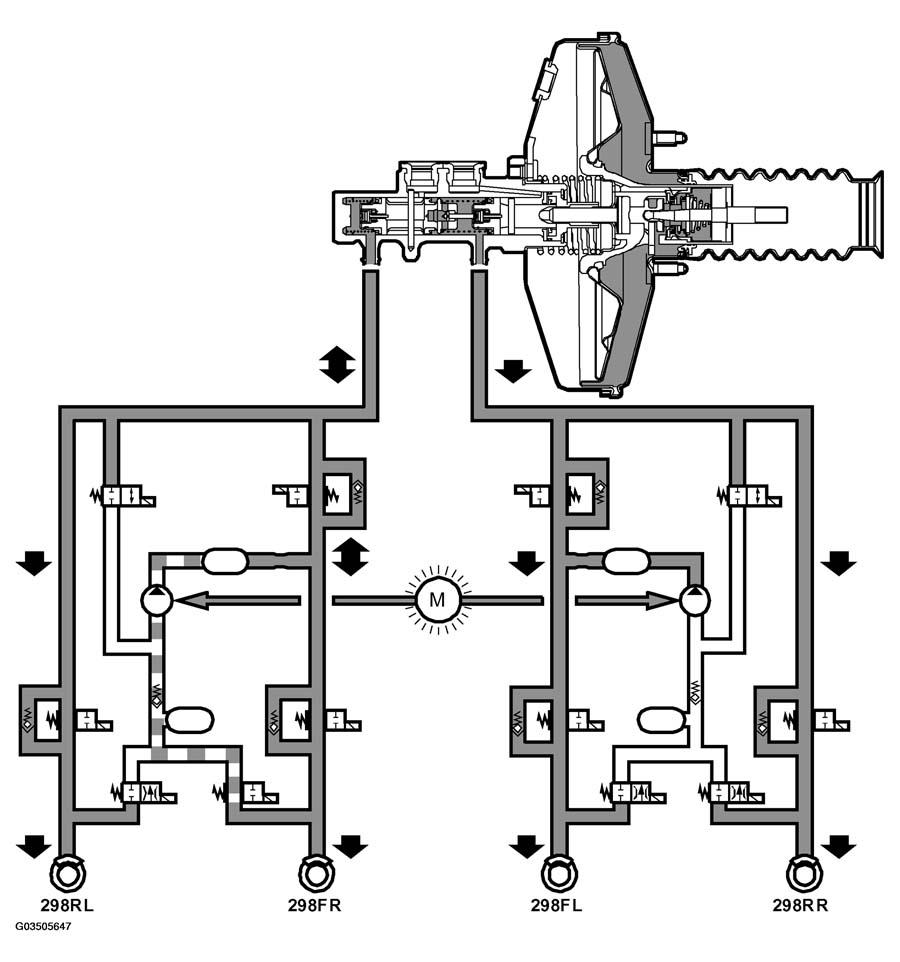

Fig 1: Other Brake Functioning - Pressure Flow Diagram (Braking With ABS Modulation)
G03505647Courtesy of SAAB-SCANIA OF AMERICA, INC.
