Anti-Lock Brakes With Traction Control TC/ABS 5.3: Notes

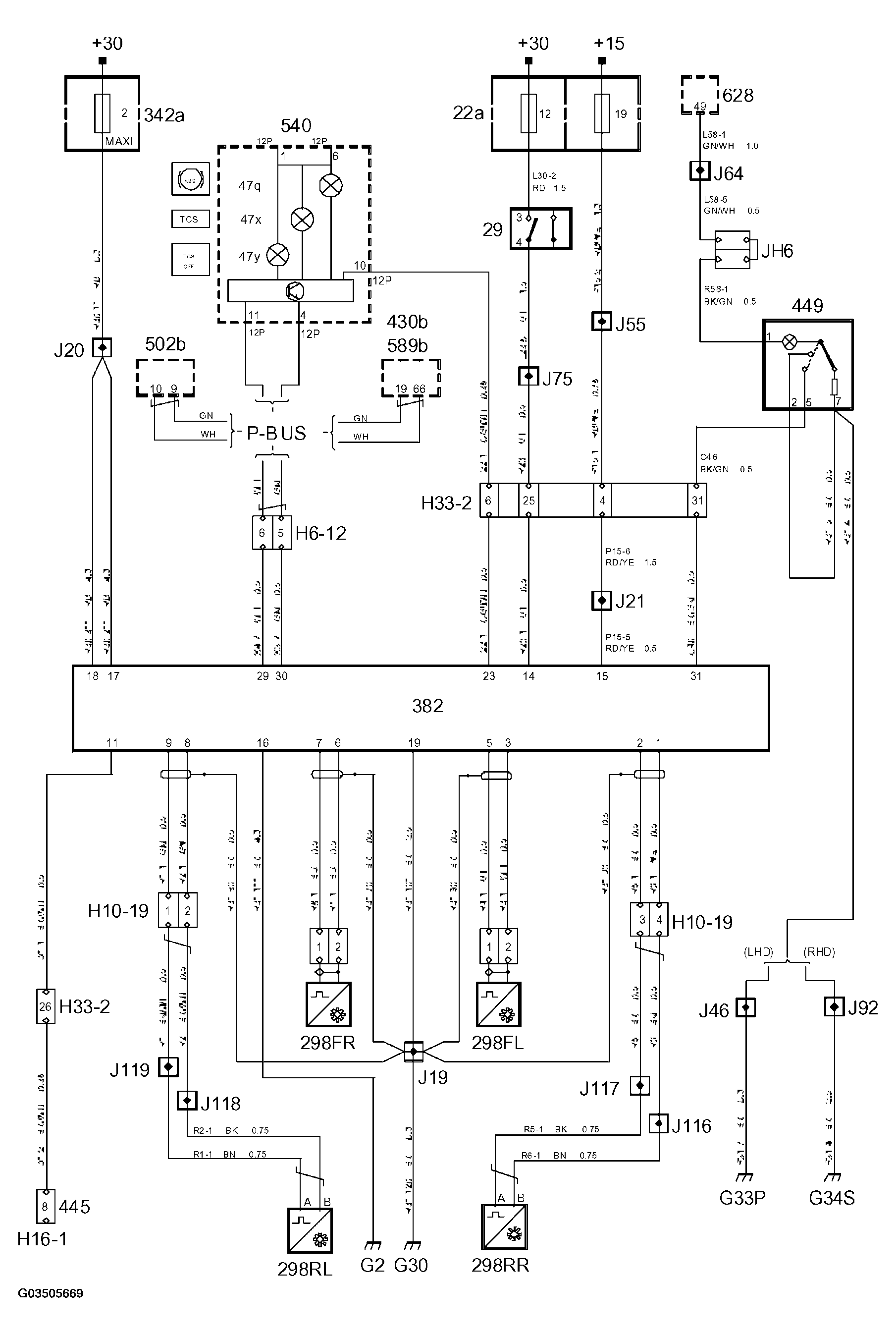

Fig 1: Anti-Lock Brakes With Traction Control TC/ABS 5.3 - Wiring Diagram
G03505669Courtesy of SAAB-SCANIA OF AMERICA, INC.
