To fit

  1. Connect the valve to the hose. Make sure that the opening for the cable is correctly positioned.

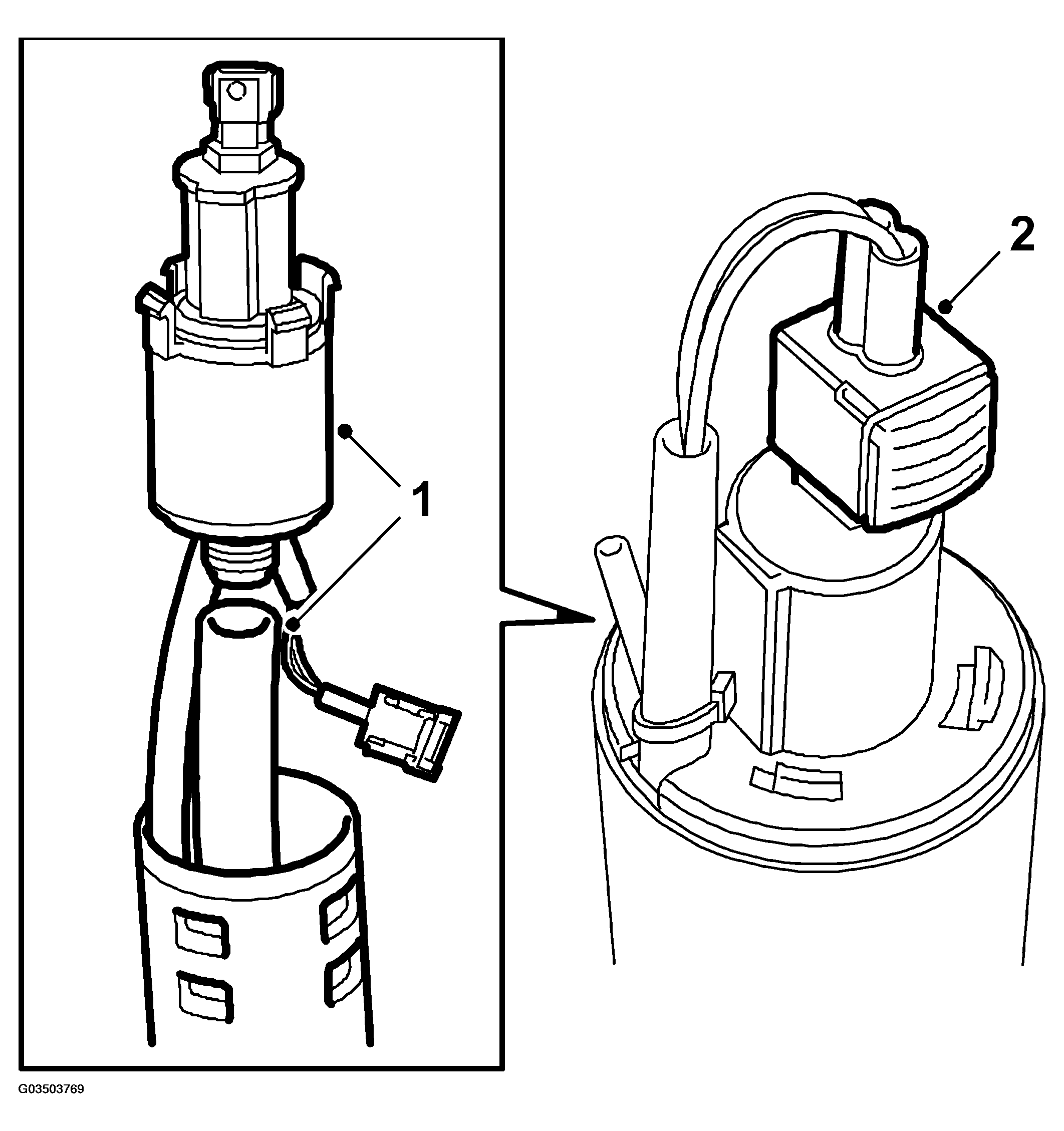

    Fig 1: Illustration For Step 1-2
    G03503769Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray with Kontakt 61 and plug in the connector.
  3. Carefully insert the valve into the vent hose.
    IMPORTANT: Be careful with the foam rubber filter so that it is not damaged or incorrectly positioned.
  4. Fit the cap.

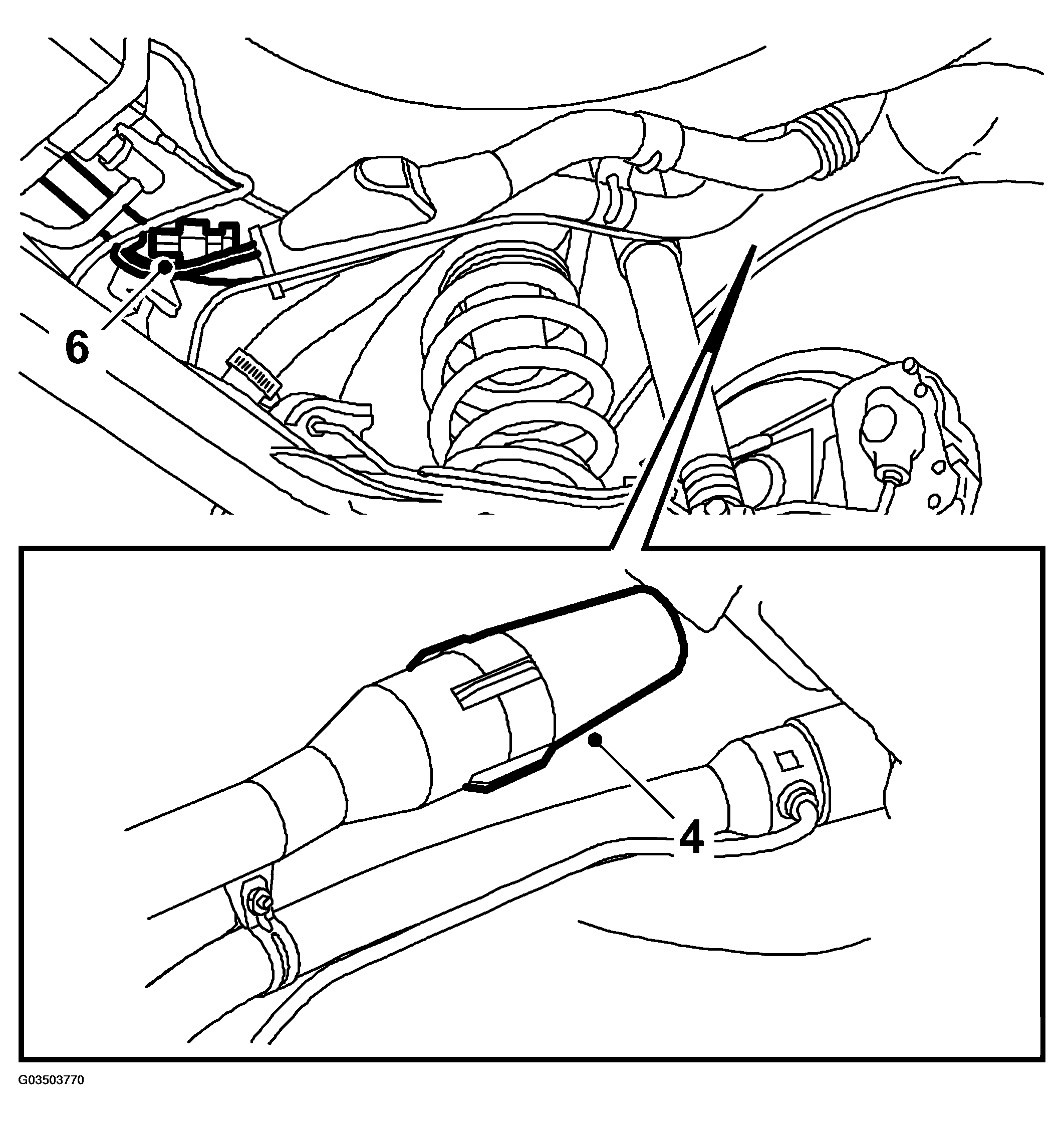

    Fig 2: Illustration For Step 4-5-6
    G03503770Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Raise the car.
  6. Adjust and connect the shut-off valve hose to the EVAP canister.
  7. Lower the car to the floor.
