Power supply: Notes

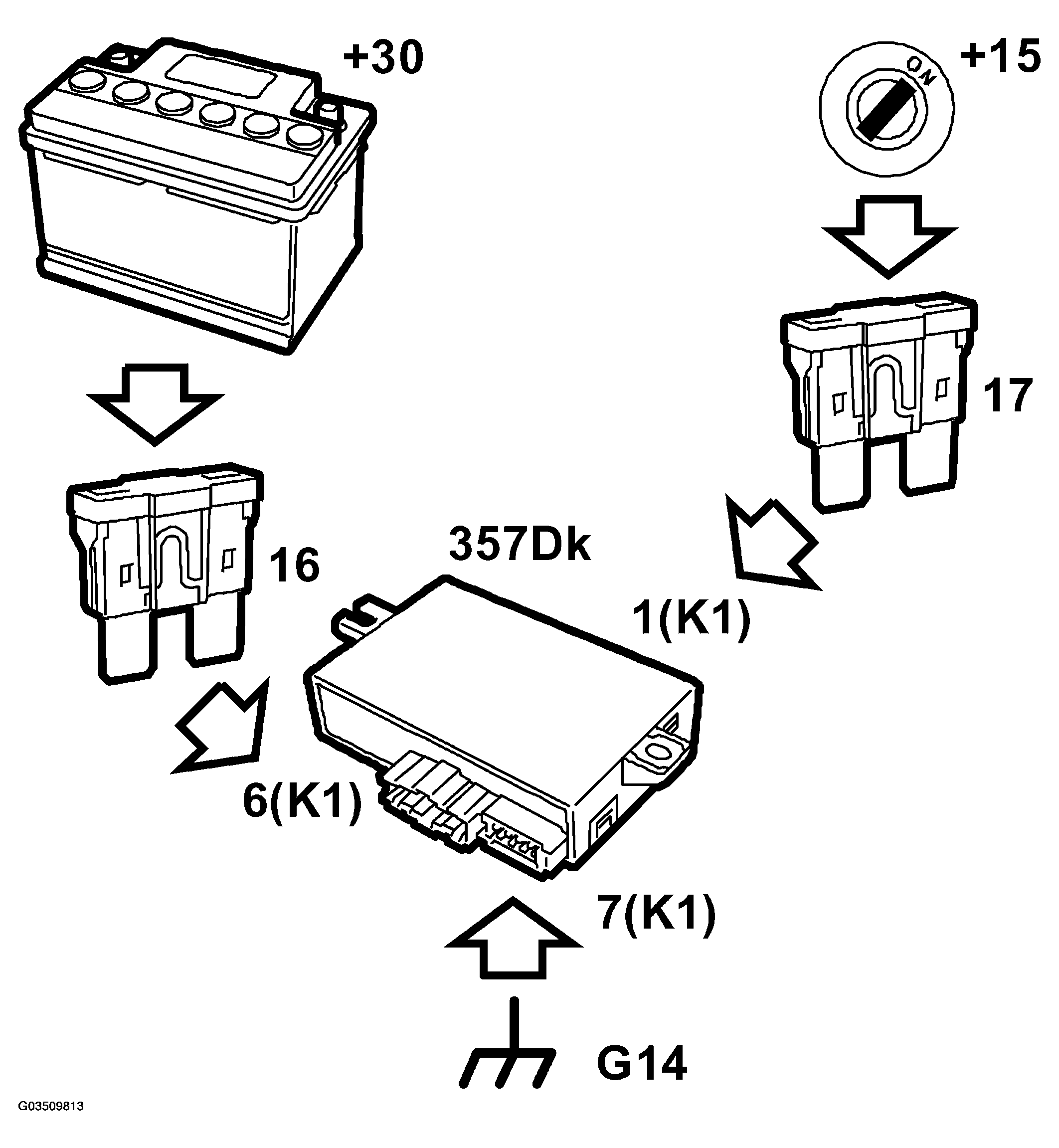

Fig 1: Identifying Power Supply
G03509813Courtesy of SAAB-SCANIA OF AMERICA, INC.

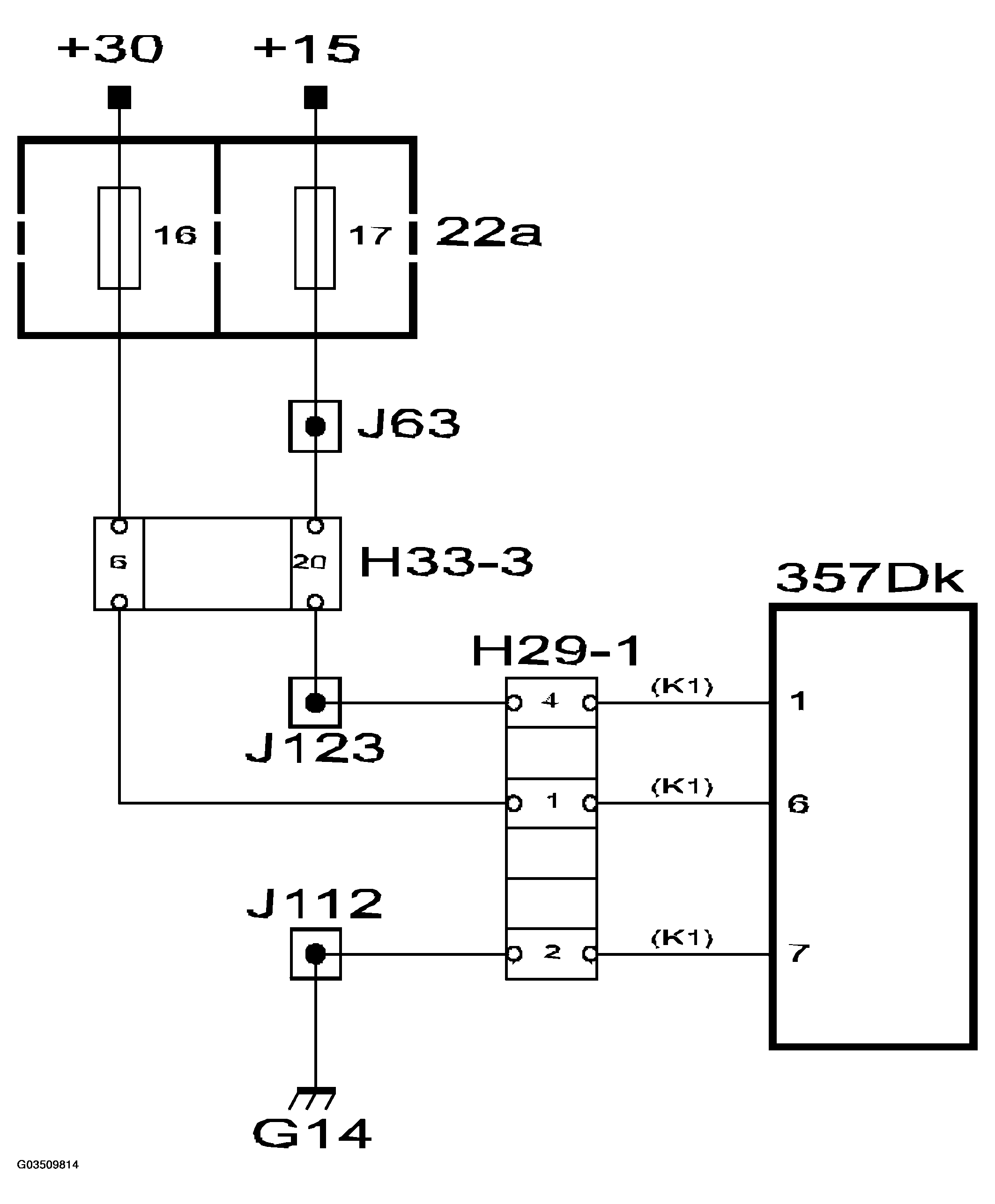

Fig 2: Power Supply Circuit Diagram
G03509814Courtesy of SAAB-SCANIA OF AMERICA, INC.
