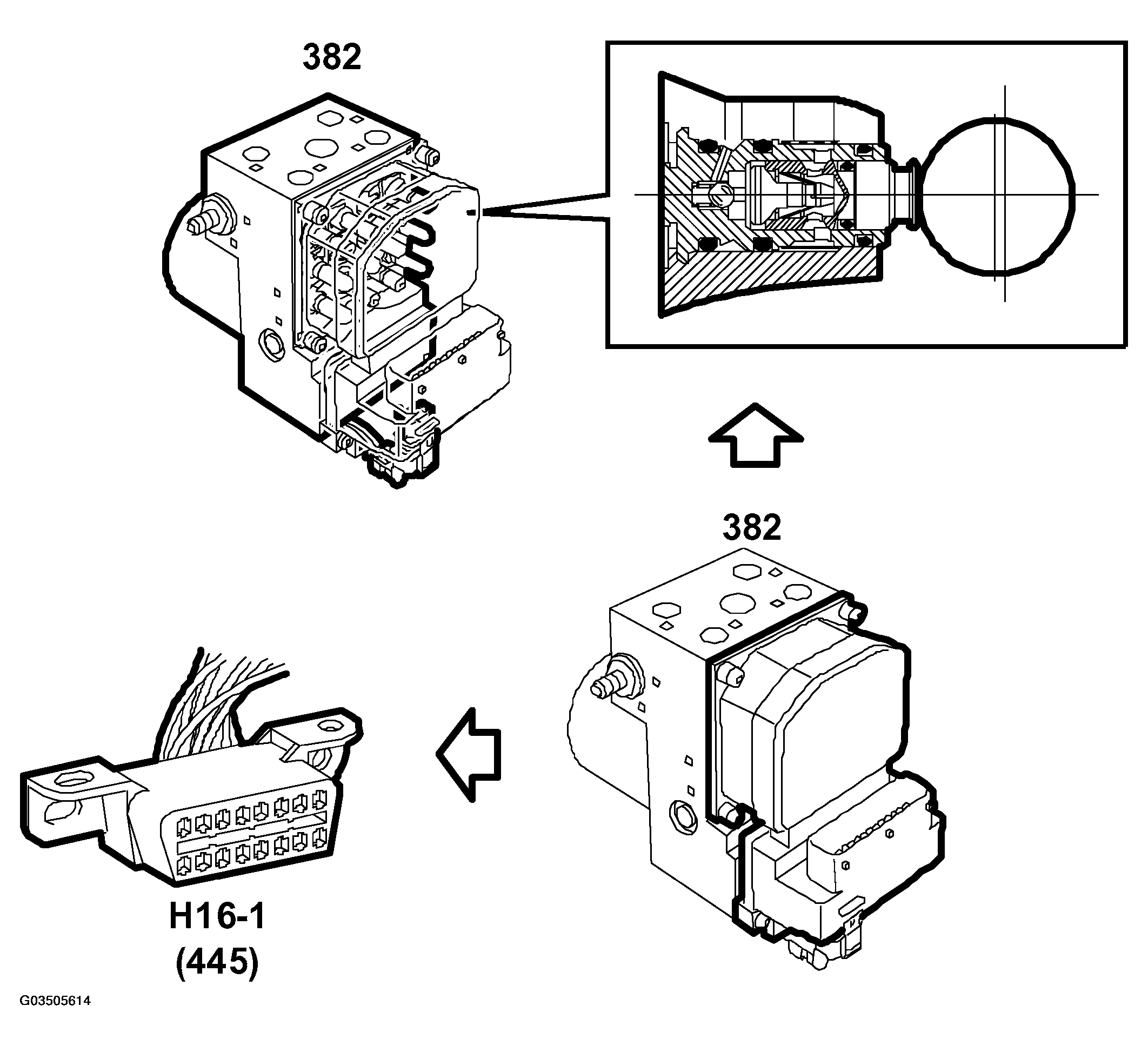

Control module outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Return pump (382)
- Diagnostics communication (445)
- Inlet valve, FL (382)
- Outlet valve, FL (382)
- Inlet valve, FR (382)
- Outlet valve, FR (382)
- Inlet valve, RL (382)
- Outlet valve, RR (382)
- Inlet valve, RR (382)
- Outlet valve, RR (382)
- Pressure increase valve 1 FL (382)
- Pressure increase valve 2 FR (382)
- Pressure decrease valve 1 FL (382)
- Pressure decrease valve 2 FR (382)
