Control module replacement: Fitting

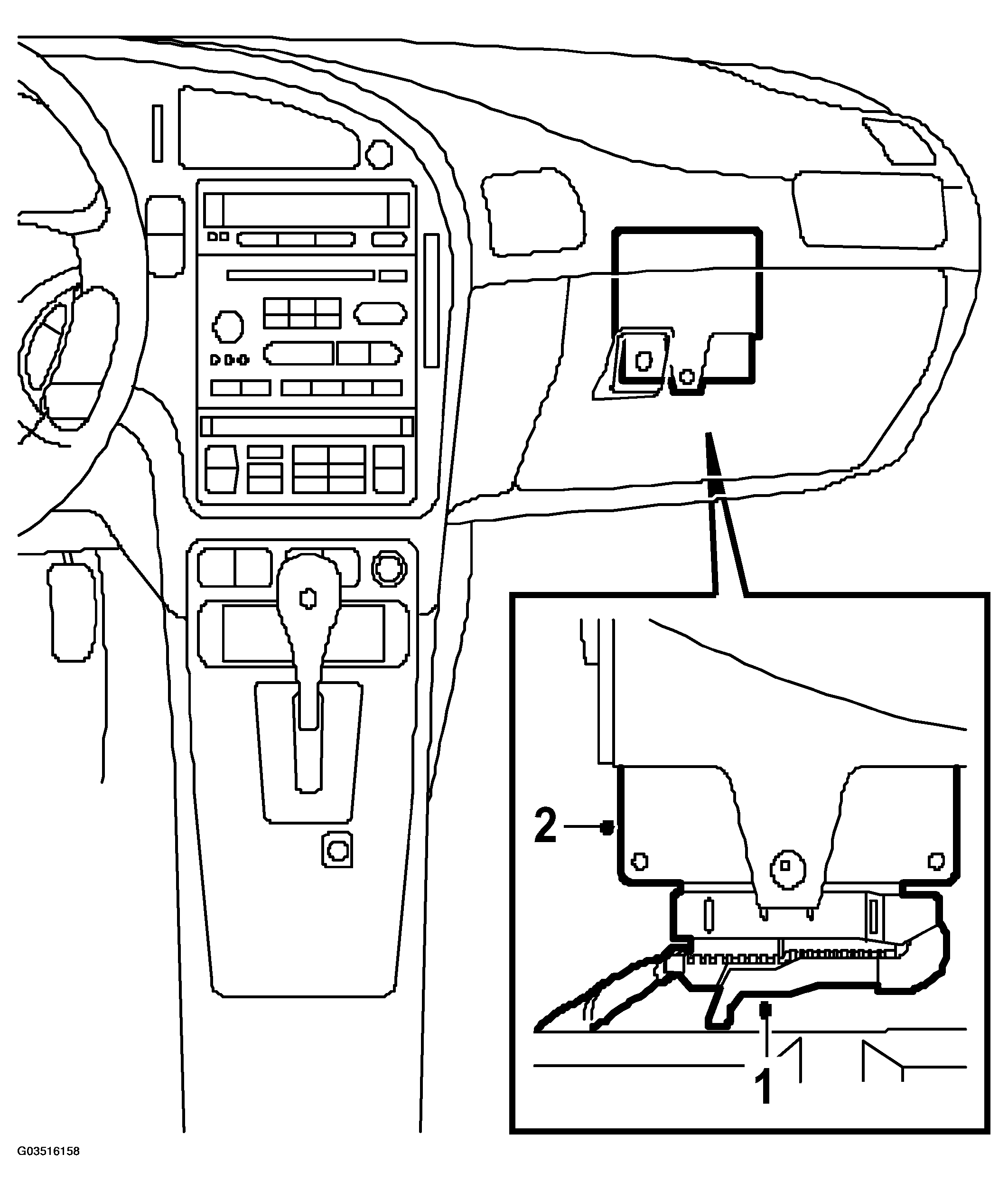

Fig 1: Illustration For Steps 1-2
G03516158Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Plug the connector into the control module.
  2. Press the control module home so that the catches engage with it.
  3. Refit the lower dashboard section by the passenger seat, see group 8 Body, Climate control system, Interior equipment.
  4. Perform Measures after changing a CONTROL MODULE .
