To remove

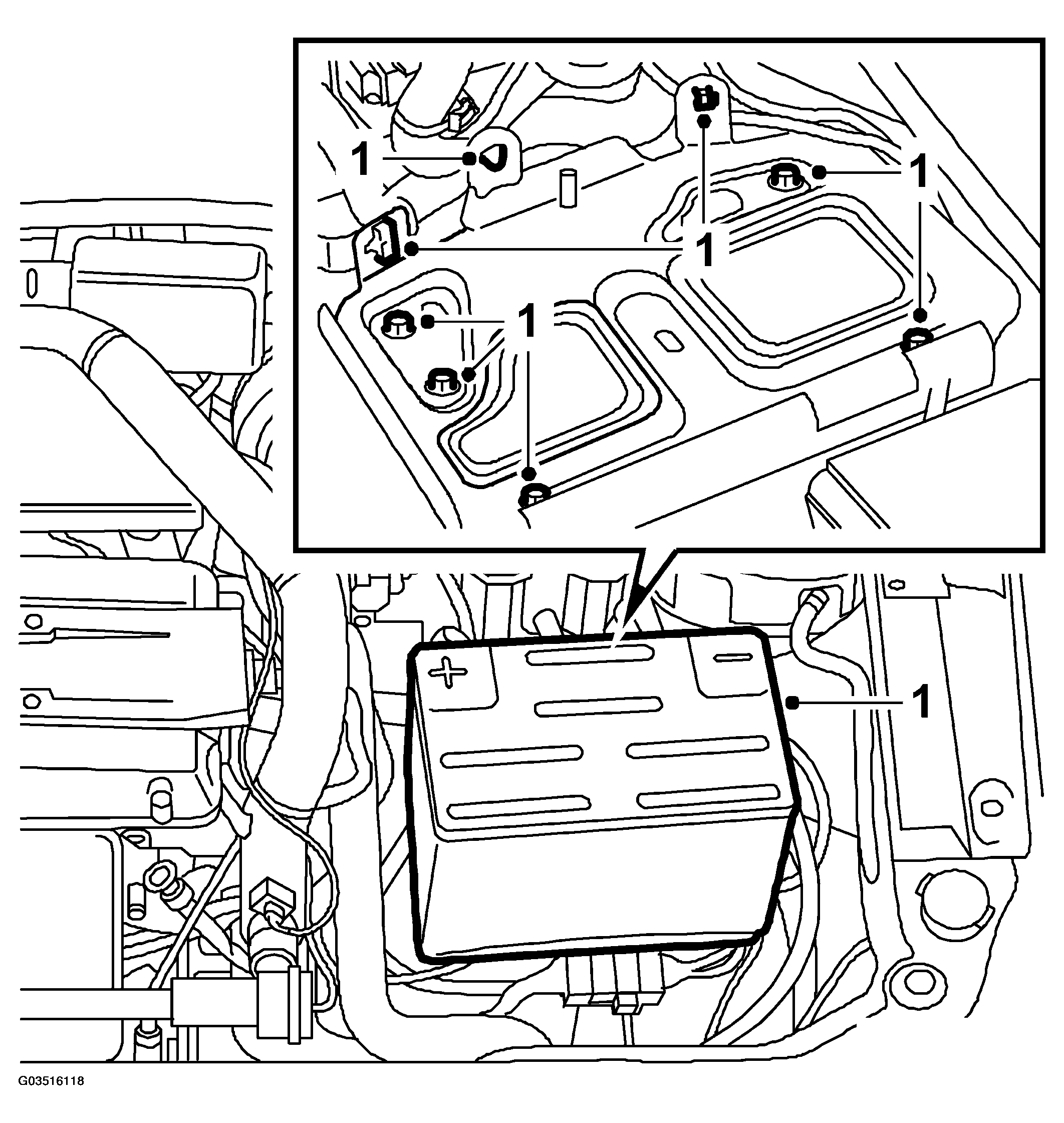

Fig 1: Illustration For Step 1
G03516118Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the battery cover, battery and battery tray.
  2. Clean round the place where the fluid filler pipe enters the transmission.

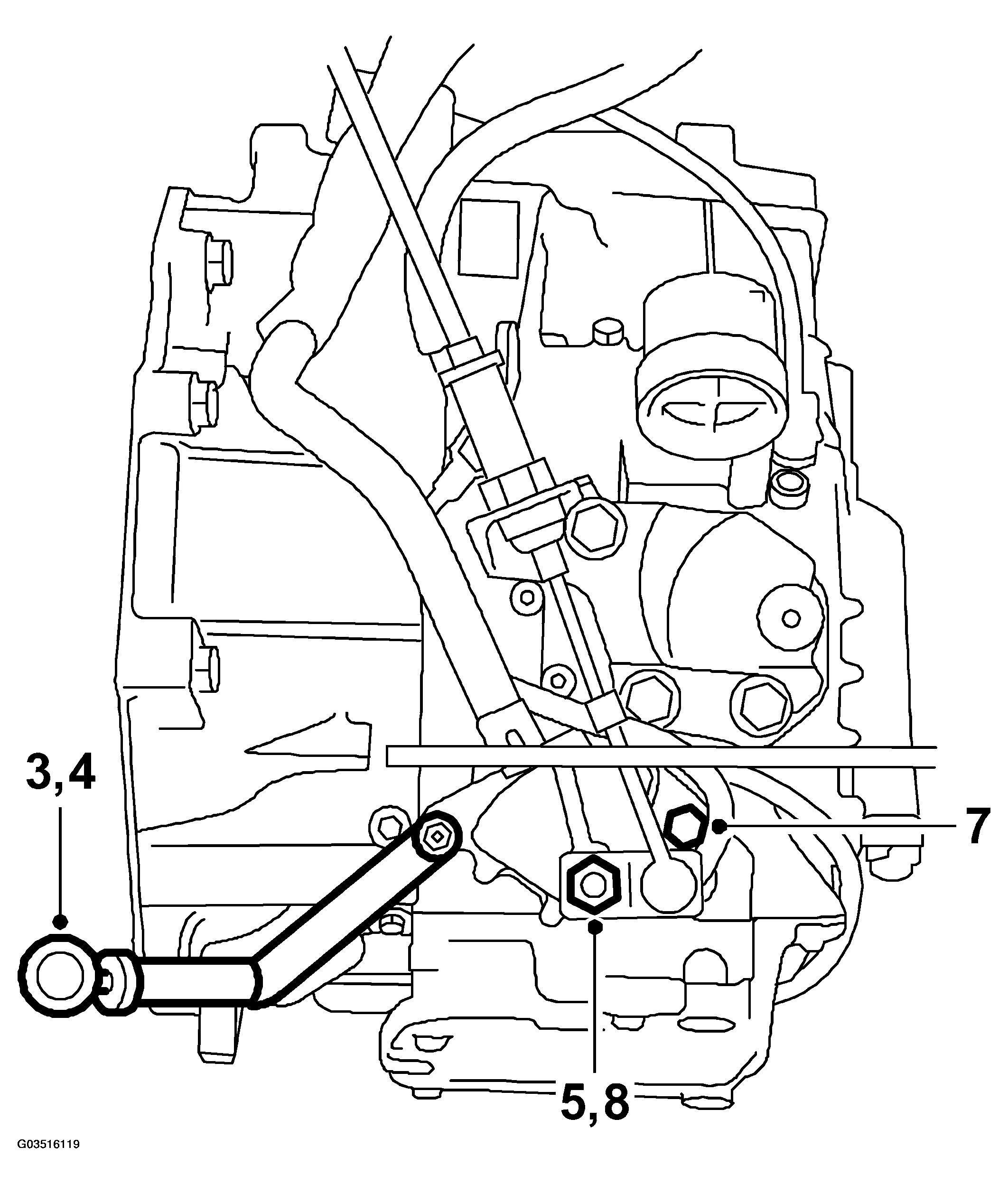

    Fig 2: Illustration For Steps 3-5, 7-8
    G03516119Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the fluid filler pipe.
  4. Move the selector lever to position 1 and undo the lever's retaining nut.
  5. Remove the lever.
  6. Remove the gear selector position sensor's retaining bolts.
  7. Remove the gear selector position sensor's nut.
  8. Unplug the connector and lift the sensor off the shaft.
